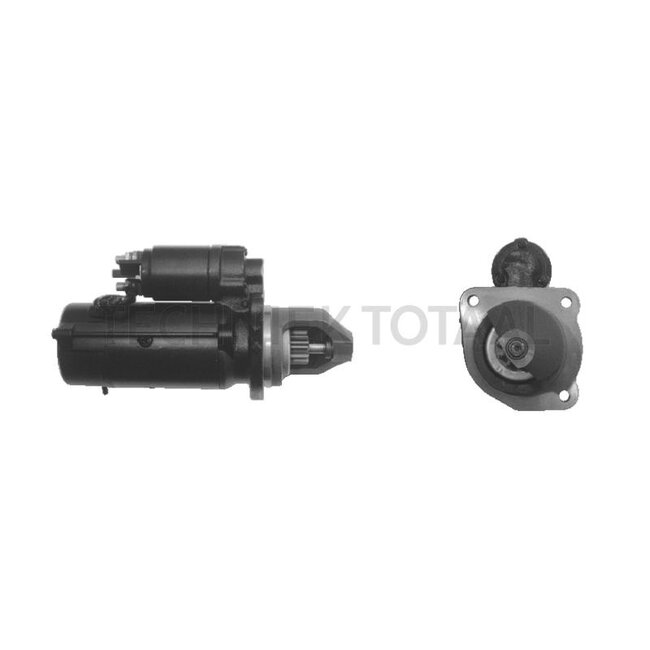

MAHLE Starter motor with reduction gear 24V 4.0 kW 10 teeth clockwise
Replaces: MS 242
Technical data:
- Nominal voltage (V): 24
- Nominal power (kW): 4.0
- No. of pinion teeth: 10
- Type: GR
- Spacing flange to flywheel (mm): 51.0
- Fitting Ø (mm): 89.0
- Holes / PCD (mm): 3 x 10.9 / 127.0
- Direction of rotation: clockwise
- Installation angle (°): r 45
