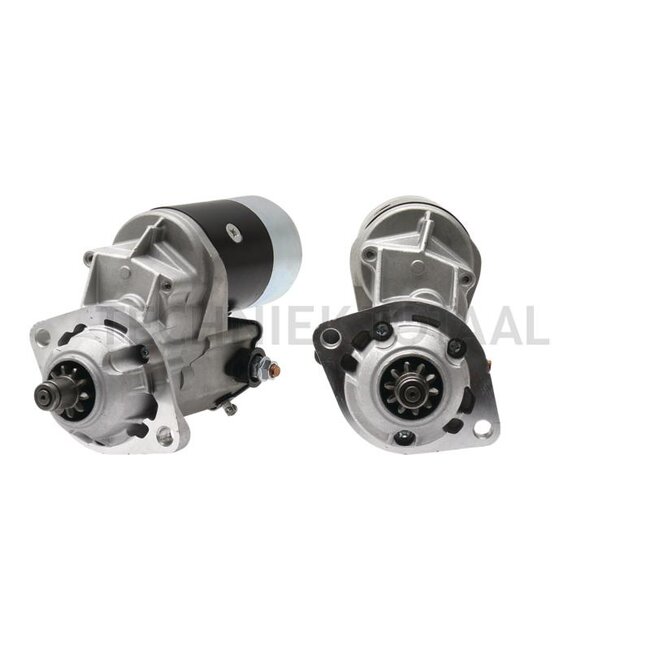

GRANIT Starter motor with reduction gear 24V 4.5 kW 10 teeth clockwise
Replaces: 114282, F032114282
Technical data:
- Nominal voltage (V): 24
- Nominal power (kW): 4.5
- No. of pinion teeth: 10
- Holes / PCD (mm): 2 x 11.0 / 127.0
- Spacing flange to flywheel (mm): 48.0
- Installation length (mm): 127.0
- Fitting Ø (mm): 88.5
- Installation angle (°): -
- Direction of rotation: clockwise
- Additional information: Connections: B+ (M10)
Suitable for:
JCB: 426 (Cummins 5.9L), 426E (Cummins QSB 6.7), 436 (Cummins BTAA 5.9), 436E (Cummins QSB 6.7)
