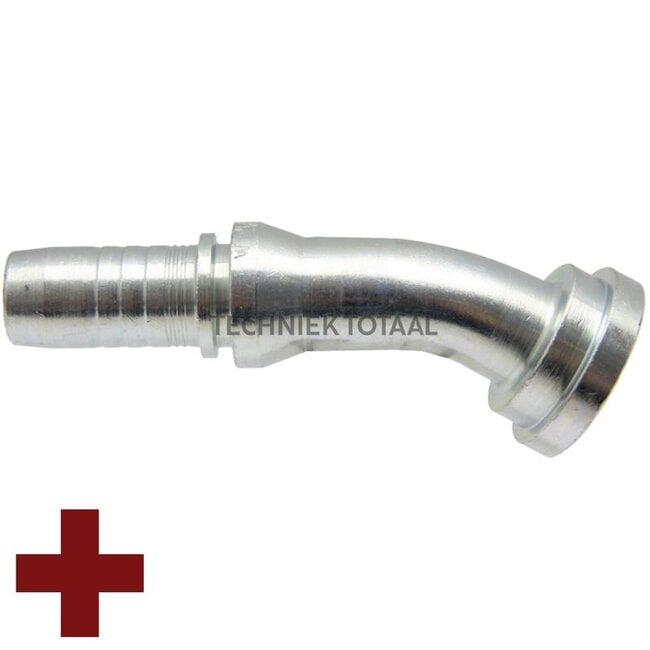

Manuli Swage fitting Spiralfit CAT SAE flange 1", 45°, DN 25

Swage fitting SPIRALFIT

Replaces: M83941-16-16

Technical data:

• Description: SAE flange, heavy, 45°
• B (mm): 19.5
• D (inches): 1"
• Nominal width: DN 25 - 1"
• Comparison no.: M83941-16-16
• A (mm): 98
• Flange: 1"
• S (mm): 14.3
• Series: 9000 PSI
• E (mm): 36.5
• D (mm): 47.7
• Type formula: SFS 45°
