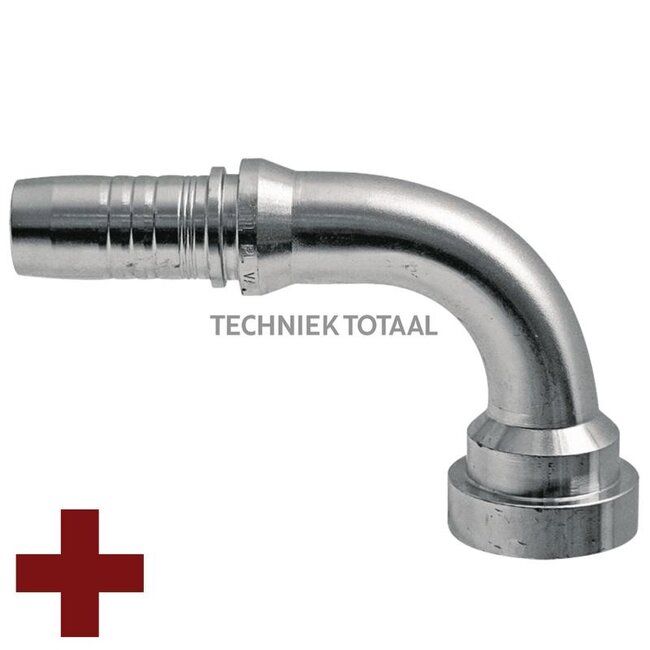

Manuli Swage fitting Spiralfit CAT SAE flange 1", 90°, DN 19

Swage fitting SPIRALFIT

Replaces: M83991-12-16

Technical data:

• Flange: 1"
• Nominal width: DN 19 - 3/4"
• Type formula: SFS 90°
• A (mm): 76
• Description: SAE flange, heavy, 90°
• Comparison no.: M83991-12-16
• B (mm): 19.5
• D (mm): 47.7
• E (mm): 69.5
• Series: 9000 PSI
• S (mm): 14.3
• D (inches): 1"
