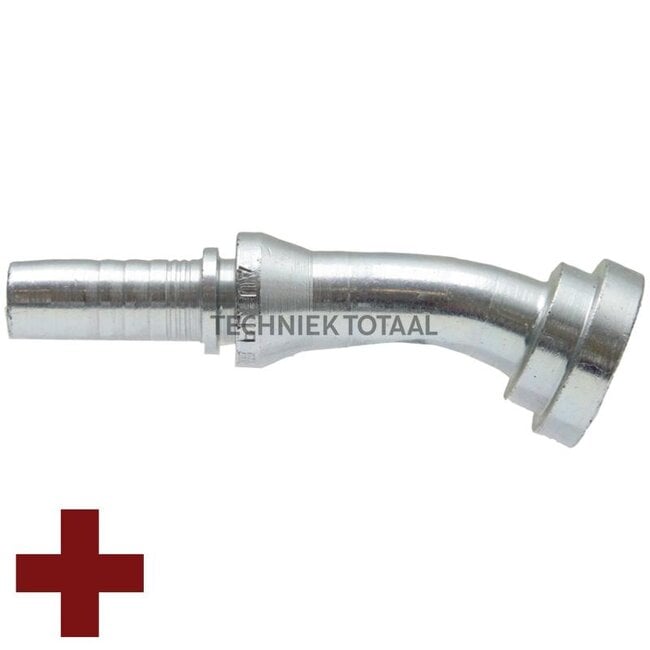

Manuli Swage fitting Spiralfit CAT SAE flange 1", 22°, DN 25

Swage fitting SPIRALFIT

Replaces: M83921-16-16

Technical data:

• Description: SAE flange, heavy, 22°
• Comparison no.: M83921-16-16
• S (mm): 14.3
• Nominal width: DN 25 - 1"
• B (mm): 19.5
• D (mm): 47.7
• D (inches): 1"
• Flange: 1"
• E (mm): 16.5
• Type formula: SFS 22°
• Series: 9000 PSI
• A (mm): 108.5
