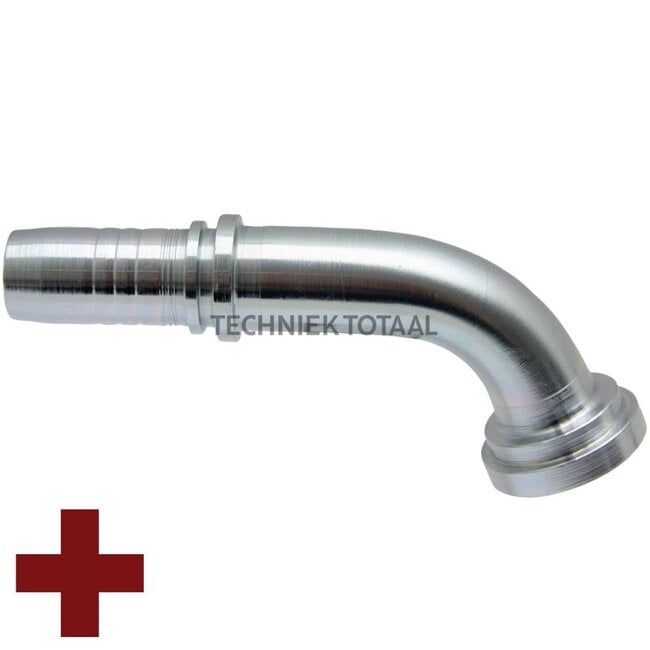

Manuli Swage fitting Spiralfit CAT SAE flange 1 1/2", 67.5°, DN 32

Swage fitting SPIRALFIT

Replaces: M83971-20-24

Technical data:

• Nominal width: DN 32 - 1 1/4"
• Comparison no.: M83971-20-24
• E (mm): 71.5
• Type formula: SFS 67.5°
• Description: SAE flange, heavy, 67.5°
• S (mm): 14.3
• D (mm): 63.7
• B (mm): 32
• A (mm): 117.5
• D (inches): 1 1/2”
• Flange: 1 1/2”
• Series: 9000 PSI
