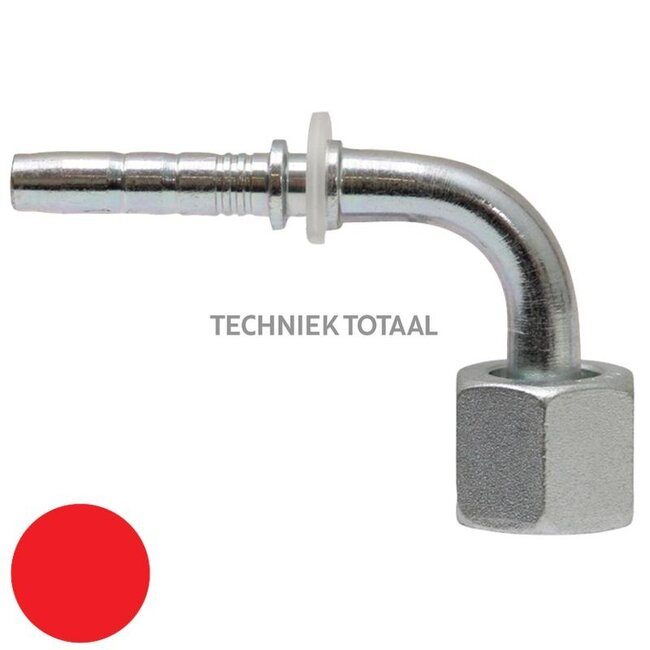

Manuli Swage fitting Spiralfit heavy cone with O-ring M36 x 2, 90°, DN 19

Swage fitting SPIRALFIT

Replaces: M81693-12-36

Technical data:

• H2 (mm): 41
• T: M36 x 2
• Pipe (mm): 25
• E (mm): 67.5
• A (mm): 68
• Nominal width: DN 19 - 3/4"
• C (mm): 3.4
• Comparison no.: M81693-12-36
• B (mm): 14.5
