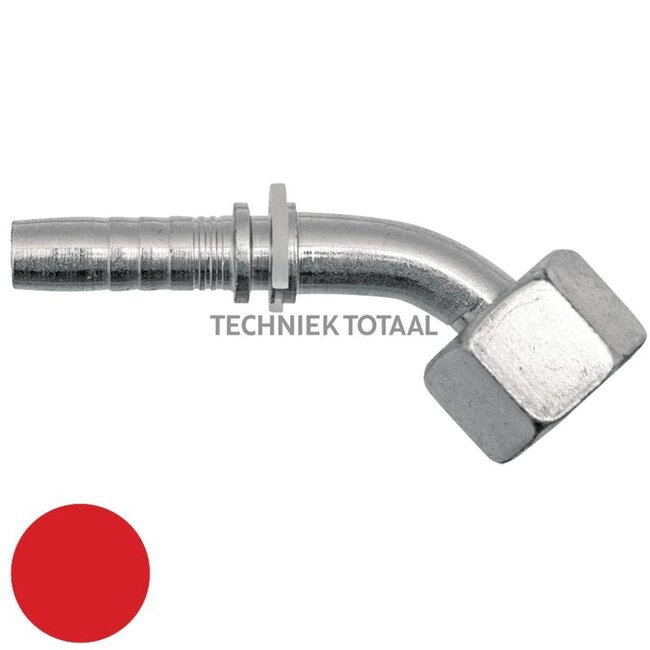

Manuli Swage fitting Spiralfit heavy cone with O-ring M36 x 2, 45°, DN 19

Swage fitting SPIRALFIT

Replaces: M81643-12-36

Technical data:

• Comparison no.: M81643-12-36
• Pipe (mm): 25
• E (mm): 33.5
• B (mm): 14.5
• H2 (mm): 41
• T: M36 x 2
• C (mm): 3.4
• A (mm): 82
• Nominal width: DN 19 - 3/4"
