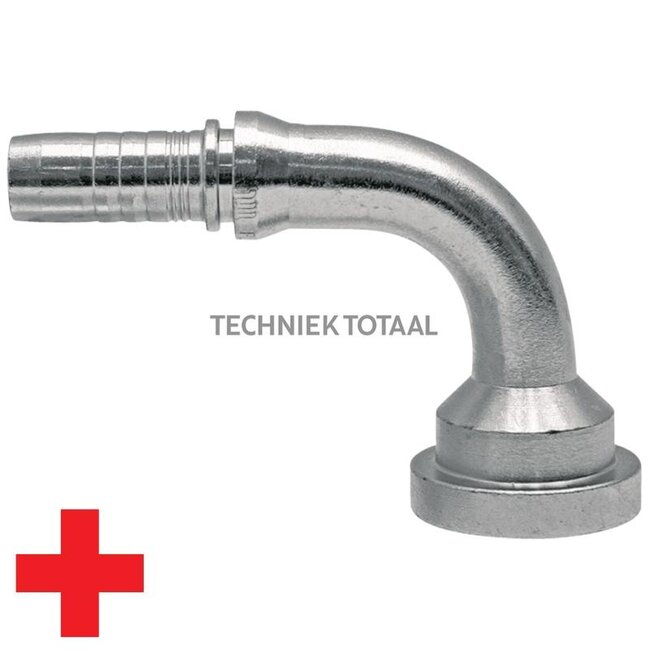

Manuli Swage fitting Spiralfit heavy SAE flange 3/4", 90°, DN 25

Swage fitting SPIRALFIT

Replaces: M83691-16-12

Technical data:

• D (inches): 3/4”
• Type formula: SFS 90°
• Flange: 3/4”
• B (mm): 16
• E (mm): 62
• Description: SAE flange, heavy, 90°
• Nominal width: DN 25 - 1"
• A (mm): 82
• Comparison no.: M83691-16-12
• Series: 6000 PSI
• D (mm): 41.4
