GRAMMER Maximo Dynamic DDS
MSG95AL/741
Technical data:
- Lordosenstütze: Pneumatic, 2-way
- Joystick console: Yes
- Restraint system: Optional
- Upholstery type: Fabric
- Suspension: Air suspension

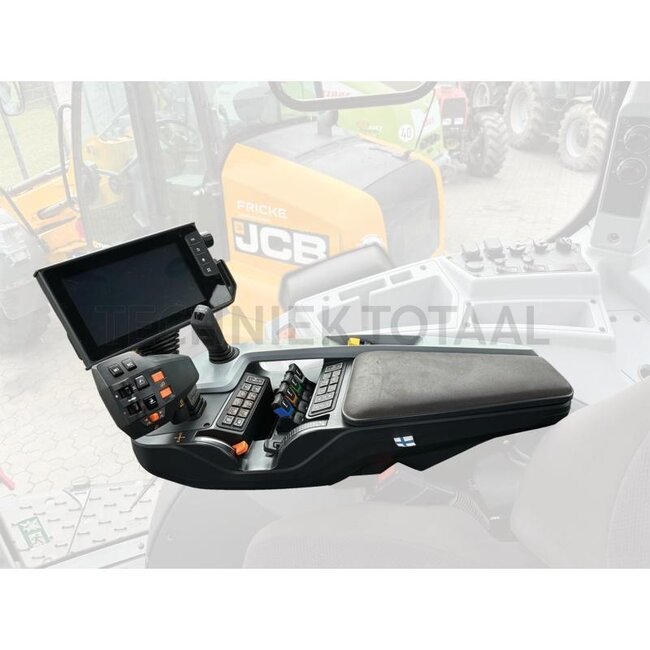

- Included in delivery: Seat supplied with seat contact switch and bracket for your existing control armrest. The bracket can be used to mount your existing control armrest on new seats. The image shows a control armrest that fits this seat (not included).
- Seat type: MSG95AL/741
- To fit: Valtra

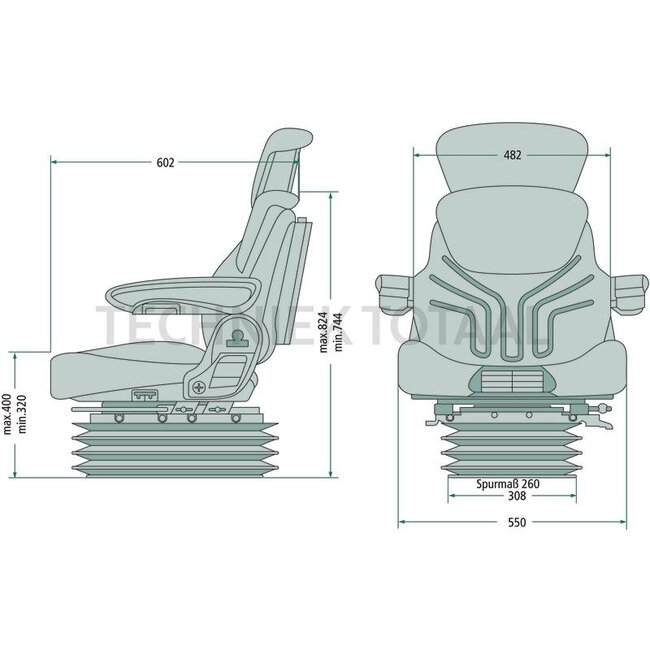

- Seat width (mm): 550
- Seat heater: Yes
- Armrest: Yes
- On-board voltage (V): 12
- Length (mm): 631
- Seat contact switch: Yes
- Version: The Maximo Dynamic with Dynamic Damping System sets the standard for seats with passive suspension for medium and large tractors. The automatic weight adjustment, automatic damper and pneumatic lumbar support in combination with the wide cushions ensure high seating and operating comfort.
- Rückenverlängerung: Yes
- Side horizontal suspension: Yes
- Height (mm): 744 → 824
- Fore/aft isolator: Yes
- Rotation: Yes
- Track gauge (mm): 260
- • Super comfort seat with 12V compressor and low-frequency air suspension with DDS • Storage pocket • APS: automatic positioning system • Armrests, height adjustable and folding 80 mm x 380 mm, tilt adjustable • DDS: Dynamic Damping System • Swivel adaptor 20° left/right • Suspension travel 120 mm • Automatic weight adjustment • Height adjustment 80 mm, continuous (air-assisted) • Longitudinal adjustment 210 mm • Fore/aft isolator • Pneumatic lumbar support • Backrest tilt adjustment • Retractable back extension • Side horizontal suspension • Seat heater • Seat cushion depth and tilt adjustment • Seat cushion width 550 mm • Seat contact switch
Suitable for:
Valtra-Valmet: N104, N114, N124, N134, N154, N174, N135, N155, N175, Q225, Q245, Q265, Q285, Q305
