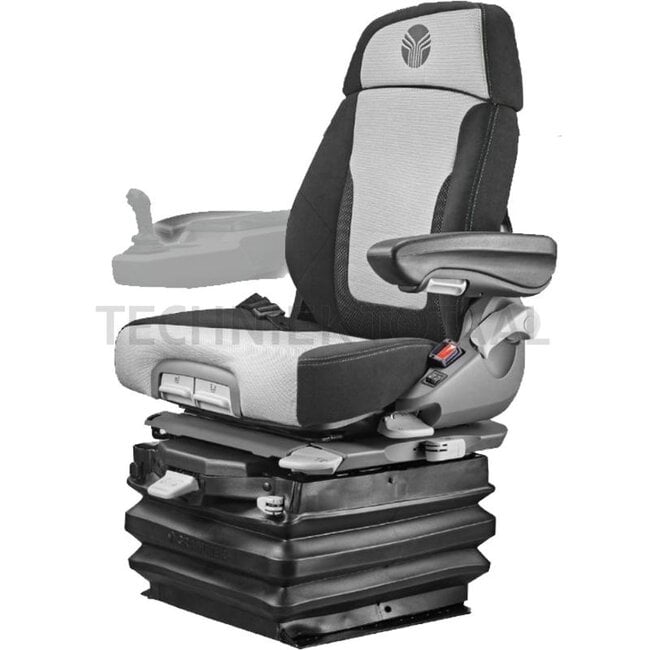

GRAMMER Maximo Dynamic Plus

MSG95AL/741

Technical data:

• Seat heater: Yes
• Lordosenstütze: Pneumatic
• Seat type: MSG95AL/741
• • Storage pocket • APS: automatic positioning system • Left armrest, 80 x 380 mm, tilt adjustable • Swivel adaptor 7.5° left/15° right • Air suspension with 12V compressor • Dynamic Damping System • Suspension travel 120 mm • Automatic weight adjustment • Height adjustment 80 mm, continuous (pneumatic) • Passive climate control system • Longitudinal adjustment 210 mm • Fore/aft isolator • Side horizontal suspension • Pneumatic lumbar support • Backrest tilt adjustment • Restraint system • Dualmotion back support • Seat cushion width 565 mm • 2-stage seat heater • Seat cushion depth and tilt adjustment • Dualmotion function (rotatable backrest extension)
• Length (mm): 648
• Rückenverlängerung: Yes
• Fore/aft isolator: Yes
• To fit: Fendt
• Version: In addition to the Dynamic Damping System, the Maximo Dynamic Plus also features the unique Dualmotion technology. The upper backrest rotates with the driver where required. Together with the swivel adaptor, this ensures perfect visibility and safe vehicle control when working in reverse, while at the same time providing optimum back support. Multifunction armrests can be connected using various adaptor plates.
• On-board voltage (V): 12
• Seat width (mm): 565
• Rotation: Yes
• Height (mm): 920
• Upholstery type: Fabric / new design

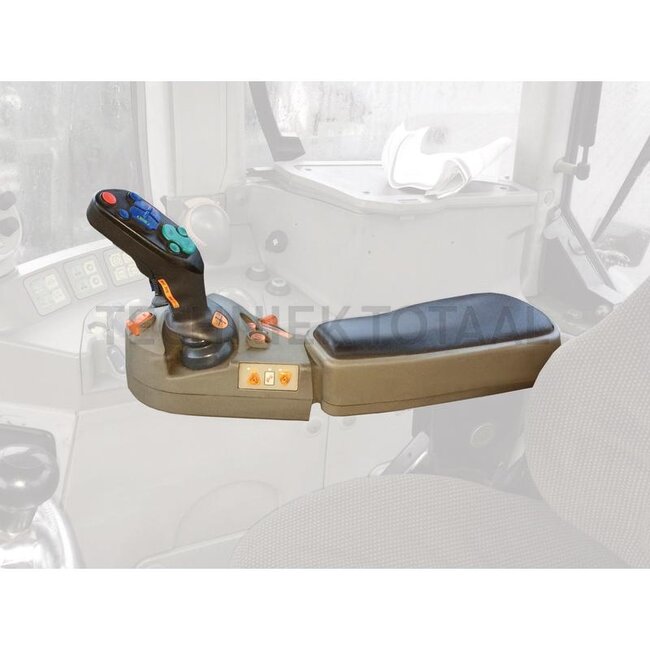

• Included in delivery: Seat supplied with seat contact switch and bracket for your existing control armrest. The bracket can be used to mount your existing control armrest on new seats. The image shows a control armrest that fits this seat (not included).
• Suspension: Air suspension
• Armrest: Yes
• Seat contact switch: Yes
• Side horizontal suspension: Yes
• Joystick console: Yes
• Track gauge (mm): 260
• Restraint system: Yes

Suitable for:

Fendt: Farmer 303 (Typ 152), Farmer 304 (Typ 158), Farmer 305 (Typ 162), Farmer 306 (Typ 168), Farmer 307 (Typ 117), Farmer 307 (Typ 170), Farmer 307 (Typ 175), Farmer 307 (Typ 307), Farmer 308 (Typ 118), Farmer 308 (Typ 178), Farmer 308 (Typ 308), Farmer 309 (Typ 119), Farmer 309 (Typ 186), Farmer 309 (Typ 309), Farmer 310 (Typ 192), Farmer 310 (Typ 310), Farmer 311 (Typ 198), Farmer 311 (Typ 311), Farmer 312 (Typ 199), Farmer 312 (Typ 312), Farmer 409 (Typ 409), Farmer 410 (Typ 410), Farmer 411 (Typ 411), Farmer 412 (Typ 412), Favorit 711 (Typ 711), Favorit 712 (Typ 712), Favorit 714 (Typ 714), Favorit 716 (Typ 716), Favorit 816 (Typ 816), Favorit 818 (Typ 818), Favorit 822 (Typ 822), Favorit 824 (Typ 824), Favorit 916 (Typ 916), Favorit 920 (Typ 920), Favorit 924 (Typ 924), Favorit 926 (Typ 926), Fendt 312 (Typ 325), Fendt 312 (Typ 352), Fendt 712 (Typ 712), Fendt 712 (Typ 724), Fendt 714 (Typ 714), Fendt 714 (Typ 725), Fendt 714 (Typ 732), Fendt 714 (Typ 738), Fendt 714 (Typ 760), Fendt 716 (Typ 716), Fendt 716 (Typ 726), Fendt 716 (Typ 733), Fendt 716 (Typ 739), Fendt 716 (Typ 761), Fendt 718 (Typ 727), Fendt 718 (Typ 734), Fendt 718 (Typ 740), Fendt 718 (Typ 762), Fendt 815 (Typ 715), Fendt 818 (Typ 718), Fendt 818 (Typ 729), Fendt 820 (Typ 731), Fendt 822 (Typ 833), Fendt 822 (Typ 839), Fendt 824 (Typ 834), Fendt 824 (Typ 840), Fendt 826 (Typ 835), Fendt 826 (Typ 841), Fendt 828 (Typ 836), Fendt 828 (Typ 842), Fendt 916 (Typ 916), Fendt 918, Fendt 920 (Typ 920), Fendt 922 (Typ 919), Fendt 924 (Typ 922), Fendt 924 (Typ 924), Fendt 924 (Typ 941), Fendt 926 (Typ 926), Fendt 927 (Typ 925), Fendt 927 (Typ 942), Fendt 927 (Typ 950), Fendt 930 (Typ 928), Fendt 930 (Typ 930), Fendt 930 (Typ 943), Fendt 930 (Typ 951), Fendt 930 (Typ 957), Fendt 933 (Typ 931), Fendt 933 (Typ 944), Fendt 933 (Typ 952), Fendt 933 (Typ 958), Fendt 936 (Typ 934), Fendt 936 (Typ 945), Fendt 936 (Typ 953), Fendt 936 (Typ 959), Fendt 939 (Typ 946), Fendt 939 (Typ 954), Fendt 939 (Typ 960), Xylon 520, Xylon 522, Xylon 524
