Ford 3055 tractor parts & technical data

Parts for the Ford 3055 from the Industrial series need to fit properly. Find more than 50 here, including electrics plus brake and transmission parts.

60 parts found for Ford 3055
Show:
HELLA Starter motor 12 V, 3,1 kW, 10 teeth, Ø 92 mm
€527,52 €435,97 €406,44 €335,90
You save 23%
Perkins Fuel filter outer-Ø 88 mm, inner-Ø 18 mm, height 72 mm
Perkins
Outer Ø: 88 mm. Inner Ø: 18 mm. Height: 72 mm. More
Outer Ø: 88 mm. Inner Ø: 18 mm. Height: 72 mm.
€20,09 €16,60
FEBI Engine oil filter Ø 107,67 mm, height 129,92 mm, thread 3/4"-16 UNF
€59,44 €49,12 €10,98 €9,07
You save 82%
Clutch plate 280 1", 10 splines Ford 2000 - 4600
Dimensions (mm): 1"" 10 grooves | Additional information: Made in Germany More
Dimensions (mm): 1"" 10 grooves | Additional information: Made in Germ...
€209,84 €173,42 €193,05 €159,55
You save 8%
Eaton Internal plate transmission Ford, New Holland, 136 g
Eaton
Reference no.: 81805123 More
Reference no.: 81805123
€34,32 €28,36
Gear wheel 3e gear 35 teeth Ford 2100, 2600, 3100, 3600
€148,71 €122,90 €136,81 €113,07
You save 8%
Eaton Taper transmission IHC, David Brown, Ford, New Holland
Eaton
Reference no.: 131311C91 More
Reference no.: 131311C91
€54,67 €45,18 €50,30 €41,57
You save 8%
Gear wheel reverse gear 31 teeth Ford 2100 - 7100
Number of teeth: 31 More
Number of teeth: 31
€41,92 €34,64 €38,57 €31,87
You save 8%
LUK Clutch plate 280USF 1 inch, 15 splines, organic Ford
LUK
Dimensions (inches): 1"" 15 grooves | Material specifications: Organic clutch lining More
Dimensions (inches): 1"" 15 grooves | Material specifications: Organic...
€213,33 €176,31 €196,26 €162,20
You save 8%
LUK Clutch plate 280TSFN 1 inch, 10 splines, organic Ford
LUK
Material specifications: Organic clutch lining | Dimensions (inches): 1"" 10 grooves More
Material specifications: Organic clutch lining | Dimensions (inches): ...
€266,11 €219,93 €244,82 €202,33
You save 8%
Clutch plate 280 1", 15 splines Ford 2000 - 4600
Dimensions (mm): 1"" 15 grooves | Additional information: Made in Germany More
Dimensions (mm): 1"" 15 grooves | Additional information: Made in Germ...
€382,07 €315,76 €351,50 €290,50
You save 8%
Clutch plate 280USF 1" 15 splines organic Ford 2000 - 4600
Additional information: Made in Germany | Dimensions (mm): 1"" 15 grooves | Material specifications: Organic clutch lining More
Additional information: Made in Germany | Dimensions (mm): 1"" 15 groo...
€168,80 €139,50 €155,30 €128,34
You save 8%
Thrust bearing 63,5 x 100 x 22 mm Ford, Massey Ferguson, New Holland
Dimensions (mm): 63.5 x 100 x 22 More
Dimensions (mm): 63.5 x 100 x 22
€37,69 €31,15 €34,67 €28,66
You save 8%
Elring Cylinder head gasket Ø 115 mm engine BSD442, BSD444, BSD444T
€68,17 €56,34 €62,72 €51,83
You save 8%
Eaton Sealing ring transmission Ford 2000 - 8010, 230 - 545
Eaton
Reference no.: E62-GE9 More
Reference no.: E62-GE9
€14,20 €11,74
Ball joint 92 mm, 1/2" x 20, 3/4" x 16 UNF, taper 14,8 - 15,8 mm
A: 92 mm. C: 1/2" x 20 mm. D: 3/4" x 16 UNF mm. E: 14,8 mm. F: 15,8 mm. Taper: 14,8 - 15,8 mm. More
A: 92 mm. C: 1/2" x 20 mm. D: 3/4" x 16 UNF mm. E: 14,8 mm. F: 15,8 mm...
€41,84 €34,58 €38,49 €31,81
You save 8%
Gear wheel 1e gear 46 teeth Ford 2100 - 7100
Number of teeth: 46 More
Number of teeth: 46
€72,34 €59,79 €66,55 €55,00
You save 8%
Gear wheel reverse gear 32 teeth Ford 2100, 2600, 3100, 3600
€52,08 €43,04 €47,91 €39,60
You save 8%

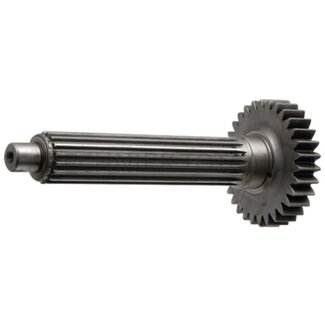

As transmission Ford 230 - 4110
€137,37 €113,53 €126,38 €104,45
You save 8%
Gear wheel intermediate shaft Ford 2100, 2600, 3100, 3600
€173,49 €143,38 €159,61 €131,91
You save 8%
LUK Clutch plate 280UKC 1 inch, 10 splines, Ford 230 - 5340
LUK
Dimensions (inches): 1"" 10 grooves | Material specifications: Sintered clutch lining More
Dimensions (inches): 1"" 10 grooves | Material specifications: Sintere...
€211,24 €174,58 €194,34 €160,61
You save 8%
LUK Single clutch 280 Ford 230 - 4410
€407,07 €336,42 €374,50 €309,51
You save 8%
Gear wheel 2e gear Ford 2100, 2600, 3100, 3600
€726,62 €600,51 €668,49 €552,47
You save 8%
LUK Double clutch 280/225SBA3 44 x 48 mm, 29 splines Ford
LUK
Flywheel dimension (mm): 43,7 (tief) | Dimensions (mm): 44 x 48 29 grooves More
Flywheel dimension (mm): 43,7 (tief) | Dimensions (mm): 44 x 48 29 gro...
€775,13 €640,60 €713,12 €589,36
You save 8%
Clutch plate single clutch Ford 3000 - 3610
Additional information: Made in Germany More
Additional information: Made in Germany
€317,05 €262,02 €291,69 €241,06
You save 8%
LUK Thrust bearing 63,5 x 100 x 22 mm Ford, Massey Ferguson, New Holland
LUK
Dimensions (mm): 63.5 x 100 x 22 More
Dimensions (mm): 63.5 x 100 x 22
€62,34 €51,52 €57,35 €47,40
You save 8%
LUK Single clutch 280SBFO 4 lever Ford
€407,96 €337,16 €375,32 €310,18
You save 8%
Eaton Shift ring 616 g Case IH, Ford, New Holland, Steyr
Eaton
Reference no.: E6NN7106AA More
Reference no.: E6NN7106AA
€119,82 €99,02 €110,23 €91,10
You save 8%
Eaton Locking switch transmission Ford, New Holland
Eaton
Reference no.: C7NN7A247A More
Reference no.: C7NN7A247A
€143,31 €118,44 €131,85 €108,96
You save 8%
HELLA Starter motor 12 V, 2,8 kW, 10 teeth, Ø 92 mm, clockwise
€504,14 €416,64 €388,44 €321,02
You save 23%
Layshaft Ford 230 - 4110
€559,74 €462,60 €514,96 €425,59
You save 8%
Clutch plate single clutch 1 7/8 inch 29 splines Ford
Additional information: Made in Germany | Dimensions (mm): 1 7/8"" 29 grooves More
Additional information: Made in Germany | Dimensions (mm): 1 7/8"" 29 ...
€346,72 €286,55 €318,98 €263,62
You save 8%
Eaton Gear wheel transmission Ford, New Holland
Eaton
Reference no.: E0NN7106BA More
Reference no.: E0NN7106BA
€154,42 €127,62 €142,07 €117,41
You save 8%
Silencer Ford 2000-2610, 3000-3610
€108,61 €89,76 €99,92 €82,58
You save 8%

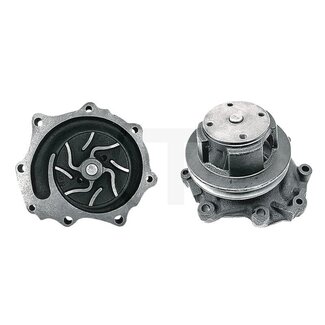

Water pump with pulley and seal Ford 2300-7710
To fit as: Ford 2000, 3000, 4000, 5000, 7000, 2100, 3100, 4100, 5100, 7100, 4200, 5200, 7200, 3400, 4400, 3500, 4500, 2600, 3600, 4600, 5900, 2300, 23... More
To fit as: Ford 2000, 3000, 4000, 5000, 7000, 2100, 3100, 4100, 5100, ...
€78,41 €64,80 €72,14 €59,62
You save 8%
MAHLE Starter motor 12 V, 3,1 kW, 10 teeth, clockwise, mounting Ø 92,0 mm
€530,00 €438,02 €317,44 €262,35
You save 40%
Crankshaft seal Ø 60 x 83 x 11,5 mm Ford, New Holland
Outer Ø: 83 mm. Width: 11,5 mm. Inner Ø: 60 mm. More
Outer Ø: 83 mm. Width: 11,5 mm. Inner Ø: 60 mm.
€7,93 €6,55
Gear lever knob Ø 35 mm, thread 5/16 inch UNF Ford, New Holland
Version: Ø 35 mm, thread 5/16" UNF. More
Version: Ø 35 mm, thread 5/16" UNF.
€16,85 €13,93
V-belt Ford, Fendt, Massey Ferguson
Reference no.: S.11169. More
Reference no.: S.11169.
€7,44 €6,15
Tank cap tank collar Ø 60 mm
Filler neck Ø: 60 mm. More
Filler neck Ø: 60 mm.
€22,28 €18,41
Crankshaft seal rear Ø 122,17 x 140,82 x 12 mm
Outer Ø: 140,82 mm. Width: 12 mm. Inner Ø: 122,17 mm. More
Outer Ø: 140,82 mm. Width: 12 mm. Inner Ø: 122,17 mm.
€67,13 €55,48 €61,76 €51,04
You save 8%
Radiator cap Ø 58 mm, height 25 mm, 0,7 bar
Neck Ø: 58 mm. Height: 25 mm. Opening pressure: 0,7 bar. More
Neck Ø: 58 mm. Height: 25 mm. Opening pressure: 0,7 bar.
€9,88 €8,16
Showing 1 - 48 of 60

Ford 3055 parts for clutch, engine and transmission

The Ford 3055 belongs to the Ford Industrial range, tractors made to graft, often with a loader on the front or working around a contractor yard. The clutch takes the brunt of that work, with constant gear changes and pulling away under load. This page covers more than 50 parts that fit the 3055, from GRANIT and from makers such as LUK, Eaton, FLEETGUARD and HELLA.

Rebuilding the clutch

For the clutch there are clutch plates, single clutch cover assemblies and thrust bearings. If the tractor is already split, replace the plate, cover and thrust bearing together. The thrust bearing is the smallest item on the job and the first to start whining if the old one stays in. Check the flywheel for scoring and heat spots, count the splines on the input shaft and compare them with the hub of the plate, and reset the pedal play once it is back together. A clutch pedal with no play at all wears out the thrust bearing very quickly.

While you are in there, look at the rear crankshaft seal as well. If it weeps, oil reaches the new clutch plate and it will slip no matter how carefully everything else was fitted. With the tractor already split, changing the seal adds very little time to the job, so do it at the same time.

Engine and cooling

  • Starter motors for an engine that is reluctant to fire.
  • Water pumps supplied with pulley and gasket.
  • Engine oil filters, including FLEETGUARD, and a fuel feed pump.
  • Crankshaft seals and valve stem seals against oil leaks and oil consumption.
  • Connecting rod bolts and nuts for a bottom end rebuild.
  • A silencer and seals for the fuel side.

Always use new connecting rod bolts and nuts on a rebuild. They are tightened close to their limit, and a bolt that has already stretched once can fail in service. Tighten them in stages to the figure specified for the engine.

Transmission

Gear wheels are available for the transmission. When you replace one, inspect its mating gear and the bearings as well, because a worn partner will soon make a new gear noisy again.

Finding the part that fits

On a tractor that has been through a few owners, it always pays to check the type plate and compare the reference number on the old part. With clutch plates, also count the splines and measure the hub, since two plates with the same outside size can have different splines. With the water pump, include the gasket in the comparison. For other tractors from the brand, head to Ford parts.
