Renault 681 tractor parts & technical data

A Renault 681 deserves parts that really fit. That is why this page gathers more than 70 items matched to this model, so you can choose with confidence.

84 parts found for Renault 681
Show:
Piston ring set 4 rings, Ø 100 mm, 3/2/2/4 mm Renault, Fendt
Dimensions: 4 rings, Ø 100 mm, 3 mm (trapezoidal ring) / 2 mm / 2 mm / 4 mm. More
Dimensions: 4 rings, Ø 100 mm, 3 mm (trapezoidal ring) / 2 mm / 2 mm ...
€37,10 €30,66 €34,13 €28,21
You save 8%
Oil pump line-Ø 27 mm Renault, Fendt
Dimensions: Pipe Ø 27 mm. More
Dimensions: Pipe Ø 27 mm.
€602,33 €497,79 €554,14 €457,97
You save 8%
Stabilizer strut 690 mm, 24 x 3 mm, 22 mm Renault series R
d: 22 mm. h: 35 mm. D: 24 x 3 mm. L: 690 mm. L1: 580 mm. Dimensions: 690 mm. More
d: 22 mm. h: 35 mm. D: 24 x 3 mm. L: 690 mm. L1: 580 mm. Dimensions: 6...
€140,15 €115,83 €128,94 €106,56
You save 8%
Tube 585 mm Renault 351-851, 58-12 - 90-34
Dimensions: Length: 585 mm. More
Dimensions: Length: 585 mm.
€32,51 €26,87
Tube 350 mm Renault 681-851
Dimensions: Length: 350 mm. More
Dimensions: Length: 350 mm.
€27,06 €22,37
Lift rod 530 - 750 mm, ball joint Ø 28 mm Renault 681-851
Dimensions: Length = 530 - 750, Ball joint Ø 28 mm. More
Dimensions: Length = 530 - 750, Ball joint Ø 28 mm.
€194,19 €160,49 €178,65 €147,65
You save 8%
Yoke Ø 20 mm, width 20 mm Renault 681-851
Dimensions: Ø = 20, Width = 20 mm. More
Dimensions: Ø = 20, Width = 20 mm.
€43,40 €35,87 €39,93 €33,00
You save 8%
Gas strut rear window 130 N, 500 mm Fiat Series 88, Renault 681-751
suitable for: Heckscheibe. Newtons: 130. A: 500 mm. B: 255 mm. C: 8 mm. D: 8 mm. Form: 1. To fit: rear screen. More
suitable for: Heckscheibe. Newtons: 130. A: 500 mm. B: 255 mm. C: 8 mm...
€46,34 €38,30 €42,63 €35,23
You save 8%
Cut-out switch starter motor M16 x 1, 2 connections
Version: Contact function, Thread: M16 x 1, 2 blade terminals. More
Version: Contact function, Thread: M16 x 1, 2 blade terminals.
€42,30 €34,96 €38,92 €32,16
You save 8%

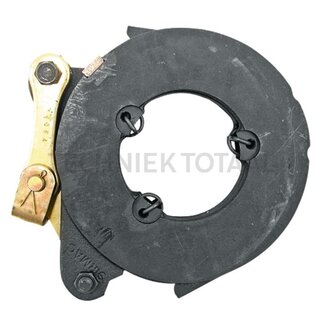

Brake mechanism Ø 165 mm Renault Ares 720, 351-951
€193,52 €159,93 €178,04 €147,14
You save 8%
Brake disc Ø 165 mm, thickness 13 mm, 37 teeth Renault 351-951, Ares 720
Radiator hose, top inner-Ø 40 mm, length 90 mm Renault
Inner Ø: 40 mm. Length: 90 mm. More
Inner Ø: 40 mm. Length: 90 mm.
€21,38 €17,67

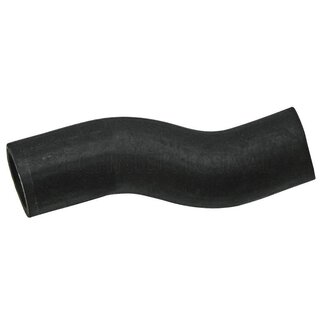

Radiator hose, top thermostat inner-Ø 23 mm Renault
€33,31 €27,53
Exhaust manifold exhaust Renault 351-851, 58-12 - 85-14
€108,21 €89,43 €99,55 €82,28
You save 8%
Piston set, complete 4 rings, Ø 100 mm, piston pin Ø 32 x 82 mm
Dimensions: 4 rings, Ø 100 mm, Gudgeon pin Ø 32 x 82 mm, Combustion chamber Ø 56 mm, Combustion chamber depth 18.9 mm. Description: Supplied withou... More
Dimensions: 4 rings, Ø 100 mm, Gudgeon pin Ø 32 x 82 mm, Combustion ...
€191,95 €158,64 €176,59 €145,95
You save 8%
Thrust bearing standard Ø 65 mm Fendt, Renault
Dimensions: Ø 65 mm. More
Dimensions: Ø 65 mm.
€114,66 €94,76
Main bearing standard Ø 70 mm Fendt, Case IH, Renault, Steyr
€35,16 €29,06 €32,35 €26,73
You save 8%
Connecting rod bush outer-Ø 38 mm, inner-Ø 32 mm Fendt, Renault
€34,57 €28,57 €31,80 €26,28
You save 8%
Piston set, complete 4 rings, Ø 100 mm, piston pin Ø 35 x 82 mm
Dimensions: 4 rings, Ø 100 mm, Gudgeon pin Ø 35 x 82 mm, Combustion chamber Ø 56 mm, Combustion chamber depth 19.1 mm. Description: Supplied withou... More
Dimensions: 4 rings, Ø 100 mm, Gudgeon pin Ø 35 x 82 mm, Combustion ...
€288,27 €238,24 €265,21 €219,18
You save 8%
Oil sump gasket 4 cylinder Renault 651-904, Ceres 65-95
€41,06 €33,93 €37,78 €31,22
You save 8%
Stabilizer strut 560 mm, Ø 22 mm, M24 x 3 mm Renault
d: 22 mm. h: 35 mm. D: 24 x 3 mm. L: 560 mm. L1: 460 mm. Dimensions: 560 mm. More
d: 22 mm. h: 35 mm. D: 24 x 3 mm. L: 560 mm. L1: 460 mm. Dimensions: 5...
€58,26 €48,15 €53,60 €44,30
You save 8%
Spindle three-point without thread Ø 18 mm, ball-Ø 22,5 mm Renault
Dimensions: Ø = 18, Ball Ø = 22.5 mm. More
Dimensions: Ø = 18, Ball Ø = 22.5 mm.
€57,07 €47,17 €52,50 €43,39
You save 8%
Lift rod 530 - 750 mm, ball joint-Ø 22 mm Renault 681-851
Dimensions: Length = 530 - 750, Ball joint Ø = 22 mm. More
Dimensions: Length = 530 - 750, Ball joint Ø = 22 mm.
€216,18 €178,66 €198,89 €164,37
You save 8%
LUK Pilot bearing 17 x 40 x 12 mm
LUK
Dimensions: 17 x 40 x 12 mm. Menke no.: 96442. More
Dimensions: 17 x 40 x 12 mm. Menke no.: 96442.
€25,10 €20,74
Connecting rod bearing standard, Ø 58 mm Fendt, Renault
Dimensions: Ø 58 mm. Menke no.: 59703. More
Dimensions: Ø 58 mm. Menke no.: 59703.
€27,29 €22,55
Feed pump 2 hole, hole spacing 53 mm, flange 52 mm Renault, Fendt
Version: 2 holes, Hole spacing: 53 mm, Flange to lever end: 52 mm. To fit: Renault. More
Version: 2 holes, Hole spacing: 53 mm, Flange to lever end: 52 mm. To ...
€50,32 €41,59 €46,29 €38,26
You save 8%
Tube 466 mm Renault 351-851, 58-12 - 90-34
Dimensions: Length: 466 mm. More
Dimensions: Length: 466 mm.
€79,92 €66,05 €73,53 €60,77
You save 8%
Pin Ø 22 mm Renault 351-851
Dimensions: Ø: 22 mm. More
Dimensions: Ø: 22 mm.
€21,63 €17,87
KS Connecting rod bearing Ø 63 mm, width 27 mm
€64,09 €52,97 €58,96 €48,73
You save 8%
Main bearing standard Ø 65 mm Fendt, Renault
Dimensions: Ø 65 mm. More
Dimensions: Ø 65 mm.
€55,32 €45,72 €50,89 €42,06
You save 8%
Connecting rod bearing standard, Ø 63 mm
Dimensions: Ø 63 mm. More
Dimensions: Ø 63 mm.
€36,88 €30,48 €33,93 €28,04
You save 8%
Showing 49 - 84 of 84

Engine, linkage and cab parts for the Renault 681

A Renault 681 has often been on the same farm for decades, and its upkeep usually happens in the farm workshop. This page supports exactly that kind of work with more than 70 parts that fit the 681, from GRANIT, LUK, KS and Bosch/Rexroth among others.

Inside the engine

For an engine rebuild you will find pistons with cylinder liners, piston ring sets, connecting rod bearings and bushes, main bearings and a cylinder head gasket set. A radiator hose for the top of the thermostat closes up the cooling circuit again.

Measure the crankshaft journals before ordering bearings. Connecting rod bearings come in standard size and in undersizes for a reground crank, and the back of the old shells usually shows whether the shaft has been ground before. Fit standard shells to an undersize crank and you end up with too much clearance and no oil pressure.

Three-point linkage, steering and cab

  • Lift rods, three-point spindles and stabilizer struts to take the slack out of the linkage.
  • Seals for the hydraulics.
  • Ball joints and tubes for the steering.
  • A clutch plate with torsion damper.
  • Gas struts for the cab door.

If an implement hangs crooked behind the 681, start with the lift rod and its spindle. Set both lift rods to the same length before hitching up, then fine tune. Stabilizer struts hold the lower links sideways: leave a little play for ploughing, and set them tighter for a drill or rotavator. Check the ball joints at the ends while you are at it, because play there undoes the benefit of a new strut.

Several of these parts are made for the group from the 681 up to the 851, or from the 301 up to the 751, which is shown with each product.

Checking before you order

Use the data plate to confirm that the tractor is a 681, then compare the number on the old part with the product details. For a clutch plate, count the splines on the shaft. For a lift rod, check the size of the ball joint.

Other Renault tractors from the R range

The 681 shares its range with a number of other Renault models, several of which have their own page:

The Renault 77-12 and 85-34 belong to the same range. For those and everything else from the brand, start at the overview of Renault parts.
