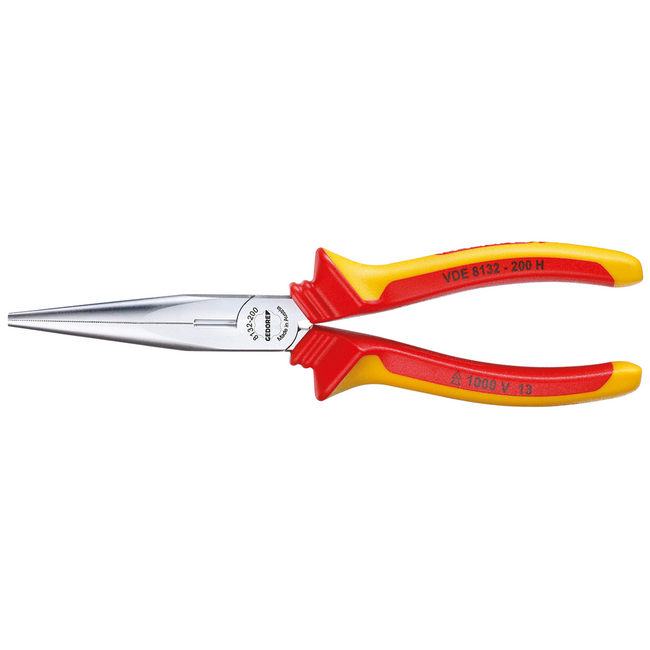

Straight 200 mm VDE needle-nose pliers with serrated half-round jaws and cutting edges, sleeve-insulated to IEC 60900 for work up to 1000 V.

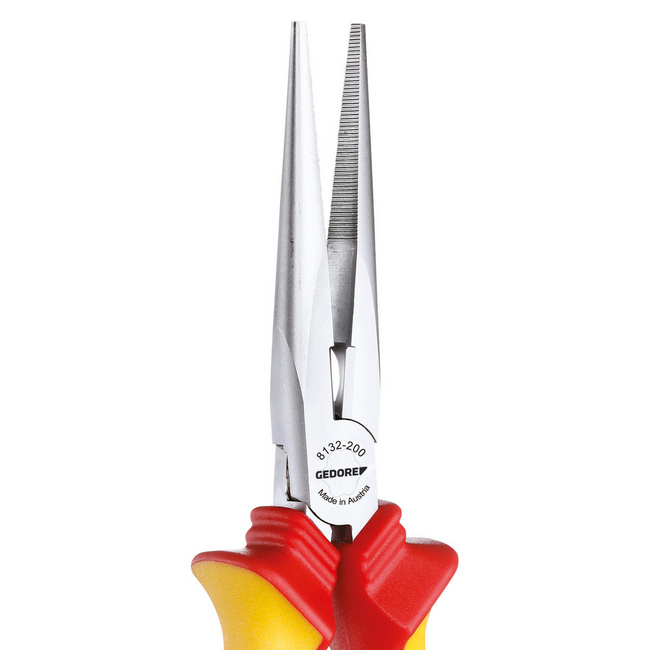

• Long, flat-round jaws, straight gripping faces, serrated
• For holding, gripping, bending and cutting
• Induction-hardened precision cutting edges, hardness 61 - 63 HRC
• GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed
• Handles with VDE insulating sleeves up to 1000 V, acc. to EN 60900/IEC 60900

Technical data

• Item number: VDE 8132-200 H
• EAN: 4010886816028
• Total length: 200 mm
• Total width: 55 mm
• Total height: 27 mm
• Weight: 0.235 kg
• 1000 V insulated: yes
• VDE certified: yes
• Material: Heat-treated steel
• Width of head 1: 18.5 mm
• Surface: chrome-plated
• Standard: DIN ISO 5745 EN 60900/IEC60900
• Handle design: 2-component grips VDE insulated up to 1000 V
• Cutting values: Hard wire: 2.2 mm / 11 AWG Medium hard wire: 3.2 mm / 8 AWG
• Hardness of cutting edge: 61-63 HRC
• Jaw length L3: 75.7 mm
• Head Thickness T1: 9.5 mm
• Tip Width W4: 3.7 mm
• Thickness of point: 2.8 mm
• With cutting edge: yes
