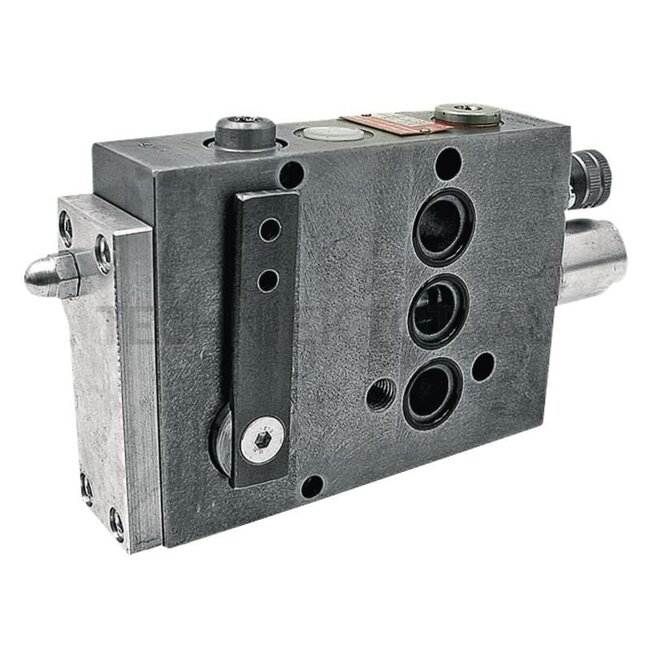

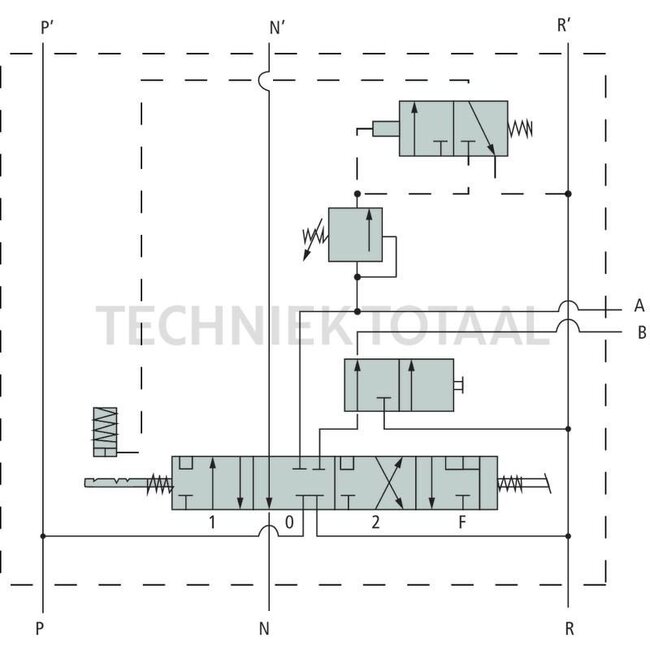

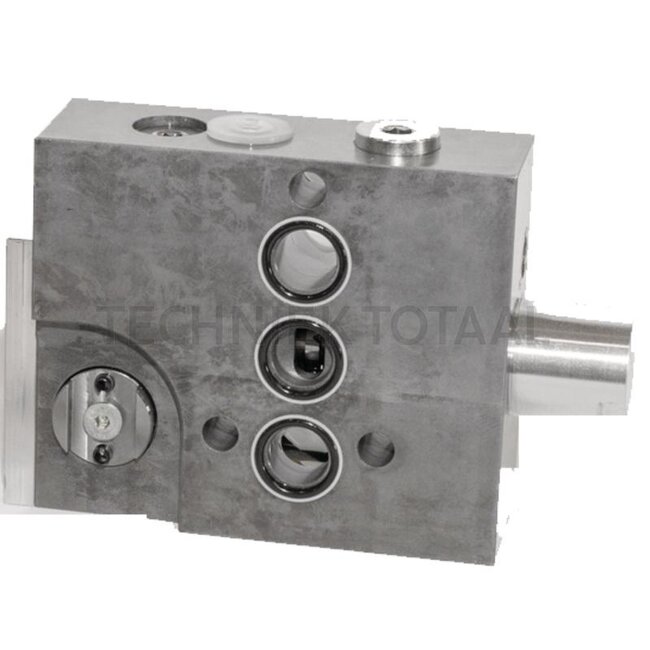

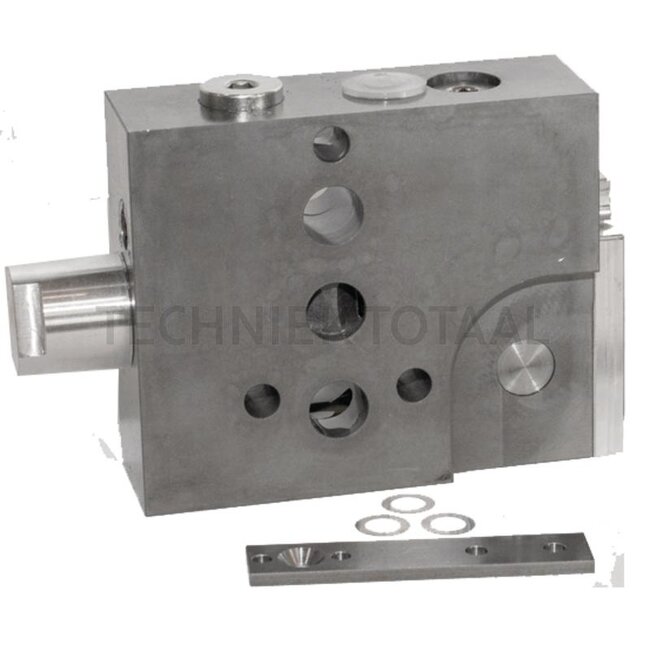

Control unit This auxiliary control unit is a four-position device that can be used for double- and single-acting lifting cylinders. It has gate-sealed consumer connections A and B. This means extremely low internal leakage rates under high loads. The consumer connections A and B can be found on the top and bottom of the housing. The device has a detent position in the lifting position that is equipped with an automatic hydraulic limit switch, and that releases at 180 bar. When switching via the lowering position, the locked float position is engaged. This cannot be unlocked hydraulically (consumer connections A and B are connected to the return line). The float position can be used on double- and single-acting lifting cylinders as locked lowering position. The auxiliary control unit can be switched from double- to single-acting and vice versa. This is also possible during operation.
Technical data: Max. operating pressure: 220 bar
Nominal flow rate: max. 60 l/min.
Tightening torque: 30 Nm
Connections: M18 x 1.5
Dimensions: 130 x 220 x 50 mmConnection thread: M18 x 1,5Operating pressure max. (bar): 220Fixing bolt tightening torque Nm: 30Nominal flow rate (l/min.): 60
Passend voor:
Deutz-Fahr: 19139, 04358546, Serie 07C, D 4507C, D 4807C, D 5207C, D 6007C, D 6207C, D 6507C, D 6807C, D 6907C, D 7007C, D 7207C, D 7807C, Serie AgroPrima, AgroPrima 4.31, AgroPrima 4.51, AgroPrima 4.56, AgroPrima 6.06, AgroPrima 6.16, Serie AgroXtra, AgroXtra 3.57, AgroXtra 4.07, AgroXtra 4.17, AgroXtra 4.47, AgroXtra 4.57, AgroXtra 6.07, AgroXtra 6.17, Serie DX, DX 80, DX 85, DX 86, DX 90, DX 92, DX 110, DX 120, DX 145, DX 160, Serie DX 3, DX 3.10, DX 3.30, DX 3.50, DX 3.60, DX 3.65, DX 3.70, DX 3.80, DX 3.90, Serie DX 3 SC, DX 3.10 SC, DX 3.30 SC, DX 3.50 SC, DX 3.60 SC, DX 3.65 SC, DX 3.70 SC, DX 3.80 SC, DX 3.90 SC, Serie DX 4, DX 4.10, DX 4.30, DX 4.50, DX 4.70, Serie DX 6, DX 6.05, DX 6.10, DX 6.30, DX 6.50, Serie DX 7, DX 7.10, Serie Hopfen, Hopfen DX 4.17, Hopfen DX 4.57, Serie Intrac, Intrac 2004
