GRAMMER Forklift seat B12 mechanical suspension PVC with seat contact switch | 3244331001, 3244331000, 3244331002, 3244331011, 3244331035, 1127771

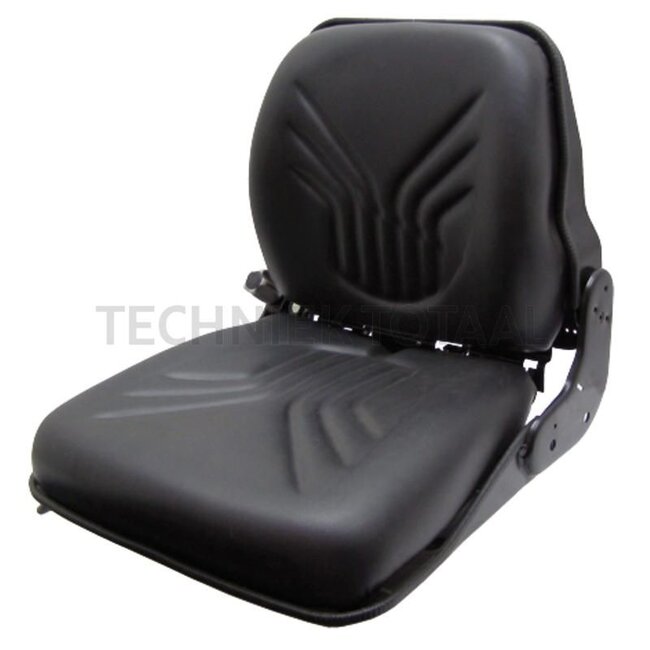

Forklift seat B12

• Seat type: B12
• Suspension: Mechanical
• Upholstery type: PVC
• Seat contact switch: Yes

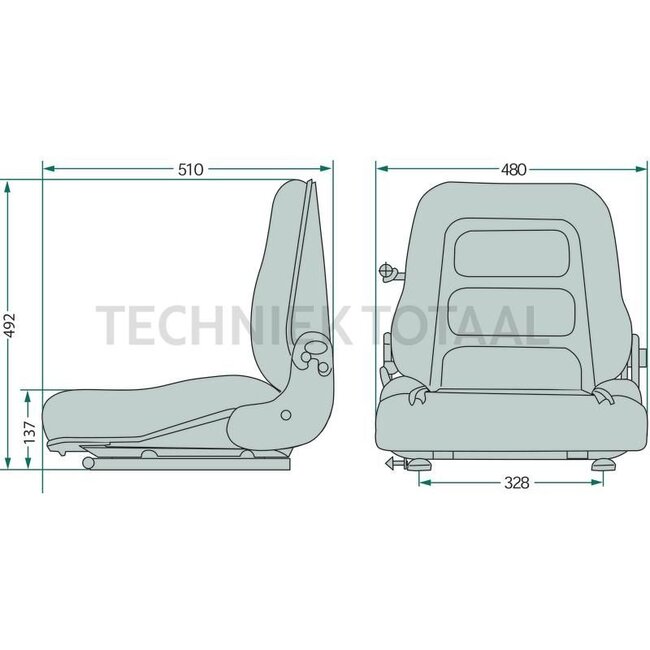

• Track gauge (mm): 328
• Seat width (mm): 480
• Restraint system: Optional
• Length (mm): 510
• Height (mm): 492
• Colour: Black
• To fit: Construction machinery, forklifts
• Technical data: • Seat with mechanical suspension, modulator without damper
  • Suspension travel 40 mm
  • Longitudinal adjustment 150 mm
  • Weight adjustment 50 - 120 kg, 3-way
  • Backrest and tilt adjustment, 15°
  • Seat cushion width 478 mm
• Gauge: Variable
• Menke no.: 53998

Passend voor:

• Linde: 1127771, 3244331001, 3244331000, 3244331002, 3244331011, 3244331035, E, E12 (324) 04/1991 - 07/2000, E12 (324) 05/1987 - 03/1991, E14 (324) 04/1991 - 07/2000, E14 (324) 05/1987 - 03/1991, E15 (324) 04/1991 - 07/2000, E15 (324) 05/1987 - 03/1991, E15-02 (322) 09/1992 - 06/1997, E16 (322) 03/1987 - 08/1992, E16 (324) 04/1991 - 07/2000, E16 (324) 05/1987 - 03/1991, E16-02 (322) 09/1992 - 06/1997, E18-02 (322) 09/1992 - 06/1997, E20 (325) 07/1989 - 07/1995, E20 (325) 12/1985 - 06/1989, E25 (325) 07/1989 - 07/1995, E25 (325) 12/1985 - 06/1989, E30 (325) 07/1989 - 07/1995, E30 (325) 12/1985 - 06/1989, H, H12 (350-01) 10/1990 - 12/2000, H12 (350-02) 10/1990 - 12/2000, H16 (350-01) 10/1990 - 12/2000, H16 (350-02) 10/1990 - 12/2000, H18 (350-01) 10/1990 - 12/2000, H18 (350-02) 10/1990 - 12/2000
• Toyota: 1127771, 1127771GAG, Diverse, Diverse
• Still: 1127771, 1264331007, Diverse, Diverse
