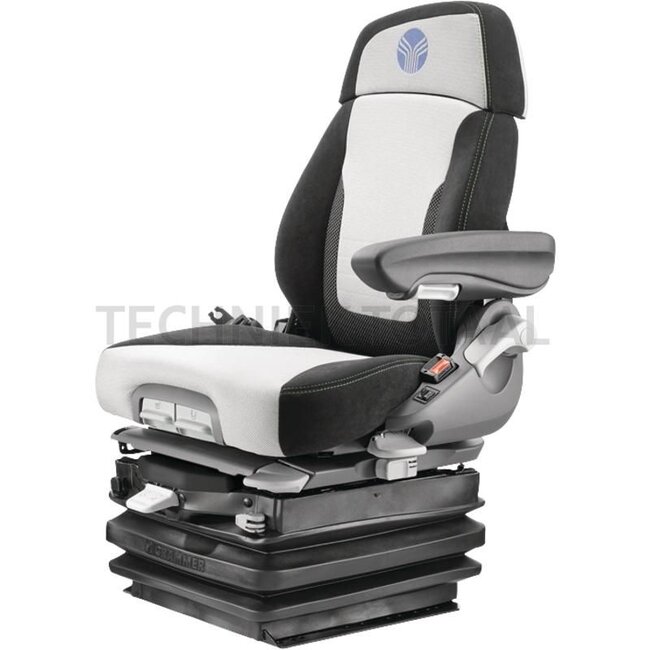

MAXIMO XT Dynamic Plus MSG97AL/741
To fit: Claas Axion, if a Grammer seat is installed up to chassis no. A41Suspension: Air suspensionUpholstery type: Fabric / new designSeat contact switch: OptionalTrack gauge (mm): 381Seat width (mm): 565Joystick console: YesSide horizontal suspension: YesFore/aft isolator: YesRestraint system: YesOn-board voltage (V): 12Seat heater: YesRotation: YesLength (mm): 638Height (mm): 881 → 961Seat type: MSG97AL/741Included in delivery: Seat supplied with seat contact switch and bracket for your existing control armrest. The bracket can be used to mount your existing control armrest on new seats. The image shows a control armrest that fits this seat (not included).Technical data: • Dualmotion function (swivelling backrest extension)
• Suspension travel 120 mm
• Automatic weight adjustment
• DDS: Dynamic Damping System
• APS: automatic positioning system
• Continuous height adjustment 80 mm, air-assisted
• Fore/aft isolator
• Side horizontal suspension
• Swivel adaptor 7.5° left / 15° right
• Longitudinal adjustment 210 mm
• Backrest and tilt adjustment
• Pneumatic lumbar support
• Seat cushion depth and tilt adjustment
• Passive climate control system
• Seat heater 12V
• Seat cushion width: 565 mm (extra high and wide)
• Armrest, left, height and tilt adjustable
• Storage pocket
• Gauge 381 mm
• Cover: fabric, new designVersion: The Maximo XT Dynamic Plus for large agricultural machinery features the unique Dualmotion technology in addition to the Dynamic Damping System. The upper backrest rotates with the driver if necessary.
Together with the swivel adaptor, this ensures perfect visibility and safe vehicle control when working in reverse, while at the same time providing optimum back support. The Maximo XT Dynamic Plus features wider suspension for use in combination with heavy multifunction armrests (not included).
Passend voor:
Claas: Serie Arion, Arion 610, Arion 620, Arion 630, Arion 640, Serie Axion, Axion 810, Axion 820, Axion 830, Axion 840, Axion 850
