Maximo XT Evolution Dynamic MSG97EL/741
To fit: Claas Axion, if a Sears seat is installed up to chassis no. A41Suspension: Air suspensionUpholstery type: Fabric / new designSeat contact switch: YesTrack gauge (mm): 380Seat width (mm): 550Joystick console: YesSide horizontal suspension: YesFore/aft isolator: YesRestraint system: YesOn-board voltage (V): 12Seat heater: YesRotation: YesLength (mm): 640Height (mm): 921Seat type: MSG97EL/741Technical data: • Air suspension with 12V compressor
• Extra wide reinforced version
• Dynamic Damping System
• Suspension travel 120 mm
• Electronic weight adjustment 50 - 130 kg
• Storage pocket
• APS (automatic positioning system)
• Armrest, left, tilt adjustable, 80 x 380 mm
• Swivel adaptor adjustment range 15°
• Height adjustment 80 mm, continuous (pneumatic)
• Active climate control system
• 2-stage seat heater
• Longitudinal adjustment 200 mm
• Side horizontal suspension can be locked
• Fore/aft isolator can be locked
• 2-way pneumatic lumbar support
• Backrest and tilt adjustment
• Dualmotion back support
• Seat cushion depth and tilt adjustment
• Side contour adjustment, back cushion
• Seat contact switch

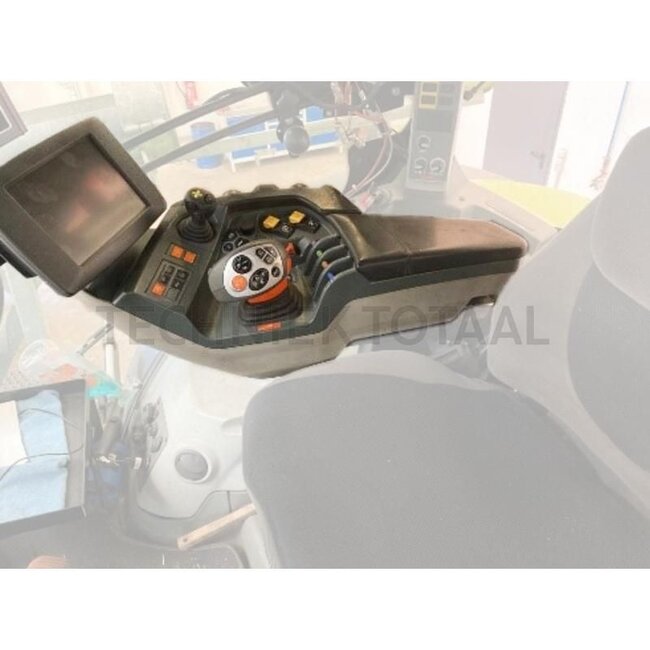

• Duo Sensitiv restraint systemIncluded in delivery: Seat supplied with seat contact switch and bracket for your existing control armrest. The bracket can be used to mount your existing control armrest on new seats and is already pre-assembled. The image shows a control armrest that fits this seat (not included, identification aid only).Notes: Suitable if a Sears seat is installedVersion: The Dynamic Damping System in the Maximo XT Evolution Dynamic sets the suspension comfort standards for seats with passive suspension. The adaptive Dualmotion back support provides maximum visibility and support when working in reverse. The side contour adjustment in the back cushion allows the seat to be adjusted to any body type on an individual basis. With the electronic weight adjustment, the seat adjusts automatically to the driver’s weight. The active seat climate control - which wicks away moisture - ensures perfect seating comfort. The Maximo XT Evolution Dynamic features wider suspension for use in combination with heavy multifunction armrests (not included).Armrest: JaLordosenstütze: pneumatisch, 2-fachRückenverlängerung: Ja
Passend voor:
Claas: Serie Arion, Arion 610, Arion 620, Arion 630, Arion 640, Serie Axion, Axion 810, Axion 820, Axion 830, Axion 840, Axion 850
