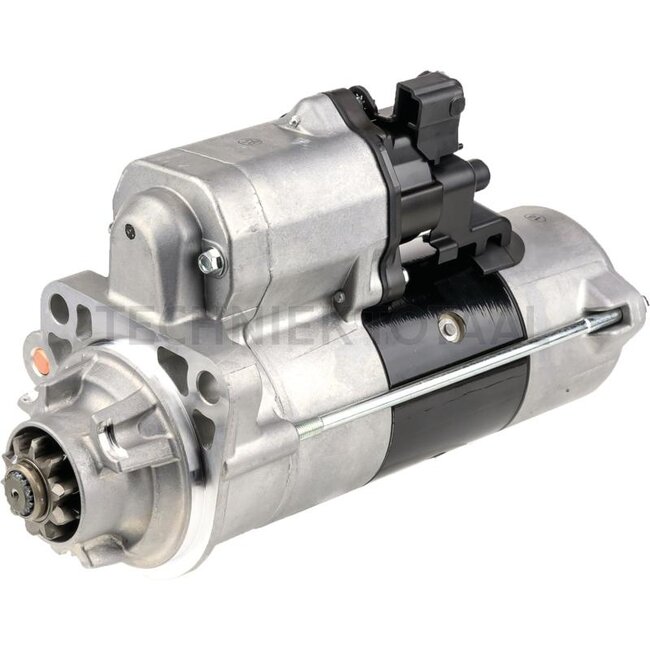

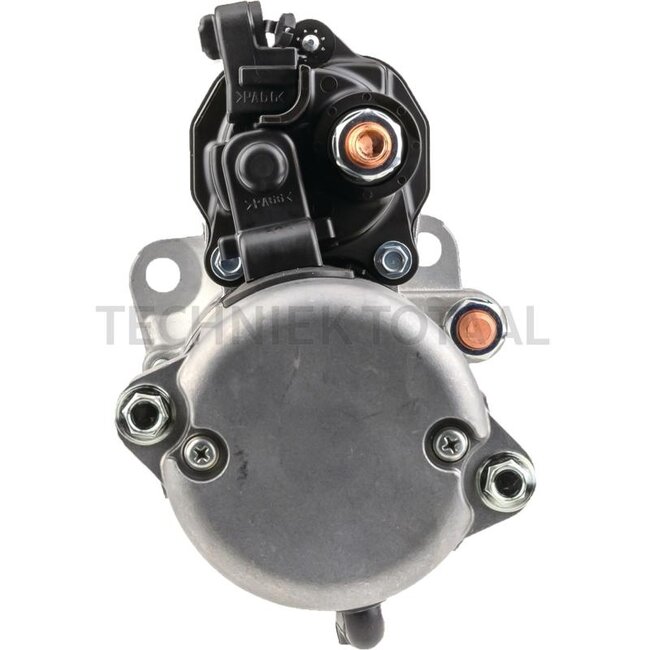

Denso Starter motor with reduction gear 12V 4.8 kW 10 teeth clockwise

Replaces: DSN2092

Technical data:

• Nominal voltage (V): 12
• Nominal power (kW): 4.8
• No. of pinion teeth: 10
• Holes / PCD (mm): 3 x 11.4 / -
• Spacing flange to flywheel (mm): 47.8
• Installation length (mm): 245.0
• Fitting Ø (mm): 89.0
• Installation angle (°): -
• Direction of rotation: clockwise
• Additional information: Connections: terminal 30 (M12), terminal 50 (M5)

Suitable for:

John Deere: 7R 210, 7R 230, 7R 250, 7R 270, 7R 290, 7R 310, 7R 330, 7R 350, 7200R, 7210R, 7215R, 7230R, 7250R, 7260R, 7270R, 7280R, 7290R, 7310R, 8R 230, 8R 250, 8R 280, 8R 310, 8R 340, 8R 370, 8R 410, 8RT 310, 8RT 340, 8RT 370, 8RT 410, 8RX 310, 8RX 340, 8RX 370, 8RX 410, 8235R, 8245R, 8260R, 8285R, 8295R, 8310R, 8310RT, 8320R, 8320RT, 8335R, 8335RT, 8360R, 8360RT, 8370R, 8370RT, 9360R, 9370R, 4230, 4430, 4630, 4640, 4840, 4050, 4250, 4450, 4650, 4850, 4055, 4255, 4455, 4555, 4755, 4955, 4560, 4760, 4960, 8100, 8200, S 660, S 670, S7 700, T5 400, T5 500, T5 600, T5 700, T6 500, T6 600, T6 700, T6 800, T550, T560, T660, T670, W650, W660
