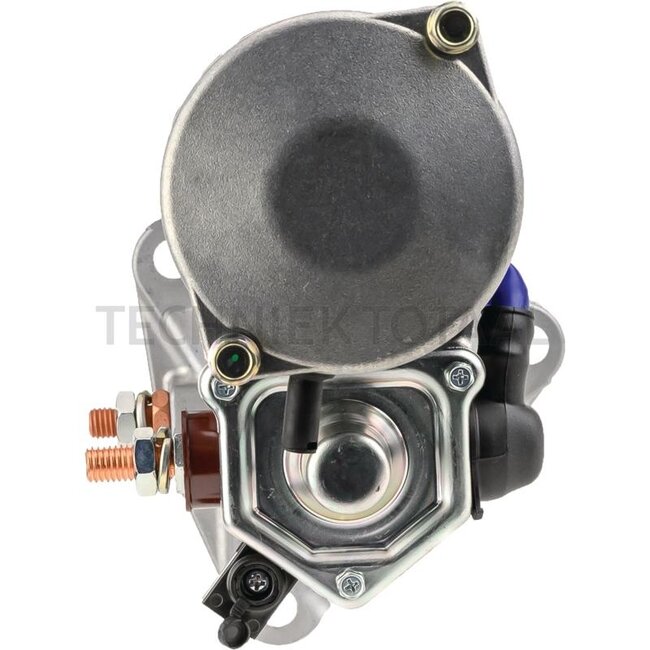

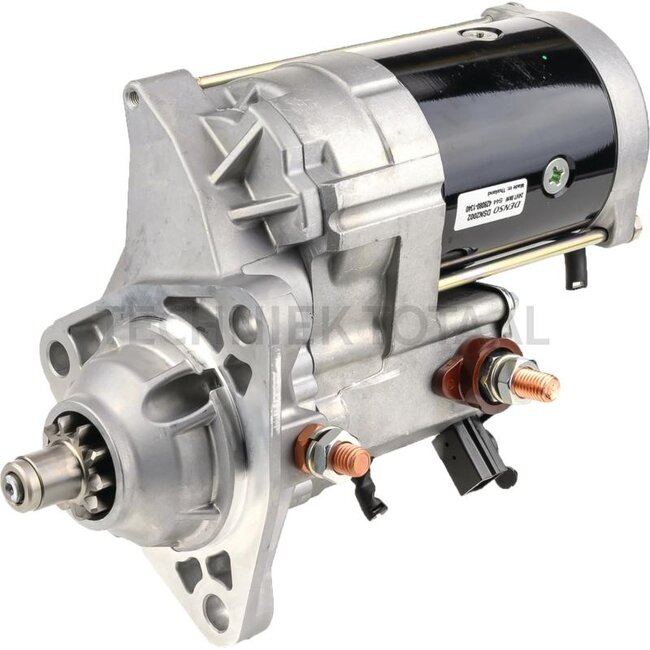

Denso Starter motor with reduction gear 24V 7.8 kW 10 teeth clockwise
Replaces: DSN2002
Technical data:
- Nominal voltage (V): 24
- Nominal power (kW): 7.8
- No. of pinion teeth: 10
- Holes / PCD (mm): 3 x 13.5 / -
- Spacing flange to flywheel (mm): 47.8
- Installation length (mm): 244.0
- Fitting Ø (mm): 92.0
- Installation angle (°): -
- Direction of rotation: clockwise
- Additional information: Connections: terminal 30 (M12), terminal 50 (M5)
