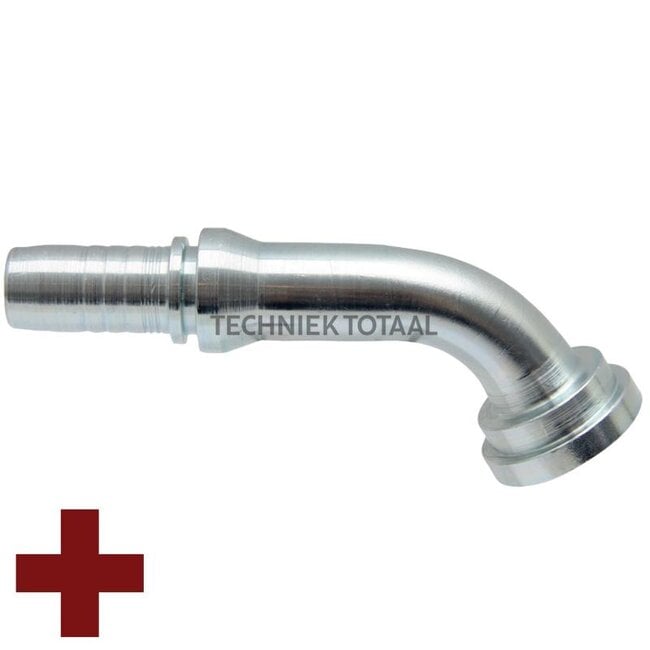

Manuli Swage fitting Spiralfit CAT SAE flange 1", 60°, DN 25

Swage fitting SPIRALFIT

Replaces: M83961-16-16

Technical data:

• Series: 9000 PSI
• D (mm): 47.7
• Nominal width: DN 25 - 1"
• B (mm): 19.5
• A (mm): 114
• Flange: 1"
• Type formula: SFS 60°
• Comparison no.: M83961-16-16
• D (inches): 1"
• Description: SAE flange, heavy, 60°
• E (mm): 51
• S (mm): 14.3
