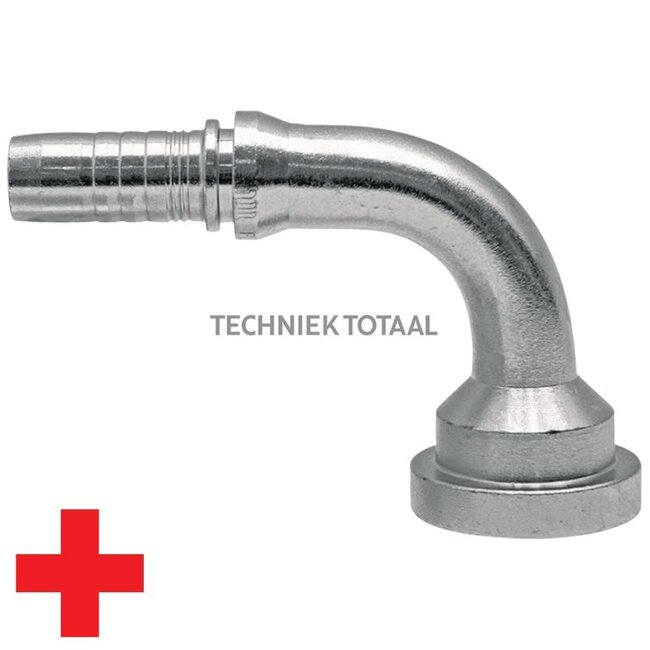

Manuli Swage fitting Spiralfit heavy SAE flange 1", 90°, DN 25

Swage fitting SPIRALFIT

Replaces: M83691-16-16

Technical data:

• Series: 6000 PSI
• A (mm): 82
• Type formula: SFS 90°
• Comparison no.: M83691-16-16
• Description: SAE flange, heavy, 90°
• E (mm): 68
• B (mm): 19.5
• D (inches): 1"
• Nominal width: DN 25 - 1"
• Flange: 1"
• D (mm): 47.7
