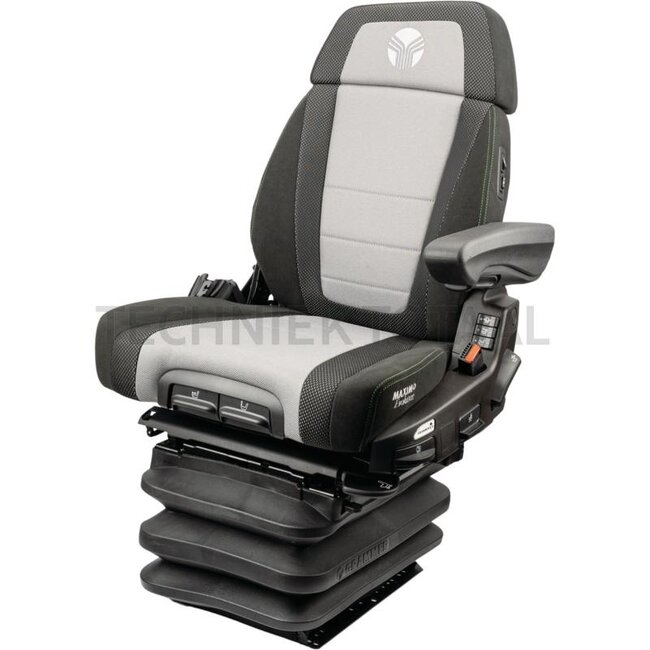

GRAMMER Maximo Evolution Dynamic

MSG95EL/741

Technical data:

• Restraint system: Yes
• On-board voltage (V): 12
• Seat heater: Yes
• Suspension: Air suspension
• Side horizontal suspension: Yes
• Track gauge (mm): 260
• Armrest: Yes, left

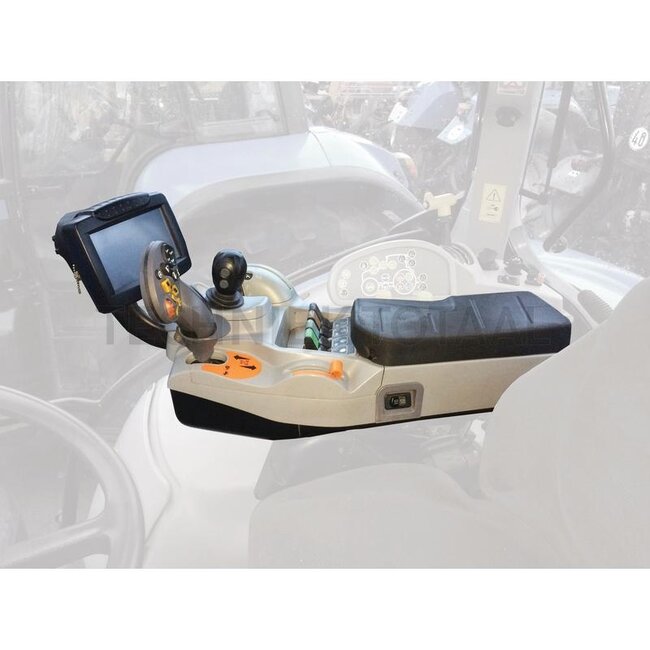

• Included in delivery: Seat supplied with seat contact switch and bracket for your existing control armrest. The bracket can be used to mount your existing control armrest on new seats and is already pre-assembled. The image shows a control armrest that fits this seat (not included, identification aid only).
• Joystick console: Yes
• • Luxury seat with low-frequency air suspension and 12V compressor • Dynamic Damping System • Suspension travel 120 mm • Fore/aft isolator and side horizontal suspension • Active weight adjustment (electronic), automatic positioning system • Pneumatic height adjustment 80 mm, continuous • Longitudinal adjustment 210 mm, rotation max. 15° right/left, lockable in 7.5° steps • Active climate control system and heater in seat and backrest • 2-stage seat heater • Pneumatic lumbar support • Pneumatic side contour adjustment • Backrest and tilt adjustment • Seat cushion depth and tilt adjustment • Storage pocket • Seat cushion width 550 mm • Dualmotion back support • Restraint system • Side horizontal suspension • Left armrest, height adjustable and folding, 80 x 380 mm, tilt adjustable • Seat contact switch

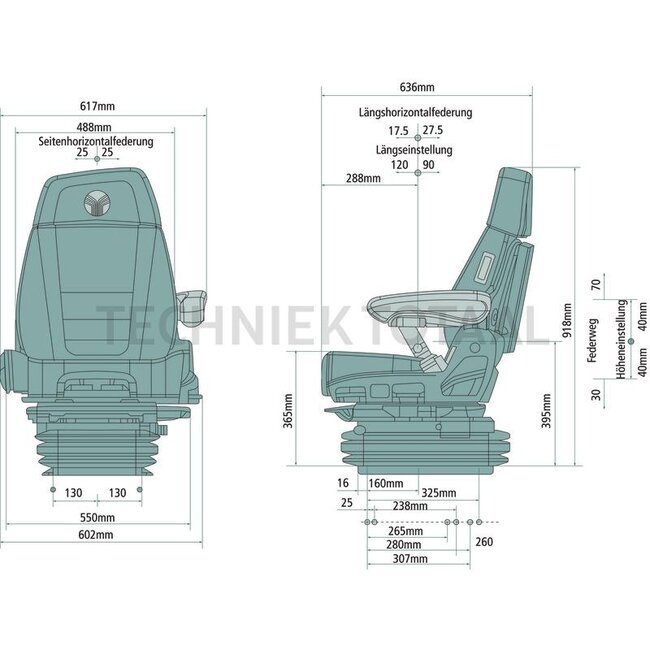

• Length (mm): 636
• Lordosenstütze: Pneumatic, 2-way
• Seat width (mm): 550
• Seat type: MSG95EL/741
• To fit: Case, Steyr, New Holland
• Upholstery type: Fabric / new design
• Rotation: Yes
• Fore/aft isolator: Yes
• Version: The Maximo Evolution Dynamic with Dynamic Damping System sets the standard for suspension comfort for seats with passive suspension in medium and large tractors. The adaptive Dualmotion back support supports the back and, in conjunction with the swivel adaptor, ensures maximum visibility and support when reversing. The side contour adjustment in the back cushion allows the seat to be adjusted to any body type on an individual basis. With the electronic weight adjustment, the seat adjusts automatically to the driver’s weight. The active seat climate control - which wicks away moisture - ensures perfect seating comfort. Multifunction armrests can be connected using various adaptor plates.
• Height (mm): 918
• Rückenverlängerung: Yes
• Seat contact switch: Yes

Suitable for:

Case IH: 743 XL, 745 XL, 844 XL, 845 XL, 856, 956, 1055, 1056, CS 86 (1/99-1/04), CS 86 (3/96-1/99), CS 90 (1/06-), CS 90 Pro (10/07-), CS 94 (1/99-1/04), CS 94 (3/96-1/99), CS 95 Pro (1/08-), CS 100 (1/06-), CS 100 (4/00-7/03), CS 100 (10/07-), CS 105 Pro (1/08-), CS 110 (4/00-7/03), CS 110 (4/96-4/00), CS 120 (4/00-7/03), CS 120 (4/96-4/00), CS 130 (4/00-7/03), CS 130 (4/96-4/00), CS 150 (4/00-7/03), CS 150 (4/96-4/00), CVX 120, CVX 130, CVX 140, CVX 150 (1/07-), CVX 150 (7/00-5/03), CVX 160, CVX 170, CVX 175, CVX 195, CVX 1135, CVX 1145, CVX 1155, CVX 1170, CVX 1190, CVX 1195, 1255, 1455, Magnum 225 (1/06-), Magnum 250 (1/06-), Magnum 255, Magnum 280 (1/06-), Magnum 310 (1/06-), Magnum 7110, Magnum 7120, Magnum 7130, Magnum 7140, Magnum 7150, Magnum 7210, Magnum 7220, Magnum 7230, Magnum 7240, Magnum 7250, Magnum 8910, Magnum 8920, Magnum 8930, Magnum 8940, Magnum 8950, Maxxum 100 Tier 3 (1/07-), Maxxum 110 CVX Tier 4 (7/13-), Maxxum 110 Tier 3 (1/07-), Maxxum 115 Tier 3 (1/07-), Maxxum 120 CVX Tier 4 (7/13-), Maxxum 120 Tier 3 (1/07-), Maxxum 125 Tier 3 (1/07-), Maxxum 130 CVX Tier 4 (7/13-), Maxxum 130 Tier 3 (1/07-), Maxxum 135, Maxxum 140 Tier 3 (1/07-), Maxxum 150, Maxxum 5120, Maxxum 5130, Maxxum 5140, Maxxum 5150, Maxxum 5220, Maxxum 5230, Maxxum 5240, Maxxum 5250, MX 100 Maxxum, MX 110 Maxxum, MX 120 Maxxum, MX 135 Maxxum, MX 150 Maxxum, MX 170 Maxxum, MX 180 Magnum, MX 200 Magnum, MX 210 Magnum, MX 220 Magnum, MX 230 Magnum, MX 240 Magnum, MX 255 Magnum, MX 270 Magnum, MX 285 Magnum, MXM 120, MXM 130, MXM 135, MXM 140, MXM 150, MXM 155, MXM 165, MXM 175, MXM 180, MXM 190, MXU 100 (7/03-), MXU 110 (7/03-), MXU 115 (7/03-), MXU 125 (7/03-), MXU 135 (7/03-), Puma 115 (1/07-11/09), Puma 125 (1/07-11/09), Puma 130 (1/11-), Puma 140 (1/07-11/09), Puma 145 (1/11-), Puma 150 Tier 4b (4/14-), Puma 155 (1/07-11/09), Puma 160 (1/11-), Puma 165 (1/07-), Puma 165 (1/09-), Puma 170 (12/10-), Puma 175, Puma 180 (1/07-), Puma 180 (1/09-), Puma 185 (12/10-), Puma 195 (1/07-), Puma 195 (1/09-), Puma 200 (12/10-), Puma 210 (1/07-), Puma 210 (1/09-), Puma 215 (12/10-), Puma 240, Puma 130 CVX (12/10-), Puma 145 CVX (12/10-), Puma 150 CVX, Puma 160 CVX (12/10-), Puma 165 CVX (11/08-), Puma 170 CVX (12/10-), Puma 180 CVX (11/08-), Puma 185 CVX (12/10-), Puma 195 CVX (11/08-), Puma 200 CVX (12/10-), Puma 210 CVX (11/08-), Puma 215 CVX (12/10-), Puma 225 CVX (11/08-), Puma 230 CVX (12/10-), Steiger 9310, Steiger 9330, Steiger 9350, Steiger 9370, Steiger 9380, Steiger 9390, STX 275, STX 325
