Renault 70-12 tractor parts & technical data

A smaller range, but matched to the model: for the Renault 70-12 you will find more than 50 parts here, such as lighting and electrics that fit this tractor.

89 parts found for Renault 70-12
Show:
Radiator hose, bottom inner-Ø 38 mm Renault 70-12 - 80-14
€65,39 €54,04 €60,16 €49,72
You save 8%
GRAMMER Compacto COMFORT S MSG93/511 air suspended 12 V, seat width 400 mm
GRAMMER
Suspension: Air suspension. Upholstery type: PVC. Seat contact switch: Optional. Track gauge: 225 mm. Seat width: 400 mm. Fore/aft isolator: Optional.... More
Suspension: Air suspension. Upholstery type: PVC. Seat contact switch:...
€1.185,81 €980,01
Spindle thread M24 x 3, ball-Ø 22,5 mm Renault
Dimensions: Thread = M24 x 3, Ball Ø = 22.5 mm. More
Dimensions: Thread = M24 x 3, Ball Ø = 22.5 mm.
€59,28 €48,99 €54,54 €45,07
You save 8%
MAHLE Starter motor 12 V, 2,8 kW, 10 teeth, 253 mm, clockwise
€462,79 €382,47 €277,18 €229,08
You save 40%
Water pump with pulley and gasket, impeller-Ø 82 mm
Dimensions: Impeller Ø 82 mm. More
Dimensions: Impeller Ø 82 mm.
€67,25 €55,58 €61,87 €51,13
You save 8%
Needle bearing oil pump Ø 30 x 34 x 16 mm
Dimensions: Ø 30 x 34 x 16 mm. More
Dimensions: Ø 30 x 34 x 16 mm.
€14,78 €12,21
Axial joint 137 mm, Ø 52 mm, M20 x 1,5 / M18 x 1,5, 30 °
A: 137 mm. C: M20 x 1,5 mm. D: M18 x 1,5 mm. F: 30 °. Ø B: 52 mm. Ø E: 35 mm. More
A: 137 mm. C: M20 x 1,5 mm. D: M18 x 1,5 mm. F: 30 °. Ø B: 52 mm. Ø...
€98,76 €81,62 €90,86 €75,09
You save 8%
Ball joint 55 mm, M18 x 1,5, M18 x 1,5, taper 20 - 22 mm
A: 55 mm. C: M18 x 1,5 mm. D: M18 x 1,5 mm. E: 20 mm. F: 22 mm. Taper: 20 - 22 mm. More
A: 55 mm. C: M18 x 1,5 mm. D: M18 x 1,5 mm. E: 20 mm. F: 22 mm. Taper:...
€150,10 €124,05 €138,09 €114,13
You save 8%
PTO shaft end piece 1 3/8 inch, 6 splines, 295 mm, 1000 rpm Renault
Version: Length 295 mm, 1 3/8", 6 splines, 1000 rpm. More
Version: Length 295 mm, 1 3/8", 6 splines, 1000 rpm.
€286,28 €236,60 €263,38 €217,67
You save 8%
Gaiter Ø upper 4 x 13 mm Renault 351-751
Inner Ø top: 4 x 13 mm. More
Inner Ø top: 4 x 13 mm.
€110,66 €91,45 €101,81 €84,14
You save 8%
Stop cable A 970 mm, B 620 mm Renault
A: 970 mm. B: 620 mm. More
A: 970 mm. B: 620 mm.
€34,72 €28,69 €31,94 €26,40
You save 8%
Stabilizer strut 690 mm, 24 x 3 mm, 22 mm Renault series R
d: 22 mm. h: 35 mm. D: 24 x 3 mm. L: 690 mm. L1: 580 mm. Dimensions: 690 mm. More
d: 22 mm. h: 35 mm. D: 24 x 3 mm. L: 690 mm. L1: 580 mm. Dimensions: 6...
€140,15 €115,83 €128,94 €106,56
You save 8%
Tube 585 mm Renault 351-851, 58-12 - 90-34
Dimensions: Length: 585 mm. More
Dimensions: Length: 585 mm.
€32,51 €26,87
Gas strut 180 N, 390 mm, stroke 152 mm Renault 7348DJ
Newtons: 180. A: 390 mm. B: 185 mm. C: 8 mm. D: 8 mm. Stroke: 152 mm. d1: 8 mm. d2: 18 mm. Form: 6. Reference no.: RT7700005276. More
Newtons: 180. A: 390 mm. B: 185 mm. C: 8 mm. D: 8 mm. Stroke: 152 mm. ...
€45,38 €37,50 €41,75 €34,50
You save 8%
Gas strut rear window 180 N, 390 mm, stroke 152 mm
Newtons: 180. A: 390 mm. B: 185 mm. C: 8 mm. D: 8 mm. Stroke: 152 mm. d1: 8 mm. d2: 18 mm. To fit: rear screen. Form: 6. Reference no.: RT7700005276. More
Newtons: 180. A: 390 mm. B: 185 mm. C: 8 mm. D: 8 mm. Stroke: 152 mm. ...
€41,58 €34,36 €38,25 €31,61
You save 8%
Cobo Rear light left / right 120 x 80 x 56 mm, 12 V
Cobo
Bulb: 12V21WK / P21W, 12V21/5WK / P21/5W. Connection: Cable entry via grommet. Width: 120 mm. Form: Rectangular. Height: 80 mm. Dimensions W x H x D: ... More
Bulb: 12V21WK / P21W, 12V21/5WK / P21/5W. Connection: Cable entry via ...
€35,61 €29,43 €32,76 €27,08
You save 8%
Brake mechanism Ø 165 mm Renault Ares 720, 351-951
€193,52 €159,93 €178,04 €147,14
You save 8%
Brake disc Ø 165 mm, thickness 13 mm, 37 teeth Renault 351-951, Ares 720

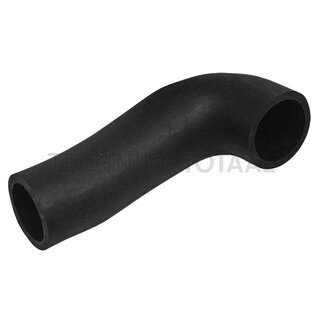

Radiator hose, top inner-Ø 38 / 44 mm Renault 70-12 - 80-14
€66,60 €55,04 €61,27 €50,64
You save 8%
Exhaust manifold exhaust Renault 351-851, 58-12 - 85-14
€108,21 €89,43 €99,55 €82,28
You save 8%
Stop cable A 1620 mm, B 1445 mm Renault
A: 1620 mm. B: 1445 mm. More
A: 1620 mm. B: 1445 mm.
€28,85 €23,84
O-ring oil pump 14,5 x 3 mm Fendt, Renault, Deutz-Fahr
Dimensions: 14.5 x 3 mm. More
Dimensions: 14.5 x 3 mm.
€8,25 €6,82
Oil pump thread 28 x 1,5 mm Fendt, Renault, Deutz-Fahr
Dimensions: Thread 28 x 1.5 mm. More
Dimensions: Thread 28 x 1.5 mm.
€116,47 €96,26 €107,15 €88,56
You save 8%
Stabilizer strut 560 mm, Ø 22 mm, M24 x 3 mm Renault
d: 22 mm. h: 35 mm. D: 24 x 3 mm. L: 560 mm. L1: 460 mm. Dimensions: 560 mm. More
d: 22 mm. h: 35 mm. D: 24 x 3 mm. L: 560 mm. L1: 460 mm. Dimensions: 5...
€58,26 €48,15 €53,60 €44,30
You save 8%
Spindle three-point without thread Ø 18 mm, ball-Ø 22,5 mm Renault
Dimensions: Ø = 18, Ball Ø = 22.5 mm. More
Dimensions: Ø = 18, Ball Ø = 22.5 mm.
€57,07 €47,17 €52,50 €43,39
You save 8%
Gas strut rear window 150 N, 600 mm
suitable for: Heckscheibe. Newtons: 150. A: 600 mm. B: 310 mm. C: 8 mm. D: 8 mm. Form: 2. More
suitable for: Heckscheibe. Newtons: 150. A: 600 mm. B: 310 mm. C: 8 mm...
€37,75 €31,20
LUK Pilot bearing 17 x 40 x 12 mm
LUK
Dimensions: 17 x 40 x 12 mm. Menke no.: 96442. More
Dimensions: 17 x 40 x 12 mm. Menke no.: 96442.
€25,10 €20,74
Single hydraulic pump 14 cm³/rpm. Renault
Output volume: 14 cc/rev. More
Output volume: 14 cc/rev.
€355,94 €294,17 €327,46 €270,63
You save 8%
Tube 466 mm Renault 351-851, 58-12 - 90-34
Dimensions: Length: 466 mm. More
Dimensions: Length: 466 mm.
€79,92 €66,05 €73,53 €60,77
You save 8%
Pin Ø 22 mm Renault 351-851
Dimensions: Ø: 22 mm. More
Dimensions: Ø: 22 mm.
€21,63 €17,87
Cobo Headlight left / right 12 V dipped beam / main beam, R2, built-in
Cobo
Bulb: 12V45/40WAS / R2, or 12V45/40W halogen / R2. Installation location: Left, right. Nominal voltage: 12 V. Test mark: ECE. Light function: Dipped b... More
Bulb: 12V45/40WAS / R2, or 12V45/40W halogen / R2. Installation locati...
€90,28 €74,61 €83,06 €68,64
You save 8%
Cobo Lamp glass right, left, rear
Cobo
Installation location: Right, left, rear. More
Installation location: Right, left, rear.
€27,06 €22,37
Axial joint 137 mm, Ø 52 mm, Ø 35 mm, M20 x 1,5 / M18 x 1,5
€98,76 €81,62 €90,86 €75,09
You save 8%
Gas strut rear window 150 N, 610 mm, stroke 255 mm Renault
suitable for: Heckscheibe. Newtons: 150. A: 610 mm. B: 355 mm. C: 8 mm. D: 8 mm. Form: 2. d1: 8 mm. d2: 18 mm. Stroke: 255 mm. To fit: Rear screen. More
suitable for: Heckscheibe. Newtons: 150. A: 610 mm. B: 355 mm. C: 8 mm...
€38,28 €31,64 €35,22 €29,11
You save 8%
Stop cable 1445 / 1620 mm Renault 58-12 - 106-54, 850-954
To fit as: Renault 58-12, 58-14, 65-12, 65-14, 70-12, 70-14, 75-12, 75-14, 80-12, 80-14, 85-12, 85-14, 95-12, 95-14, 103-12, 103-14, 106-14, 61-12, 61... More
To fit as: Renault 58-12, 58-14, 65-12, 65-14, 70-12, 70-14, 75-12, 75...
€28,85 €23,84
Showing 49 - 89 of 89

Renault 70-12 parts

Plenty of Renault 70-12 tractors still do a day's work, feeding, yard work or running a mower. When something wears on a machine like that, you want it back in action quickly. This page lists more than 50 parts for the 70-12, covering the areas where an older Renault tends to need attention first.

Checking fit before you order

Confirm on the type plate that you have a 70-12, then look at the worn part for a stamped or cast number. With filters and hoses, holding the old one against the details of the item usually settles the question.

Parts groups for this Renault

  • Steering and front axle: ball joints, axial joints and stabilizer struts
  • Engine: MANN-FILTER fuel filters, an oil pump, radiator hoses, exhaust gaskets and a starter motor
  • Engine stop: stop cables
  • Three-point linkage: spindles and tubes
  • Seat and cab: seats and tractor seats from GRAMMER and Cobo, rear window gas struts and rear lights

MAHLE and GRANIT parts are on the page as well. The GRANIT stabilizer strut is made specifically for the Renault R series, which the 70-12 is part of.

Two workshop tips

A stop cable only works smoothly when it runs in wide curves. Follow the old routing, clamp the outer sheath firmly and check that the lever on the injection pump reaches the full stop position. A cable that ends up slightly short can leave the engine running.

To check a ball joint, have someone rock the steering wheel back and forth while you grip the joint. Any play you can feel, or a knock you can hear, means it is due. After fitting a new one, reset the toe-in.

After changing the MANN-FILTER fuel filter, bleed the system at the bleed screw until only fuel without air bubbles comes out, or an older diesel will stall after a few minutes. If one radiator hose has gone, check the others while you are there. A hose that feels hard or shows fine cracks when squeezed will be next, and fitting new clamps with a new hose avoids leaks from an old clamp that has lost its shape.

Other tractors in the R series

These models from the same range each have a page of their own:

The 85-34 and 77-12 also belong to the series. For the full range of the make, head to Renault onderdelen.
