Renault Ares 550 tractor parts & technical data

Keep your Renault Ares 550 working with the right parts. Choose from more than 80 items here, ranging from electrics and trailer couplings to lighting.

87 parts found for Renault Ares 550
Show:
Push button switch PTO shaft plug 70 V, button red, break contact, Ø 30 mm
Push button switch PTO shaft plug 70 V, button red, break contact, Ø 30 mm
Version: 70 V switching voltage, Red button, break contact External switch on mu...
€39,54 €32,68

Cobo Rear light, brake light, indicator 300 x 62 x 63 mm, 12 V
8%
Cobo
Rear light, brake light, indicator 300 x 62 x 63 mm, 12 V
Bulb: 12V21WK / P21W, 12V21/5WK / P21/5W. Connection: 4-way plug-in coupling. Wi...
€77,40 €63,97 €71,21 €58,85

Cobo Glass 12V21WK/P21W, 12V21/5WK/P21/5W left and right
Cobo
Glass 12V21WK/P21W, 12V21/5WK/P21/5W left and right
Bulb: 12V21WK / P21W, 12V21/5WK / P21/5W. Installation location: Right, left.
€36,30 €30,00

Cobo Indicator/position light 122 x 82 x 60 mm, P21W, R5W left
35%
Cobo
Indicator/position light 122 x 82 x 60 mm, P21W, R5W left
Bulb: 12V21WK / P21W, 12V5WK / R5W. Colour: Yellow, white. Width: 122 mm. Form: ...
€50,80 €41,98 €33,09 €27,35

Cobo Cut-out switch starter motor M16, N/O-contact
8%
Cobo
Cut-out switch starter motor M16, N/O-contact
Version: Make contact, Thread: M16, 2 blade terminals.
€40,97 €33,86 €37,69 €31,15

Cobo Contact switch PTO shaft mechanical with blade terminal connection
8%
Cobo
Contact switch PTO shaft mechanical with blade terminal connection
Version: Mechanical with blade terminal connection.
€60,38 €49,90 €55,55 €45,91

Water pump with gasket John Deere, Renault
8%
Water pump with gasket John Deere, Renault
To fit as: John Deere 6100, 6100SE, 6200, 6200SE, 6300, 6300SE, 6400, 6400SE, 66...
€185,62 €153,41 €170,77 €141,13

Walterscheid Flange hitch automatic 37 mm, 140 x 80 mm, M17, 2700 kg, 82,4 kN
21%
Walterscheid
Flange hitch automatic 37 mm, 140 x 80 mm, M17, 2700 kg, 82,4 kN
Automatic version
€1.414,15 €1.168,72 €1.118,04 €924,00

Starter motor 12 V, 3,1 kW, 10 teeth, 244 mm, clockwise
8%
Starter motor 12 V, 3,1 kW, 10 teeth, 244 mm, clockwise
€312,63 €258,37 €287,62 €237,70

V-belt tensioner Ø 70 mm, width 31 mm John Deere, Renault
8%
V-belt tensioner Ø 70 mm, width 31 mm John Deere, Renault
Outer Ø: 70 mm. Width: 31 mm. Menke no.: 221670.
€159,46 €131,79 €146,70 €121,24

V-belt with compressor and air conditioning system Renault Ares 540-636
8%
V-belt with compressor and air conditioning system Renault Ares 540-636
Version: With compressor and air conditioning system.
€78,75 €65,08 €72,45 €59,88

Water pump gasket John Deere, Renault
Water pump gasket John Deere, Renault
Menke no.: 221620.
€34,45 €28,47

Water pump impeller Ø 94 mm, with gasket John Deere, Renault
8%
Water pump impeller Ø 94 mm, with gasket John Deere, Renault
Dimensions: Impeller Ø 94 mm. Version: With gasket.
€140,71 €116,29 €129,45 €106,99

Bosch/Rexroth Double pump anticlockwise 19 + 11 cm³/rpm. Massey Ferguson, Renault
8%
Bosch/Rexroth
Double pump anticlockwise 19 + 11 cm³/rpm. Massey Ferguson, Renault
Output volume: 19 + 11 cc/rev. Drive shaft: Taper 1:5, Ø 17 x 17. Direction of r...
€919,16 €759,64 €845,63 €698,87

Door lock, left Renault Ares 540-836, Atles 556-946
8%
Door lock, left Renault Ares 540-836, Atles 556-946
€135,77 €112,21 €124,91 €103,23

Handle round lock Renault Ares 540-836, Atles 915-946
8%
Handle round lock Renault Ares 540-836, Atles 915-946
€184,22 €152,25 €169,48 €140,07

Force sensor pin Renault Ares 540-836, Arion 410-640, Atles 915-936
8%
Force sensor pin Renault Ares 540-836, Arion 410-640, Atles 915-936
€750,01 €619,84 €690,01 €570,26

Replacement glass 430 x 193 mm, unheated, bending radius 1800 mm
8%
Replacement glass 430 x 193 mm, unheated, bending radius 1800 mm
Dimensions: 430 x 193 mm. Version: Unheated. Installation location: Right/left. ...
€54,43 €44,98 €50,08 €41,38

Walterscheid Piton Fix rail width 309 mm, locking pin Ø 22 mm, 3000 kg, 89,3 kN
21%
Walterscheid
Piton Fix rail width 309 mm, locking pin Ø 22 mm, 3000 kg, 89,3 kN
Rail width: 309 mm. Detent pin Ø: 22 mm. Guide width: 30 mm. Load capacity: 3000...
€1.723,50 €1.424,38 €1.362,61 €1.126,13

Scharmüller Drawbar automatic rail width 335 mm, coupling pin 38 mm
6%
Scharmüller
Drawbar automatic rail width 335 mm, coupling pin 38 mm
Rail width: 335 mm. Detent pin Ø: 22 mm. Guide width: 30 mm. Connecting pin: 38 ...
€1.070,65 €884,83 €1.008,18 €833,21

ROCKINGER Flange hitch automatic deep jaw 36 mm, 140 x 80 mm, M17
23%
ROCKINGER
Flange hitch automatic deep jaw 36 mm, 140 x 80 mm, M17
Lock: Automatic bolt. Hole pattern: 140 x 80 mm. Load capacity: 2000 kg. D-value...
€1.369,96 €1.132,20 €1.055,53 €872,34

Cobo Cut-out switch starter motor M16 x 1,5, maak-/break contact
8%
Cobo
Cut-out switch starter motor M16 x 1,5, maak-/break contact
Version: Make contact/break contact, Thread: M16 x 1.5, 4 blade terminals.
€55,43 €45,81 €51,00 €42,15

Telescopic mirror bracket left Renault Ares 550-825
8%
Telescopic mirror bracket left Renault Ares 550-825
€97,73 €80,77 €89,91 €74,31

LUK Torsion damper 26 teeth, 39 x 42,5 mm Renault Ares 540-566
8%
LUK
Torsion damper 26 teeth, 39 x 42,5 mm Renault Ares 540-566
Number of teeth: 26. Tooth profile: 39x42.5.
€590,41 €487,94 €543,18 €448,91

Dayco Multi-rib belt Powerband air conditioning 8 ribs, 2190 mm
8%
Dayco
Multi-rib belt Powerband air conditioning 8 ribs, 2190 mm
Length: 2190 mm. Ribs: 8 n.
€64,31 €53,15 €59,17 €48,90

Radiator filler cap thread 47,5, for expansion tank
Radiator filler cap thread 47,5, for expansion tank
Version: Thread = 47.5, For expansion tank.
€39,33 €32,50

O-ring Ø 151,99 x 3,53 mm Renault, John Deere
O-ring Ø 151,99 x 3,53 mm Renault, John Deere
Dimensions: Ø 151.99 x 3.53 mm.
€11,68 €9,65

Water pump with gasket John Deere, Renault
8%
Water pump with gasket John Deere, Renault
Version: With gasket.
€185,62 €153,41 €170,77 €141,13

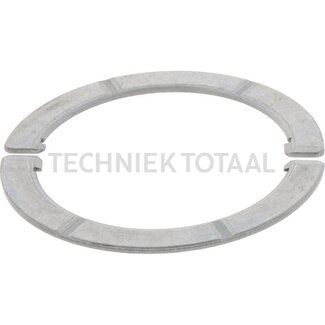

Thrust washer set standard John Deere, Renault
8%
Thrust washer set standard John Deere, Renault
€40,32 €33,32 €37,09 €30,66

Thrust bearing standard without thrust washer Ø 80 mm
8%
Thrust bearing standard without thrust washer Ø 80 mm
Dimensions: Ø 80 mm.
€42,05 €34,75 €38,69 €31,97

Gas strut 250 N, 630 mm Renault Ares 540-640
8%
Gas strut 250 N, 630 mm Renault Ares 540-640
Newtons: 250. A: 630 mm. B: 310 mm. C: 8 mm. D: 8 mm. Form: 6.
€42,54 €35,16 €39,14 €32,34

Cobo Rear light left / right 300 x 62 x 63 mm, 12 V
8%
Cobo
Rear light left / right 300 x 62 x 63 mm, 12 V
Bulb: 12V21WK / P21W, 12V21/5WK / P21/5W. Connection: Circular connector. Width:...
€64,34 €53,17 €59,19 €48,92

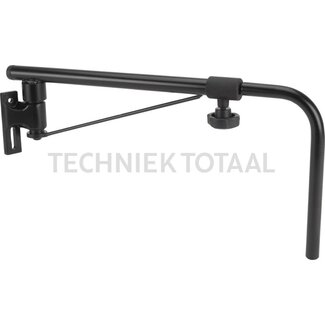

Telescopic mirror bracket right Renault Ares 550-825
8%
Telescopic mirror bracket right Renault Ares 550-825
€97,73 €80,77 €89,91 €74,31

Thermostat Ø 54 mm John Deere, Renault
8%
Thermostat Ø 54 mm John Deere, Renault
Ø: 54 mm.
€34,99 €28,92 €32,19 €26,60

Main bearing standard Ø 80 mm John Deere, Renault
Main bearing standard Ø 80 mm John Deere, Renault
Dimensions: Ø 80 mm. Menke no.: 59705.
€28,09 €23,21

Bearing pin bore Ø 20 mm Massey Ferguson, Renault
8%
Bearing pin bore Ø 20 mm Massey Ferguson, Renault
Dimensions: Hole Ø: 20 mm.
€43,95 €36,32 €40,43 €33,42

Cobo Multifunction switch indicator, lighting, horn
8%
Cobo
Multifunction switch indicator, lighting, horn
Version: indicator, light, horn.
€183,33 €151,51 €168,66 €139,39

Showing 49 - 87 of 87

Renault Ares 550 parts: cab, hitching and engine

Much of what keeps a Renault Ares 550 pleasant to work with is not the engine but the dozens of small parts around it. This page lists more than 80 new replacement parts for the Ares 550, from GRANIT and from specialist makers including Walterscheid, ROCKINGER, Cobo and MAHLE.

Hitching and PTO

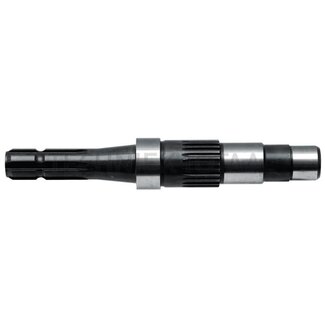

At the rear you can replace flange hitches, automatic drawbars, top drawbars and PTO shaft end pieces. Before ordering a flange hitch or drawbar, measure the rail width and the coupling pin on the tractor, as that is where a wrong part shows up straight away.

Cab, lights and engine

In the cab there are door locks, gas struts, replacement glass and telescopic mirror brackets. Rear lights and indicator position lights cover the lighting, and a cut-out switch on the starter motor makes sure the engine only cranks when it should. Under the bonnet you will find water pumps supplied with a gasket, alternators and air filters. Track rod ball joints take the play out of the steering on the Ares.

Identifying the right part

The identification plate on the tractor confirms that you are working on an Ares 550. After that, the reference number on the part you have removed is the surest way to match the replacement. For a ball joint, also check the taper on the steering arm, since a joint that sits too high or low in the taper will never tighten properly.

Tip for the water pump

A water pump usually warns you before it fails, with a damp patch or dried coolant below the weep hole in the housing. Replace it at that stage rather than waiting for the bearing to rattle. Fit the new pump with its gasket, clean the mating face on the block thoroughly and refill with fresh coolant. Run the engine up to temperature with the heater open and bleed the system so that no air pocket stays trapped near the thermostat.

Air filter care

A blocked air filter shows up as black smoke under load and an engine that is slow to pick up. Do not knock the element out against a tyre or blow it through from the inside, as the paper tears easily. Fit a new element and wipe the housing clean first so that no dust reaches the engine side.

Other Ares tractors

The Ares 540, Ares 620 and Ares 640 have their own pages, and the Ares 610 belongs to the same family. Check each model on its own page rather than assuming a part carries over. The full brand overview is under Renault parts.
