Werklamp LED
Passend voor:
John Deere: 5100R, 5125R, 6100M, 6105R, 6110R, 6115R, 6120R, 6125R, 6130R, 6135R, 6140R, 6145R, 6150R, 6155R, 6170R, 6175R, 6190R, 6195R, 6210R, 6215R, 6230R, 6250R, 7200R, 7210R, 7215R, 7230R, 7250R, 7260R, 7270R, 7280R, 7290R, 7310R, 8225R, 8235R, 8245R, 8260R, 8270R, 8285R, 8295R, 8295RT, 8310R, 8310RT, 8320R, 8320RT, 8335R, 8335RT, 8345R, 8345RT, 8360R, 8360RT, 8370R, 8370RT, 9360R, 9370R, 9410R, 9420R, 9460R, 9460RT, 9470R, 9470RT, 9470RX, 9510R, 9510RT, 9520R, 9520RT, 9520RX, 9560R, 9560RT, 9570R, 9570RT, 9570RX, 9620R, 9620RX
| Artikelnummer | 7070010306 |
|---|---|
| EAN | 4059139386598 |
| Gewicht | 730 g |
| Netspanning | 12 / 24 V |
| Spanningsbereik | 10 - 30 Volt |
| Lamp | LED |
| Inclusief lamp | ja |
| Lichtfunctie | Verlichting van de nabije en de wijde omgeving |

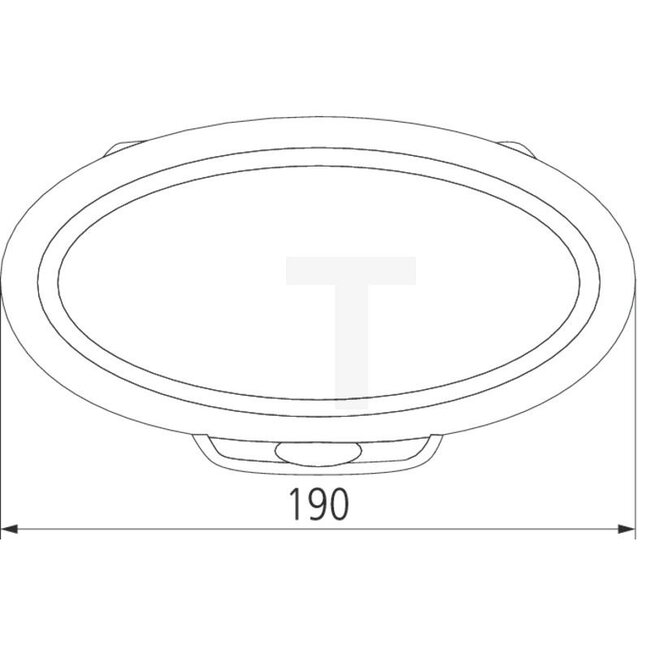

| Afmetingen B x H x D | 190 x 70 x 108 mm |
| Montagewijze | staand, M4 |
| Beschermingssoort | IP67 / IP6K9K |
| Aansluiting | AMP-stekker |
| Vorm | ovaal |
| Materiaal | Behuizing: aluminium; Lens: kunststof |
| Aantal LED's | 18 |
| Keurmerk | ECE R10; CE |
| Vermogensopname | 30 W |
| Opbouwmaat | 70 mm |
| Lichtstroom effectief | ≈ 3500 lm |
| Lichtstroom theoretisch | ≈ 4100 lm |
| Lichtkleur | ≈ 5000 - 6500 K |
| Bedrijfstemperatuur (°C) | -40 / +50 |
| Glas | 167 x 78 mm |
