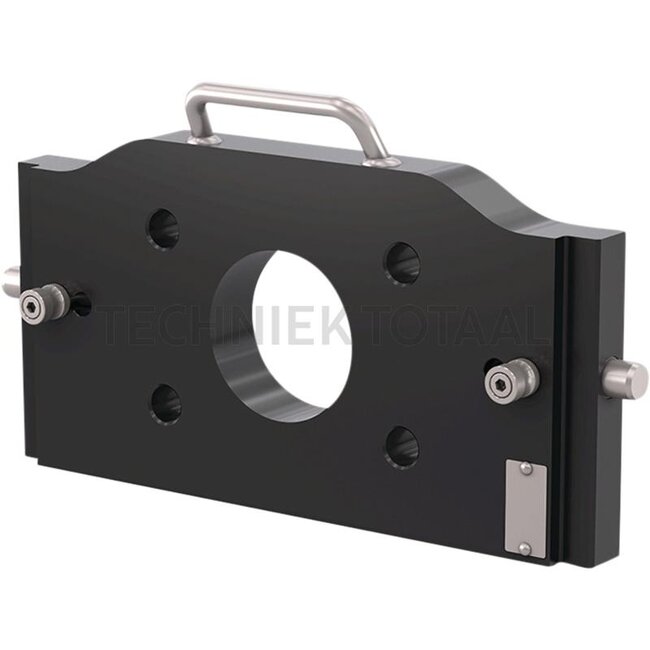

Walterscheid Adapter plate

Replaces: 8004533

Technical data:

• Central hole (mm): 95
• Hole (mm): M21
• Load capacity (kg): 2800
• Hole pattern (mm): 160 x 100
• Detent pin Ø (mm): 20
• D-value (kN): 89,3
• Description: The coupling plate is a height-adjustable sliding plate that can only be operated in hitch supports with locking rails. It is prepared for attaching flange couplings or other connecting devices with a flange. The areas of application include use on agricultural or forestry vehicles, self-propelled work machines and trailers. Advantages: height-adjustable, forged material, suitable for a wide range of couplings that can be flange-mounted
• Guide width (mm): 30
• Colour: Black
• Assembly notes: The vehicle part support distance (from the centre of the coupling plate to the centre of the coupling point) may be up to 222 mm.
• Rail width (mm): 330

Suitable for:

Case IH: Magnum 225 (1/06-), Magnum 250 (1/06-), Magnum 280 (1/06-), Magnum 310 (1/06-), Magnum 335, Magnum 235 Tier 4a, Magnum 235 Tier 4a CVT, Magnum 260 Tier 4a, Magnum 260 Tier 4a CVT, Magnum 290 Tier 4a, Magnum 290 Tier 4a CVT, Magnum 315 Tier 4a, Magnum 315 Tier 4a CVT, Magnum 340 Tier 4a, Magnum 340 Tier 4a CVT/CVX, Magnum 340 Tier 4b CVT/CVX (4/14-), MX 180 Magnum, MX 200 Magnum, MX 210 Magnum, MX 220 Magnum, MX 230 Magnum, MX 240 Magnum, MX 255 Magnum, MX 270 Magnum, MX 285 Magnum

Deutz-Fahr: Agrotron X710, Agrotron X720

Lamborghini: Strike 100, Strike 105.4, Strike 110, Strike 115.4

New Holland: T8.275 Tier 4a, T8.275 Tier 4a CVT, T8.300 Tier 4a, T8.300 Tier 4a CVT, T8.330 Tier 4a, T8.330 Tier 4a CVT, T8.360 Tier 4a, T8.360 Tier 4a CVT, T8.390 Tier 4a, T8.390 Tier 4a CVT, T8.420 Tier 4a CVT, T8.420 Tier 4a CVT (2/13-), T8020, T8030, T8040, T8050, TG210, TG215, TG230, TG245, TG255, TG285, TG305
