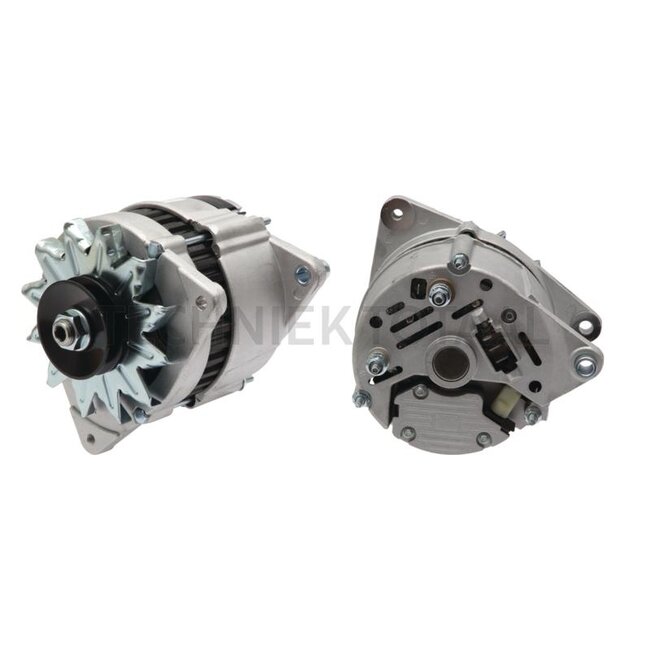

Alternator 12 V / 65 A Challenger, JCB, Massey Ferguson, Valtra-Valmet | 111355, F032111355, 3615942M1, 3904254M91, V836673344

Alternator 12 V / 65 A

Replaces: 111355, F032111355

Technical data:

Installation angle (°): l 60
Charging current (A): 65
Additional information: Connections B+ (M6-6.3), with W-connection, internal regulator
Direction of rotation: ↻
Belt tension hole Ø / R (mm): M8 / 86,25
Form: A
Nominal voltage (V): 12
Belt width (mm) / type: -
Mounting L / d / R (mm): 83,0 / 8,3 / 86,25
Mounting hole Ø / R (mm): 8,2 / 86,25
Pulley spacing (mm): 30,5
Nominal values (V / A): 12 / 65
Pulley Ø (mm): 72,2
Flange size (mm): 83,0

Suitable for:

Challenger: MT745D

JCB: 520-40 (Perkins 404C.22 TIER II), 520-40 (Perkins 404D.22 TIER III), 8025 (Perkins 403D-15/-17), 8026 (Perkins 403D-15), 8027 (Perkins 403C-15), 8030 (Perkins 403D-15), 8032 (Perkins 403C-15), 8035 (Perkins 403D-15/-17), 8040 (Perkins 404D-22), 180T T3 ( Perkins 404D-22 ( 1803999 - 1803999 )), 135W ( Perkins 404D-22 35,7kw ( 2431601 - 3139384 ))

Massey Ferguson: 3670, 3680, 3690, 4215, 4220, 4225, 4235, 4240, 4243, 4245, 4253, 4255, 4260, 4263, 4270

Valtra-Valmet: 8000, 8100, 8200, 8400, N122, N142, N113, N123, N143, N163, T132, T152, T162, T172, T182, T202, T133, T153, T163, T173, T183, T193, T203, T213
