Direction of rotation: ↻ | Belt width (mm) / type: 9,7 | Charging current (A): 55 | Pulley spacing (mm): 49,0 | Installation angle (°): 0 | Form: A | Mounting hole Ø / R (mm): 12,2 / 85,0 | Flange size (mm): 70,0 | Mounting L / d / R (mm): 70,0 / 12,2 / 8 Read more.

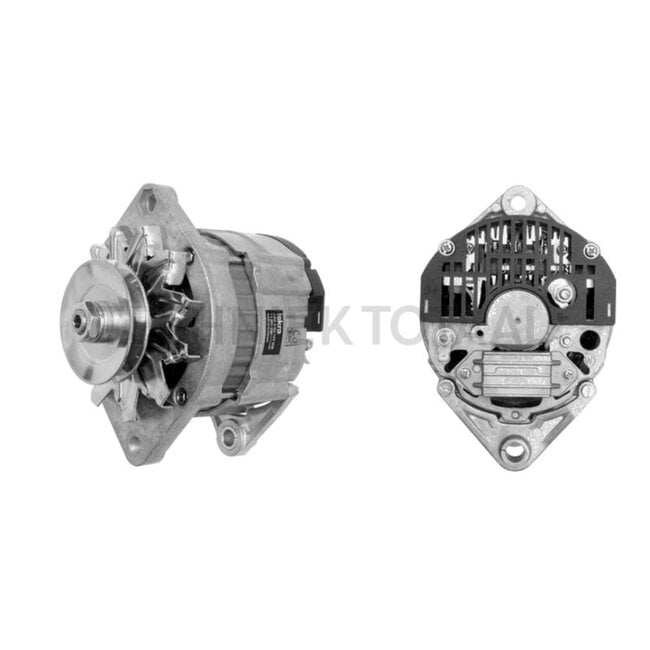

MAHLE Alternator 14 V / 55 A
Replaces: MG 191
Technical data:
Suitable for:
Case IH: Motor Iveco/FPT 8035, Motor Iveco/FPT 8045, JX 70U, JX 80U, JX 90U, JX 100U
Fiat: 55-46, 60-46, 65-46, 55-56, 60-56, 70-56, 45-66, 45-66 S, 50-66, 50-66 S, 55-66, 55-66 S, 56-66 S, 60-66, 60-66 F, 60-66 S, 65-66, 65-66 S, 70-66, 70-66 F, 70-66 LP, 70-66 S, 80-66, 80-66 F, 80-66 S, 45-76 V, 55-76 F, 55-76 V, 60-76 F, 70-76 F, 70-76 LP, 70-76 V, 80-76 F, 50-86 S V, 50-86 V, 55-86 F, 55-86 S V, 55-86 V, 62-86 F, 70-86 S V, 70-86 V, 55-88, 60-88, 65-88, 70-88, 80-88, 55-90, 60-90, 65-90, 70-90, 80-90, 85-90, 60-93, 65-93, 72-93, 82-93, 88-93, 60-94, 65-94, 72-94, 82-94, 88-94, L 60, L 65, L 75, L 85, L 95, 55-65 F, 55-65 M, 55-65 V, 55-75 F, 55-75 M, 55-75 V, 55-85 F, 55-85 M, 55-85 V, 60-65, 60-65 M, 60-65 V, 60-75, 60-75 M, 60-75 V, 60-85 F, 60-85 V, 62-85, 62-85 M, 70-65, 70-65 M, 70-75, 70-75 M, 72-85, 72-85 M, 80-65, 80-75, 82-85, 85-55, 88-85
Ford: 3430, 3830, 3930, 4030, 4130, 4230, 4430, 4630, 4830, 5030, 3435, 3935, 4135, 4635, 4835, 5635, 6635, 7635
Laverda: 3300, 3350, 3400, 3450, 3550, 3650, 3750
New Holland: TK65, TK75, TK76, TK85, TK95, TL65, TL70, TL80, TL90, TL100
