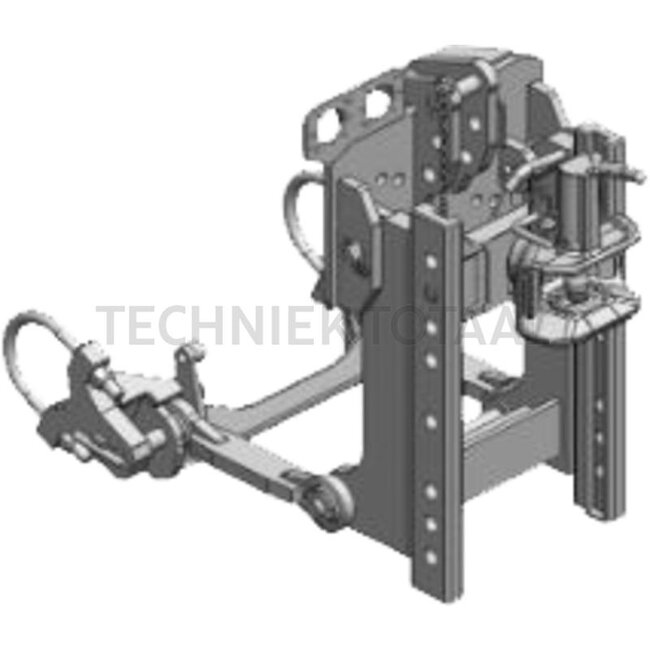

Name: Scharmüller Drawbar frame standard 76,4 kN, 330 mm, type 427, axle tube Ø 125 mm | 00.131.03.0-SET
Brand: Scharmüller
SKU: 12519514
Price: 5043.00 EUR

Scharmüller Drawbar frame standard 76,4 kN, 330 mm, type 427, axle tube Ø 125 mm | 00.131.03.0-SET

Scharmüller Hitch support

Replaces: 00.131.03.0-SET

Technical data:

Description: compatible with Q37 Daimler end cross member or Scharmüller item 34.437.001.0 Suitable for two-piece axle with axle tube Ø125 mm - axle number 747.424, 747.425
Hole pattern (mm): 230 x 130 / 160 x 100
Rail width (mm): 330
Type: 427
Detent pin Ø (mm): 25
Guide width (mm): 32
D-value (kN): 76,4
Colour: Black
Load capacity (kg): 2000
Category: Bearing supports
Version: standard

Suitable for:

Challenger: MT835, MT845, MT855, MT865

Claas: Arion 410, Arion 420, Arion 430, Arion 440, Arion 450, Arion 460

Fendt: Fendt 1149 MT, Fendt 1154 MT, Fendt 1159 MT, Fendt 1165 MT

Massey Ferguson: 5S.105, 5S.115, 5S.125, 5S.135, 5S.145, 5410 Tier 3, 5420 Tier 3, 5430 Tier 3, 5440 Tier 3, 5450 Tier 3, 5608, 5609, 5610, 5611 Dyna 6, 5612 Dyna 4, 5612 Dyna 6, 5613 Dyna 4, 5613 Dyna 6, 5708, 5709, 5710, 5711, 5709 M, 5710 M, 5711 M, 5712 M, 5713 M, 5709 S/SL, 5710 S/SL, 5711 S/SL, 5712 S/SL, 5713 S/SL

Valtra-Valmet: A75, A85, A95, A74, A84, A94, A104, A114, A124, A134, G105, G115, G125, G135
