Name: Walterscheid Drawbar support rail 390 mm, 92 kN, nose weight 3500 kg, Fendt gray | 8005108
Brand: Walterscheid
SKU: 770ZP4305W
Price: 1888.65 EUR

Walterscheid Drawbar support rail 390 mm, 92 kN, nose weight 3500 kg, Fendt gray | 8005108

Walterscheid Drawbar support

For 390 mm rail

Replaces: 8005108

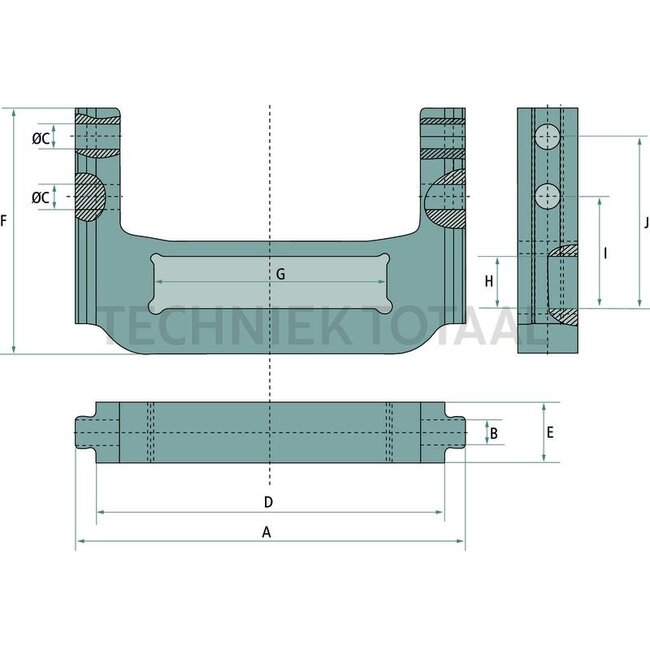

Technical data:

H (mm): 52
F (mm): 260
C (mm): 25
G (mm): 232
Description: The drawbar supports are height-adjustable sliding plates that can only be operated in hitch supports with locking rails. They are prepared for attaching connection equipment such as drawbars, ball coupling bars or Piton bars. The areas of application include use on agricultural or forestry vehicles, self-propelled work machines and trailers. Advantages: height-adjustable
A (mm): 390
B (mm): 32
D (mm): 350
Assembly notes: Prepared for attaching drawbars, ball coupling bars, Piton bars or comparable connection equipment.
I (mm): 120
Load capacity (kg): 3500
E (mm): 75
Colour: Fendt grey
D-value (kN): 92

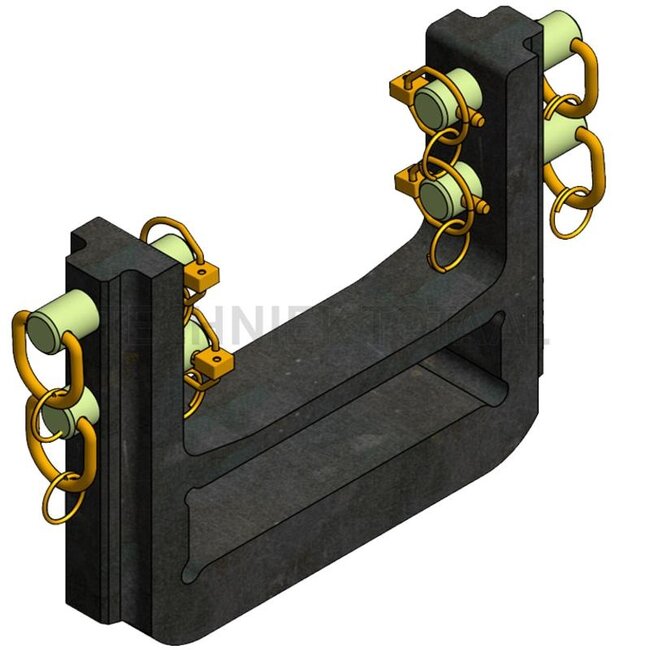

Included in delivery: Includes 1x drawbar support 770ZP4305W and 4x locking pin 770AB8329.
J (mm): 180

Suitable for:

Fendt: Fendt 712 (Typ 724), Fendt 714 (Typ 738), Fendt 716 (Typ 739), Fendt 718 (Typ 740), Fendt 720 (Typ 741), Fendt 722 (Typ 742), Fendt 724 (Typ 743), Fendt 924 (Typ 941), Fendt 927 (Typ 942), Fendt 930 (Typ 943), Fendt 933 (Typ 944), Fendt 936 (Typ 945), Fendt 939 (Typ 946), Fendt 942 (Typ 961)

Massey Ferguson: 7S.155, 7S.165, 7S.180, 7S.190, 7S.210, 8S.205, 8S.225, 8S.245, 8S.265, 8S.285, 8S.305, 7715/S, 8727, 8730, 8732, 8735, 8737
