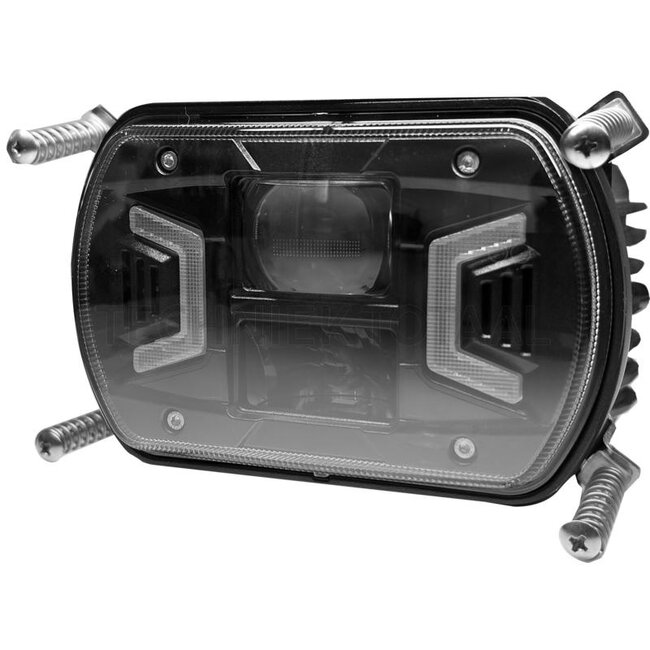

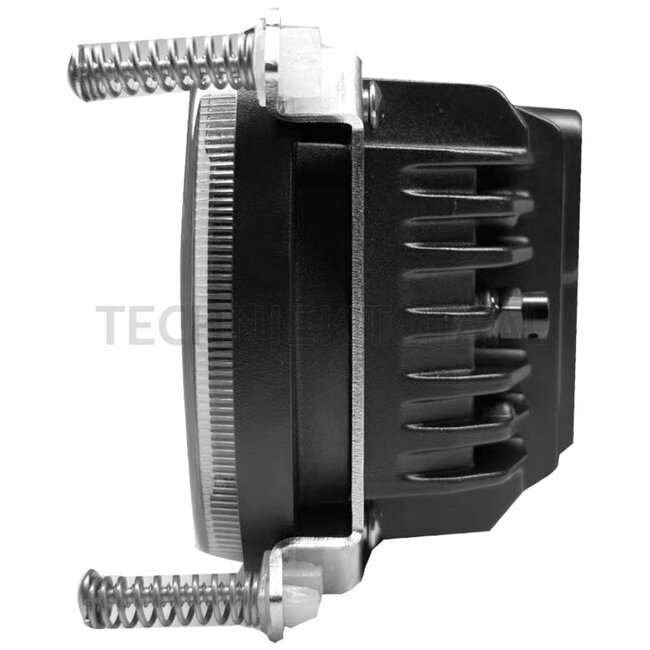

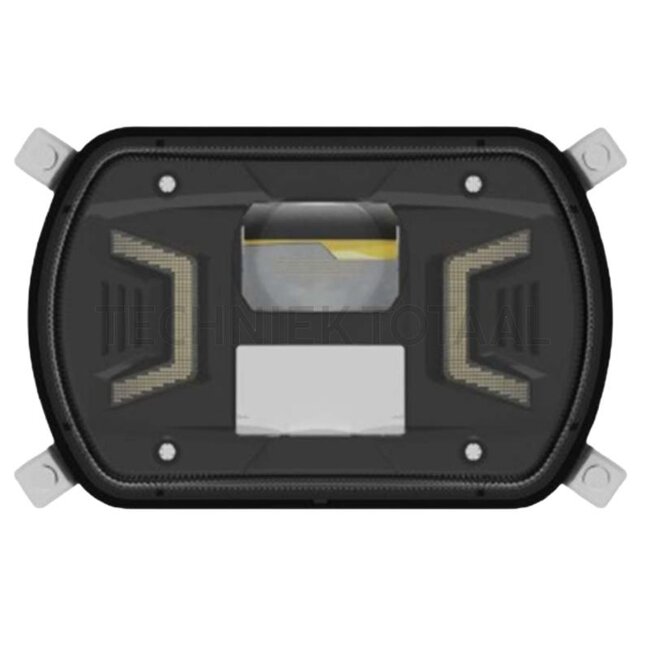

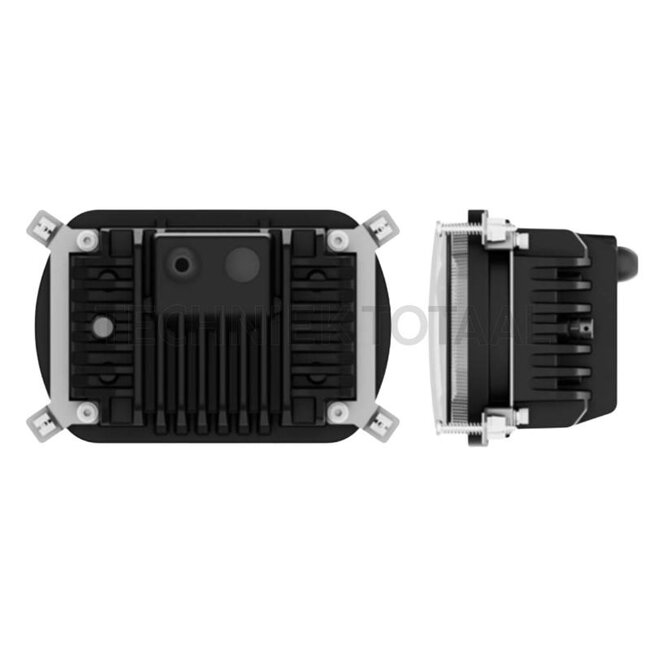

GRANIT LED main headlight
Technical data:
- Protection class: IP69K
- Form: Rectangular
- Test mark: UKCA, RoHS, CE, ECE R10, R148, R149
- Cable length (m): 0.1
- Power consumption (W): Abblendlicht: 25W (25W x 1 LED) Fernlicht: 50W (25W x 2 LED) Positionslicht: 9W (0.5W x 18 LED)
- Material: Polycarbonate
- Housing material: Aluminium
- Nominal voltage (V): 12 / 24
- Light function: Full beam, dipped beam, position light
- Colour: Black
- Operating temperature (°C): -40°C / +80°C

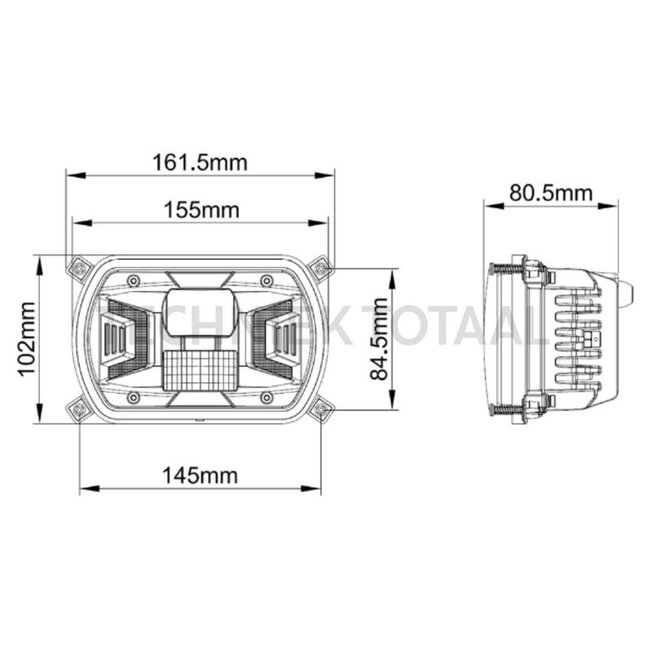

- Dimensions W x H x D (mm): 155 x 102 x 80,5
- Connection: H4, wired
- Additional information: Theoretical/effective luminous flux: Dipped beam: 2000/1400 lm Full beam: 4500/3000 lm [email protected] [email protected] [email protected] [email protected]
- EMC: CISPR 25 class 3
- Fixing: Flush mounting
- Bulb: LED
- Voltage range (V): 10 - 30
- Bulbs included: Yes
- Light colour (K): 6.000
Suitable for:
New Holland: TD55D (11/02-), TD65D (11/02-), TD75D (11/02-), TD85D (11/02-), TD95D (11/02-), TD5010, TD5020, TD5030, TD5040, TD5050
