New Holland TD5040 tractor parts & technical data

Planning maintenance on a New Holland TD5040? More than 200 parts for this TD5000 series tractor are listed here, from trailer couplings to brake parts.

227 parts found for New Holland TD5040
Show:
GRAMMER Tractor seat mechanical suspension PVC 480 mm, track width 187 mm
GRAMMER
Suspension: Mechanical. Upholstery type: PVC. Seat contact switch: Optional. Track gauge: 187 mm. Seat width: 480 mm. Joystick console: No. Restraint ... More
Suspension: Mechanical. Upholstery type: PVC. Seat contact switch: Opt...
€333,37 €275,51
Scharmüller Drawbar K80 rail 390 mm, pin Ø 25 mm, 4000 kg, black
Scharmüller
Rail width: 390 mm. Detent pin Ø: 25 mm. Guide width: 32 mm. Load capacity: 4000 kg. D-value: 120 kN. Plate height: 160 mm. Colour: Black. Overhang: ... More
Rail width: 390 mm. Detent pin Ø: 25 mm. Guide width: 32 mm. Load cap...
€1.616,17 €1.335,68 €1.271,24 €1.050,61
You save 21%
AKS-Dasis Thermostat airco Case IH, Fiat, Ford, New Holland
AKS-Dasis
Version: Air conditioning system More
Version: Air conditioning system
€142,98 €118,17 €131,54 €108,71
You save 8%
GRAMMER Seat Compacto Basic S MSG83/511, mechanical, PVC, 400 mm
GRAMMER
Suspension: Mechanical. Upholstery type: PVC. Seat contact switch: Optional. Track gauge: 227 mm. Seat width: 400 mm. Fore/aft isolator: Optional. Sea... More
Suspension: Mechanical. Upholstery type: PVC. Seat contact switch: Opt...
€1.054,87 €871,79 €970,48 €802,05
You save 8%
Sauermann Piton Fix rail 320 mm, locking pin Ø 30 mm, guide 20 mm, 3000 kg
Sauermann
Height adjustable, rotating bolt system to fit as System Sauermann. More
Height adjustable, rotating bolt system to fit as System Sauermann.
€1.736,14 €1.434,83 €1.647,25 €1.361,36
You save 5%
Donaldson Maintenance switch air filter electric, 2 blade connections
Donaldson
Donaldson no.: X770062 | Version: Differential pressure switch 2 blade terminals | Type: Electrical More
Donaldson no.: X770062 | Version: Differential pressure switch 2 blade...
€35,42 €29,27 €32,59 €26,93
You save 8%
LUK Thrust bearing PTO clutch 75 x 115 x 20 mm
LUK
Dimensions (mm): 75 x 115 x 20 More
Dimensions (mm): 75 x 115 x 20
€183,54 €151,69 €168,86 €139,55
You save 8%
Danfoss Orbitrol OSPC 100 ON Case IH, Fiat, New Holland
Danfoss
Type: OSPC 100 ON / 150-1151 More
Type: OSPC 100 ON / 150-1151
€1.094,17 €904,27 €1.006,64 €831,93
You save 8%
Eaton Driven gear wheel transmission
Eaton
Reference no.: 5169606 More
Reference no.: 5169606
€136,74 €113,01 €125,80 €103,97
You save 8%
Thrust bearing single PTO clutch 75 x 115 x 20 mm
Dimensions (mm): 75 x 115 x 20 More
Dimensions (mm): 75 x 115 x 20
€30,45 €25,17
Eaton Drive pinion transmission 2,65 kg
Eaton
Reference no.: 5172047 More
Reference no.: 5172047
€418,94 €346,23 €385,42 €318,53
You save 8%
Walterscheid Ball hitch K80 330 / 25 / 32 mm, 2800 kg, 97,1 kN
Walterscheid
Quick height adjustment with rotation lock, load capacity up to 40 km/h 2800 kg, from 40 km/h 2,000 kg. More
Quick height adjustment with rotation lock, load capacity up to 40 km/...
€2.111,26 €1.744,84 €1.719,18 €1.420,81
You save 19%
Scharmüller Automatic hitch adjustable, rail 390 mm, pin 31 mm, 120 kN
Scharmüller
Lock: Automatic | Connecting pin (mm): 31 | D-value (kN): 120,0 | Rail width (mm): 390 | Detent pin Ø (mm): 25 | Load capacity (kg): 2500 | Descripti... More
Lock: Automatic | Connecting pin (mm): 31 | D-value (kN): 120,0 | Rail...
€1.157,46 €956,58 €1.064,86 €880,05
You save 8%
GRAMMER Seat Compacto Basic M MSG83/521, mechanical, PVC, 450 mm
GRAMMER
Suspension: Mechanical. Upholstery type: PVC. Seat contact switch: Optional. Track gauge: 225 mm. Seat width: 450 mm. Fore/aft isolator: Optional. Res... More
Suspension: Mechanical. Upholstery type: PVC. Seat contact switch: Opt...
€1.022,73 €845,23 €940,91 €777,61
You save 8%
Sealing ring lift arm shaft 23 x 37 x 11 mm Ford, Case IH, Fiat, New Holland
Dimensions: 23 x 37 x 11 mm. More
Dimensions: 23 x 37 x 11 mm.
€25,23 €20,85
Scharmüller Drawbar K80 manual, rail 390 mm, pin Ø 25 mm, 3000 kg, black
Scharmüller
Rail width: 390 mm. Detent pin Ø: 25 mm. Guide width: 32 mm. Load capacity: 3000 kg. D-value: 89,3 kN. Plate height: 160 mm. Colour: Black. Overhang:... More
Rail width: 390 mm. Detent pin Ø: 25 mm. Guide width: 32 mm. Load cap...
€1.422,99 €1.176,02 €1.297,49 €1.072,31
You save 9%
Clutch shaft transmission Fiat, IHC, New Holland
€670,98 €554,53 €617,30 €510,17
You save 8%
Danfoss Orbitrol OSPC 160 ON Case IH, Fiat, Ford, New Holland
Danfoss
Type: OSPC 160 ON / 150N1282 More
Type: OSPC 160 ON / 150N1282
€1.119,22 €924,98 €1.029,68 €850,98
You save 8%
ROCKINGER Piton Fix rail width 330 mm, locking pin Ø 25 mm, 4000 kg, 89,3 kN
ROCKINGER
Rail width: 330 mm. Detent pin Ø: 25 mm. Guide width: 32 mm. Load capacity: 4000 kg. D-value: 89,3 kN. Description: Manual Piton-Fix with elevator be... More
Rail width: 330 mm. Detent pin Ø: 25 mm. Guide width: 32 mm. Load cap...
€1.363,65 €1.126,98 €1.100,67 €909,64
You save 19%
ROCKINGER Adapter plate rail width 330 mm, 93,6 kN, 2500 kg, 160 x 100 mm
ROCKINGER
Colour: Black | Hole pattern (mm): 160 x 100 | Guide width (mm): 32 | Detent pin Ø (mm): 25 | D-value (kN): 93,6 | Load capacity (kg): 2500 | Rail wi... More
Colour: Black | Hole pattern (mm): 160 x 100 | Guide width (mm): 32 | ...
€651,63 €538,54 €627,60 €518,67
You save 4%
Walterscheid Adapter plate rail width 330 mm, hole pattern 160 x 100 mm, M21
Walterscheid
Guide width (mm): 32 | Description: The coupling plate is a height-adjustable sliding plate that can only be operated in hitch supports with locking r... More
Guide width (mm): 32 | Description: The coupling plate is a height-adj...
€1.207,08 €997,59 €954,33 €788,70
You save 21%
Gear wheel main shaft 1e gear 21/22 teeth Fiat, New Holland
€49,12 €40,60 €45,19 €37,35
You save 8%
Eaton PTO shaft end piece Case IH, Fiat, Ford, New Holland, Steyr
Eaton
Reference no.: 5185602 More
Reference no.: 5185602
€196,97 €162,79 €181,21 €149,76
You save 8%
Filter dryer Ø 62 mm, 203 mm, connection thread F/M 3/8 inch
Connection thread A: 3/8"" | Connection thread: F/M | Outer Ø (mm): 62 | Length (mm): 203 | Weight (g): 400 | Connection thread E: 3/8"" | Dimensions... More
Connection thread A: 3/8"" | Connection thread: F/M | Outer Ø (mm): 6...
€58,64 €48,46 €53,95 €44,59
You save 8%
LUK Clutch kit without bearing Case IH, New Holland, Steyr
LUK
Contents: Pressure plate 458128043410, clutch plate 458328033210 More
Contents: Pressure plate 458128043410, clutch plate 458328033210
€664,15 €548,88 €611,02 €504,97
You save 8%
Pilot bearing 17 x 47 x 14 mm
Dimensions (mm): 17 x 47 x 14 More
Dimensions (mm): 17 x 47 x 14
€6,59 €5,44

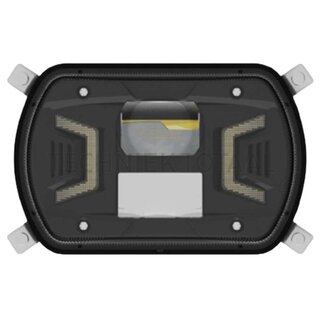

LED main headlight square 155 x 102 x 80,5 mm, H4, 12/24 V, built-in
Protection class: IP69K | Form: Rectangular | Test mark: UKCA, RoHS, CE, ECE R10, R148, R149 | Cable length (m): 0.1 | Power consumption (W): Abblendl... More
Protection class: IP69K | Form: Rectangular | Test mark: UKCA, RoHS, C...
€113,13 €93,50 €104,08 €86,02
You save 8%
Eaton Drive pinion transmission 1,37 kg
Eaton
Reference no.: 5179673 More
Reference no.: 5179673
€228,28 €188,66 €210,02 €173,57
You save 8%
Eaton Gear wheel transmission 1,57 kg Case IH, Fiat, Ford, New Holland
Eaton
Reference no.: 5125013 More
Reference no.: 5125013
€326,26 €269,64 €300,16 €248,07
You save 8%
Gear wheel PTO shaft 14 / 57 teeth Fiat, New Holland
Number of teeth: 14/57. More
Number of teeth: 14/57.
€120,71 €99,76 €111,05 €91,78
You save 8%
Planetary gear transmission 19 / 14 teeth New Holland
Number of teeth: 19/14. More
Number of teeth: 19/14.
€59,07 €48,82 €54,34 €44,91
You save 8%
Sleeve for transmission Fiat, New Holland
€252,83 €208,95 €232,60 €192,23
You save 8%
ROCKINGER Drawbar without sensor rail 330 mm, coupling pin 38 mm, black
ROCKINGER
Rail width: 330 mm. Detent pin Ø: 25 mm. Guide width: 32 mm. Connecting pin: 38 mm. Load capacity: 2000 kg. D-value: 120,0 kN. Colour: Black. Descrip... More
Rail width: 330 mm. Detent pin Ø: 25 mm. Guide width: 32 mm. Connecti...
€1.008,33 €833,33 €776,89 €642,06
You save 23%
Sauermann Drawbar inner part 320 mm, coupling pin 31 mm, 2000 kg
Sauermann
Rail width: 320 mm. Detent pin Ø: 30 mm. Guide width: 20 mm. Connecting pin: 31 mm. Load capacity: 2000 kg. D-value: 80,4 kN. Colour: Black. More
Rail width: 320 mm. Detent pin Ø: 30 mm. Guide width: 20 mm. Connecti...
€716,17 €591,88 €658,88 €544,53
You save 8%
SANDEN Aircon compressor 12 V, pulley Ø 112 mm, 4 grooves, PV4, 190 ccm oil
SANDEN
Fixing: DM | Reference no.: 8279 | Pulley Ø (mm): 112 | Refrigerant: R 134a | Nominal voltage (V): 12 | Connection: PV4 | For compressor: SD7H15 | Oi... More
Fixing: DM | Reference no.: 8279 | Pulley Ø (mm): 112 | Refrigerant: ...
€674,25 €557,23 €620,31 €512,65
You save 8%
LUK Thrust bearing PTO shaft 70 x 110 x 20 mm
LUK
Dimensions (mm): 70 x 110 x 20 More
Dimensions (mm): 70 x 110 x 20
€116,29 €96,11 €106,99 €88,42
You save 8%
Eaton Link wheel Case IH, Fiat, Ford, New Holland
Eaton
Reference no.: 5125007 More
Reference no.: 5125007
€300,25 €248,14 €276,23 €228,29
You save 8%
Eaton Main shaft transmission Case IH, Fiat, Ford, New Holland, Steyr
Eaton
Reference no.: 5161817 More
Reference no.: 5161817
€433,08 €357,92 €398,43 €329,28
You save 8%
HELLA Alternator 14 V / 120 A, pulley Ø 55 mm, 8 grooves
HELLA
Additional information: With V-ribbed belt pulley | Pulley Ø (mm): 55 | Nominal values (V / A): 14 / 120 | No. of grooves: 8 | Charging current (A): ... More
Additional information: With V-ribbed belt pulley | Pulley Ø (mm): 55...
€630,67 €521,21 €485,92 €401,58
You save 23%
PTO shaft end piece 260 mm Ford, Fiat, New Holland
Version: Length 260 mm. More
Version: Length 260 mm.
€110,09 €90,98 €101,28 €83,70
You save 8%
As PTO shaft 540 / 1.000 rpm. Fiat, New Holland
Version: PTO shaft 540/1000 rpm. More
Version: PTO shaft 540/1000 rpm.
€417,09 €344,70 €383,72 €317,13
You save 8%
Scharmüller Drawbar K80 manual, rail 390 mm, pin Ø 25 mm, 4000 kg, black
Scharmüller
Rail width: 390 mm. Detent pin Ø: 25 mm. Guide width: 32 mm. Load capacity: 4000 kg. D-value: 120,2 kN. Plate height: 175 mm. Colour: Black. Overhang... More
Rail width: 390 mm. Detent pin Ø: 25 mm. Guide width: 32 mm. Load cap...
€1.683,34 €1.391,19 €1.598,67 €1.321,21
You save 5%
ROCKINGER Drawbar K80 rail width 330 mm, locking pin Ø 25 mm
ROCKINGER
Rail width: 330 mm. Detent pin Ø: 25 mm. Guide width: 32 mm. Load capacity: 4000 kg. D-value: 102 kN. Description: Manual ball hitch with height-adju... More
Rail width: 330 mm. Detent pin Ø: 25 mm. Guide width: 32 mm. Load cap...
€1.285,58 €1.062,46 €990,51 €818,61
You save 23%
ROCKINGER Drawbar automatic 48,7 mm, 330 / 25 / 32 mm, 2000 kg, 93,6 kN
€2.805,57 €2.318,65 €2.211,65 €1.827,81
You save 21%
LUK Clutch kit with thrust bearing and pilot bearing Case IH, New Holland
LUK
Contents: Pressure plate 458231010511, clutch plate 458328033210, release bearing 458500045900, release bearing 458500028440, pilot bearing 4584100025... More
Contents: Pressure plate 458231010511, clutch plate 458328033210, rele...
€1.315,67 €1.087,33 €1.260,42 €1.041,67
You save 4%
LUK Double clutch 310/310TGU6 40 x 45 mm, 16 splines sintered chain pitch 33 mm
LUK
Dimensions (mm): 40 x 45 16 grooves | web (mm): 33 | Material specifications: Sintered clutch lining More
Dimensions (mm): 40 x 45 16 grooves | web (mm): 33 | Material specific...
€1.193,19 €986,11 €1.147,73 €948,54
You save 4%
Double clutch DuT 310 sintered, 40 x 45 mm, 16 splines
Material specifications: Sintered clutch lining | Additional information: Made in Germany | Dimensions (mm): 40 x 45 16 grooves More
Material specifications: Sintered clutch lining | Additional informati...
€764,21 €631,58 €753,07 €622,37
You save 1%
Showing 1 - 48 of 227

New Holland TD5040 parts for the clutch, driveline and drawbar

A TD5040 that judders when pulling away, or whose clutch only bites at the very top of the pedal, is telling you the driveline needs attention. This page brings together more than 200 replacement parts that fit this New Holland, made by GRANIT and by specialists such as LUK, Eaton, ROCKINGER and GRAMMER.

Clutch and PTO

On the clutch side there are organic clutch plates, double clutch pressure plates, complete clutch kits, thrust bearings for the driving clutch and a replacement clutch cable. For the transmission you will find gear wheels and a PTO input shaft. If the tractor is already split, renew the piston sealing rings and the lift shaft seal while you are there, because reaching them later is no small job.

A workshop tip for the clutch plate: count the splines on the old plate and check the outside diameter before fitting the new one. Always replace the thrust bearing as well, since getting back to it means splitting the tractor again. While everything is apart, look at the flywheel face. Scoring or blue heat marks mean it should be skimmed before the new plate goes on.

Drawbar, seat and cooling

At the rear, much of the wear comes from hitching up. There are automatic drawbars from ROCKINGER and Piton Fix parts for the rail, so a worn pin or hook can be replaced on its own. In the cab, a GRAMMER Compacto seat gives the driver proper support again. Ball joints for the steering, gaskets and radiator caps complete the picture.

Radiator caps are easy to overlook. Once the seal inside hardens, the cooling system can no longer hold pressure and coolant slowly disappears. If your TD5040 runs hot without a visible leak, a new cap is the first and simplest thing to try.

The ball joints deserve a look now and then as well. A split dust boot lets in water and grit, and the joint can be worn out within a season. Replace such a joint complete with its boot and reset the toe-in afterwards. Before swapping the seat, check the bolt pattern on the old mounting so the Compacto seat drops into place without drilling.

Matching the right part

Check the type plate to confirm the machine really is a TD5040, and use the reference number stamped or printed on the old part when comparing clutch plates or gears. The TD5040 belongs to the New Holland TD5000 series. Its sister models have pages of their own, one for the New Holland TD5010 and one for the New Holland TD5020, each showing only the parts for that model. For every other model from the brand, start at New Holland parts.
