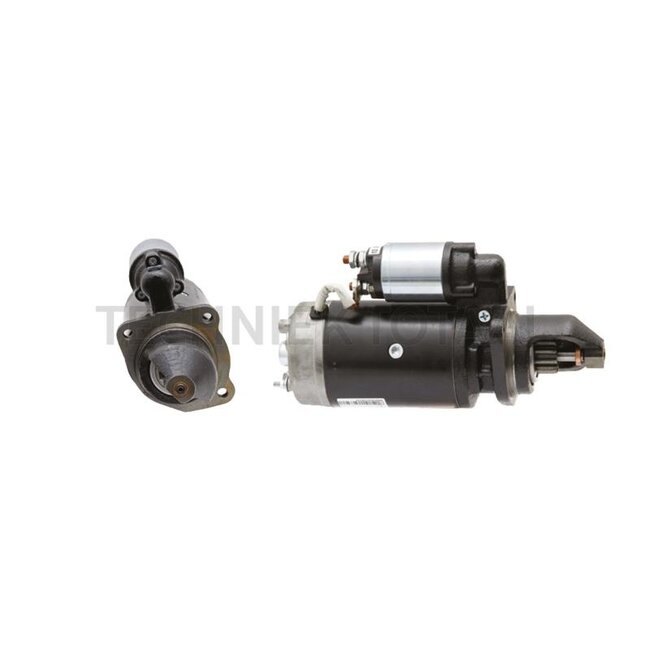

Name: GRANIT Starter motor 12 V, 3,0 kW, 11 teeth, 229,5 mm, Ø 89 mm
Brand: GRANIT
SKU: 376S99595
Price: 248.48 EUR

GRANIT Starter motor 12V 3.0 kW 11 teeth clockwise

Replaces: JST3071

Technical data:

Nominal voltage (V): 12
Nominal power (kW): 3.0
No. of pinion teeth: 11
Holes / PCD (mm): 3 x 10.7 / 127.0
Spacing flange to flywheel (mm): 47.0
Installation length (mm): 229.5
Fitting Ø (mm): 89.0
Installation angle (°): r 45
Direction of rotation: clockwise

Suitable for:

Case IH: CS 68 (3/99-3/04), CS 68 (6/97-3/99), CS 75 (3/99-3/04), CS 75 (6/97-3/99), CS 78 (1/99-1/04), CS 86 (1/99-1/04), CS 94 (1/99-1/04), CS 100 (4/00-7/03), CS 110 (4/00-7/03), CS 110 (4/96-4/00), CS 120 (4/00-7/03), CS 120 (4/96-4/00), CS 130 (4/00-7/03), CS 130 (4/96-4/00), CS 150 (4/00-7/03), CS 150 (4/96-4/00), CVX 120, CVX 130, CVX 150 (7/00-5/03), CVX 170

Steyr: 667, 680, 9105 (4/00-7/03), 9105 (4/96-4/00), 9115 (4/00-7/03), 9115 (4/96-4/00), 9125 (4/00-7/03), 9125 (4/96-4/00), 9145 (4/00-7/03), 9145 (4/96-4/00), M 968 (3/99-3/04), M 975 (3/99-3/04), 9080 M, 9090 M, 9100 M, M 9078 (1/99-1/04), M 9086 (1/99-1/04), M9094 (1/99-1/04)

Ursus: 308, 4512, 4514, C 325, C 328, C 330

Valtra-Valmet: 502, 602, 702, 802, 1102, 703, 803, 903, 1103, 1203, 504, 604, 505, 605, 705, 805, 905, C 1112, 500, 655, 755, 855, 1100

Zetor: 2011, 3011, 3045, 3320, 3340, 3511, 3513, 3545, 4011, 4320, 4340, 4511, 4611, 4712, 4718, 4911, 5011, 5211, 5245, 5320, 5340, 5511, 5516, 5611, 5645, 5647, 5711, 5718, 5745, 5748, 5911, 5945, 6011, 6045, 6211, 6212, 6245, 6320, 6511, 6518, 6522, 6711, 6718, 6745, 6748, 6911, 6918, 6945, 7011, 7045, 7211, 7245, 7711, 7745, 4341
