Fendt FW 120 enthusiasts will find more than 40 vintage tractor parts here that fit this model. Handy when you want to search by type instead of checking lists.
The Fendt FW 120 is a tractor people keep running rather than replace, and that shows in the parts on this page. There are more than 40 of them, from GRANIT and METARO, and they lean towards engine overhauls, brakes and steering rather than extras.
On an older tractor the type plate is often dirty or faded, so clean it and confirm it reads FW 120. If the old part is already out, look for a stamped number on it, for example on bearing shells or gaskets, and compare it with the replacement. For engine parts it also helps to have the engine designation of your tractor to hand.

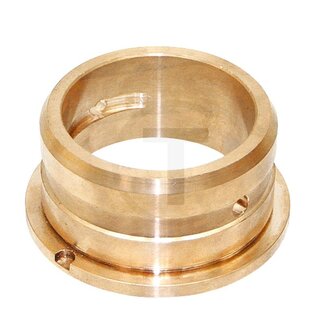

For a rebuild there are main bearings, a piston set, O-rings for the cylinder liners, a cylinder head gasket set per cylinder and a complete gasket set. Smaller seals include an inspection hole cover gasket and a water pipe gasket, alongside a regulator spring and a glow plug.
When replacing the main bearings, mark the bearing caps before taking them off. Each cap must go back in exactly the same place and the same way round, or the crankshaft will bind or a bearing will wear early. Oil the new shells with engine oil as you fit them so the engine does not run dry on its first start.
If the FW 120 is reluctant to start in the cold, the glow plug is the obvious first suspect. A test lamp or multimeter quickly shows whether current flows through it. Remove an old glow plug with the engine warm if you can, and never force the thread, because drilling a broken one out of the head is a miserable job.
When replacing a ball joint on the track rod, count the turns as you unscrew it or measure the position of the old joint. Set the new one to the same length and the toe-in will be close, needing only a final adjustment.
The foot brake is covered by brake linings. Replace the linings on both sides at the same time, or the tractor will pull to one side under braking. There are sealing rings for the PTO shaft stub and ball joints for the track rod. For the electrics you will find an alternator with a built-in regulator, supplied as an exchange part, and a starter motor. For the driver there is a seat bucket with backrest.
For every other Fendt model, go to all Fendt parts, where each type, including the other older tractors, has a page of its own.
