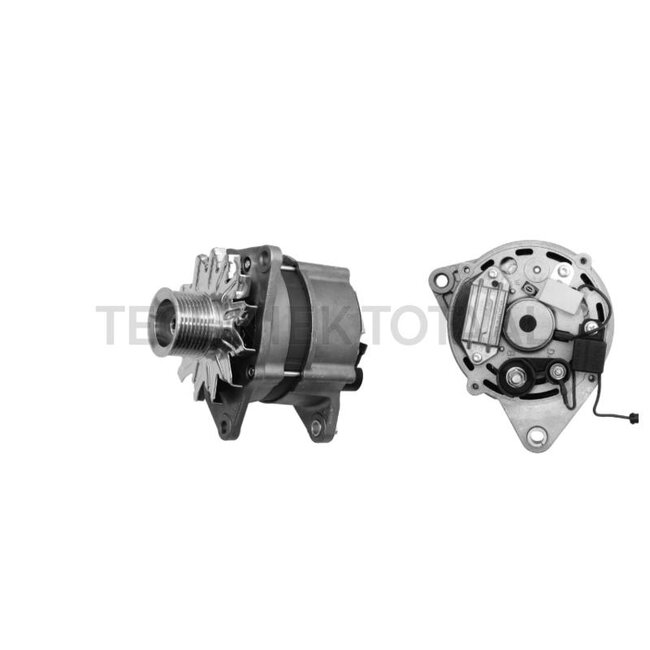

MAHLE Alternator 14 V / 120 A

Replaces: MG 223

Technical data:

• Installation angle (°): r 60
• Nominal voltage (V): 14
• Nominal values (V / A): 14 / 120
• Direction of rotation: ↻
• Charging current (A): 120
• Additional information: Dust-tight, with toroidal coil, coil (D)
• Mounting L / d / R (mm): 82,0 / 10,2 / 86,0
• Pulley Ø (mm): 55,0
• Form: A
• Mounting hole Ø / R (mm): 10,2 / 86,0
• Belt width (mm) / type: PV x 8
• Flange size (mm): 82,0
• Pulley spacing (mm): 37,1

Suitable for:

Case IH: CVX 1195, Farmall 75A Tier 3 (11/12-), Farmall 85A Tier 3 (11/12-), Farmall 95A Tier 3 (12/12-), Farmall 105A Tier 3 (11/12-), Farmall 115A Tier 3 (11/12-12/15), Farmall 55C (9/11-), Farmall 65C (9/11-), Farmall 75C (9/11-), Farmall 95C (12/12-), Farmall 120C, Farmall 95U Tier 4 (7/12-), Farmall 105U Tier 4 (7/12-), Farmall 115U Tier 4 (7/12-), JX 60 Tier 3 (12/08-12/13), JX 70, JX 80, JX 90, JX 95 Tier 3 (1/07-12/14), JX 1060 C (12/03-6/08), JX 1070 C (12/03-), JX 1075 C (12/03-), JX 1085C, JX 1095C (10/05-), JX 1070U, JX 1080U, JX 1090U, JX 1100U, JXU 75, JXU 85, JXU 95, JXU 105, JXU 115, Luxxum 120, Quantum 65C, Quantum 75C, Quantum 85C, Quantum 95C, Quantum 75F, Quantum 85F, Quantum 95F, Quantum 105F, Quantum 75N, Quantum 85N, Quantum 95N, Quantum 105N, Quantum 65V, Quantum 75V, Quantum 85V, Quantum 95V, Quantum 105V

Komatsu: WB93 R-8, WB93 S-8, WB97 R-8, WB97 S-8, WB93 R-8EO, WB93 S-8EO

New Holland: T4.55 (9/11-), T4.55 Tier 4a (5/14-), T4.65 (9/11-), T4.65 Tier 4a (5/14-), T4.75 (5/14-), T4.75 (6/13-), T4.75 HI-LO (3/14-), T4.75 HI-LO (6/13-), T4.75 Tier 4a (3/14-), T4.85 (3/14-), T4.85 (12/12-), T4.85 HI-LO (3/14-), T4.85 HI-LO (12/12-), T4.95 (3/14-), T4.95 (12/12-), T4.95 HI-LO (3/14-), T4.95 HI-LO (12/12-), T4.105 (3/14-), T4.105 (12/12-), T4.105 HI-LO (3/14-), T4.105 HI-LO (12/12-), T4.115 (3/14-), T4.115 (6/13-), T4.115 HI-LO (3/14-), T4.115 HI-LO (6/13-), T5.85, T5.95 Electro Command Tier 4 (2/13-), T5.95 Tier 4 (1/12-), T5.100, T5.105 Electro Command Tier 4 (2/13-), T5.105 Tier 4 (7/12-), T5.110, T5.115 Electro Command Tier 4 (2/13-), T5.115 Tier 4 (7/12-), T5.120, T4020, T4030, T4040, T4050, T4060 F (2/12-), T4060 N (2/12-), T4060 V (2/12-), T5030, T5040, T5050, T5060, T5070, TD5.85, TD5.95, TD5.105, TD5.115, TD4020F, TD4030F, TD4040F, TD5010, TD5020, TD5030, TD5040, TD5050, TK80, TK100, TK4020, TK4030, TK4040, TK4050, TK4060, TL70A, TL80A, TL90A, TL100A, TN60, TN70, TN75, TN85, TN95, TVT195, T5.110 - DUAL COMMAND TRACTOR - CAB - STAGE V (EU) (06/21 - ), T5.110 - DUAL COMMAND TRACTOR - L/CAB - STAGE V (EU) (06/21 - ), T5.110 - DUAL COMMAND TRACTOR - NARROW - STAGE V - CAB MY24 (02/25 - ), T5.110 - DUAL COMMAND TRACTOR - SS - CAB - STAGE V (EU) (06/21 - ), T5.110 - DUAL COMMAND TRACTOR - SS - NARROW - STAGE V - CAB MY24 (07/24 - ), T5.110 - DUAL COMMAND TRACTOR 1.5 - WIDE - STAGE V - CAB MY24 (02/25 - ), T5.110 - DUAL COMMAND TRACTOR, CL.1.5 FRONT AXLE - CAB - STAGE V (06/21 - ), T5.110 - DUAL COMMAND TRACTOR, CL.1.5 FRONT AXLE - L/CAB - STAGE V (06/21 - ), T5.110 - ELECTRO COMMAND TRAKTOR - TIER 4B (07/17 - 12/22), T5.110 - ELECTRO COMMAND TRAKTOR - TIER 4B. (11/15 - 12/17), T5.110 - ELECTROCOMMAND TRACTOR - STAGE V (EU) (10/21 - ), T5.110 - POWER SHUTTLE TRACTOR - CAB - STAGE V (EU) (06/21 - ), T5.110 - POWER SHUTTLE TRACTOR - L/CAB - STAGE V (EU) (06/21 - ), T5.110 - POWER SHUTTLE TRACTOR - W/CAB - STAGE V (EU) (09/22 - ), T5.110 D, T5.110S - POWER SHUTTLE TRACTOR - W/CAB - STAGE V (EU) (07/22 - )

Steyr: 6195 CVT (3/06-), 360 Kompakt, 370 Kompakt, 375 Kompakt, 485 Kompakt, 495 Kompakt, 4055 S Kompakt Tier 4a (5/14-), 4065 Kompakt (4/08-), 4065 S Kompakt (9/11-), 4065 S Kompakt Tier 4a (5/14-), 4075 Kompakt (4/08-), 4075 Kompakt HI-LO Tier 4a (3/14-), 4075 Kompakt Tier 4a (3/14-), 4085 Kompakt (1/07-), 4085 Kompakt HI-LO Tier 4a (3/14-), 4085 Kompakt HI-LO Tier 4a (12/12-), 4085 Kompakt Tier 4a (3/14-), 4085 Kompakt Tier 4a (12/12-), 4095 Kompakt (1/07-), 4095 Kompakt HI-LO Tier 4a (3/14-), 4095 Kompakt HI-LO Tier 4a (12/12-), 4095 Kompakt Tier 4a (3/14-), 4095 Kompakt Tier 4a (12/12-), 4105 Kompakt HI-LO Tier 4a (3/14-), 4105 Kompakt HI-LO Tier 4a (12/12-), 4105 Kompakt Tier 4a (3/14-), 4105 Kompakt Tier 4a (12/12-), 4115 Kompakt HI-LO Tier 4a (3/14-7/17), 4115 Kompakt Tier 4a (3/14-10/16), Multi 4095 FM Tier 4 (5/13-), Multi 4095 Tier 4 (5/13-), Multi 4100, Multi 4105, Multi 4115 FM Tier 4 (5/13-), Multi 4115 Tier 4 (5/13-)

Wacker Neuson: ST35, ST45, SW24, SW28, WL60, WL60 T4F, WL60T, WL70, WL70 T4F

Weidemann: 4080, 4080 T, 5080, 5080 T
