Looking for parts for your Fendt Farmer 307 (Typ 307) tractor? In this category, you'll find everything you need for the maintenance and repair of your vehicle.
The Fendt Farmer 307 with the type designation Type 307 is the three-cylinder variant of the updated Farmer 300 series, built from 1993 to 1998. It is therefore a clearly different model from the earlier 307 LS/LSA (Type 175), which had already been in production since 1985. The Type 307 was equipped with a newer engine and a 21/21 shuttle transmission as standard, distinguishing it from its predecessor. A total of 483 units were built (type designation T 307/21, four-wheel-drive version).
The tractor is powered by an MWM TD 226.B-3, a water-cooled four-stroke three-cylinder inline engine with turbocharger and direct injection. The engine features overhead valves, pressure circulation lubrication, a dry air filter with pre-cleaner, distributor injection pump, exhaust turbocharger, and thermostat-controlled dual-circuit cooling. Displacement is 3,116 cm³ (bore x stroke: 105 x 120 mm). Rated engine speed is 2,250 rpm, output is approximately 75 hp (approx. 55 kW), and maximum torque is 306 Nm at 1,500 rpm. The fuel tank capacity is approximately 80 litres.
The Type 307 comes standard with a fully synchronized 21/21 transmission featuring electro-hydraulic shuttle shifting (EHS). This provides 21 forward and 21 reverse gears. Maximum speed is 40 km/h. Driving speeds range from 1.40 km/h (1st forward gear) up to 40 km/h. This makes the Type 307 more versatile than the previous generation, which was still supplied with a 15/4 or 21/6 gearbox.
The hydraulic system is a Fendt block-type control hydraulic system with electronically controlled rear linkage (EHR) and top-link sensing. The three-point linkage is Category II and was optionally available with a quick-coupler system. Pump capacity is 71 l/min at 180 bar. Maximum rear lifting force is 4,420 kp. Front hydraulics (Cat. II) were optionally available with two hydraulic cylinders of 28 mm diameter and 162 mm stroke, with a maximum lifting force of 24.6 kN.
The PTO can be switched between 540, 750, and 1,000 rpm. A ground-speed PTO was available on request. Front and rear axle engagement is electro-hydraulically controlled.
Standard tyre sizes are 13.6R24 at the front and 16.9R34 at the rear. The parking brake is a mechanical internal shoe brake on the differential output shafts. An air brake system was optionally available. At 40 km/h, front wheel brakes are mandatory.
The Farmer 307 Type 307 features a sound-insulated comfort cab with a noise level of 72 dB(A), an air-suspended seat, tinted glass, and an opening roof hatch. The cab was also available in a low-profile version. Standard equipment includes heating with a three-speed blower, interior lighting, radio preparation kit with two speakers, electrically adjustable exterior mirrors, digital instruments, and rear work lights. Optional equipment included air conditioning, front work lights, and additional roof ventilation.
The Fendt Farmer 307 Type 307 was built from 1993 to 1998 under the type designation T 307/21. A total of 483 units were produced, all with four-wheel drive and the 21/21 EHS transmission. Its successor was the Farmer 307 C (Type 117), introduced in autumn 1997 with a Deutz four-cylinder engine.

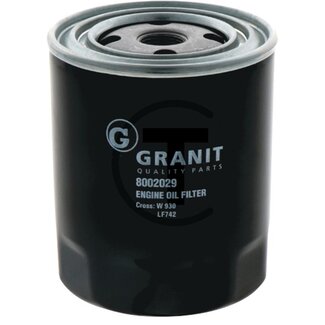

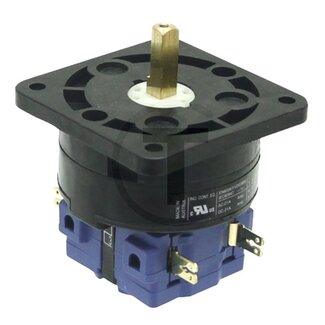

We supply a comprehensive range of parts for the Fendt Farmer 307 Type 307, including engine parts, filters, electrical components, hydraulic components, brake parts, exhaust parts, and cab components. We work together with brands such as Granit, Agco Parts, Bosch, Hella, Mahle, Mann-Filter, Kramp, Grammer, Cobo, Scharmüller, and Walterscheid.
