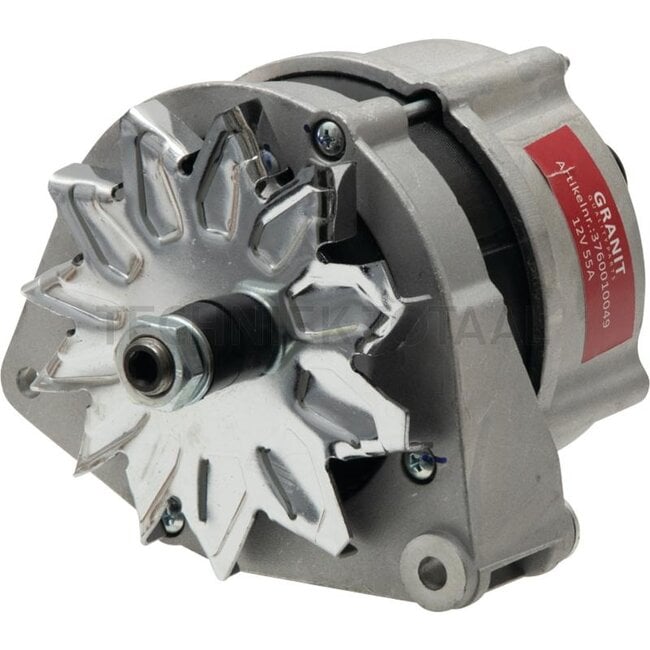

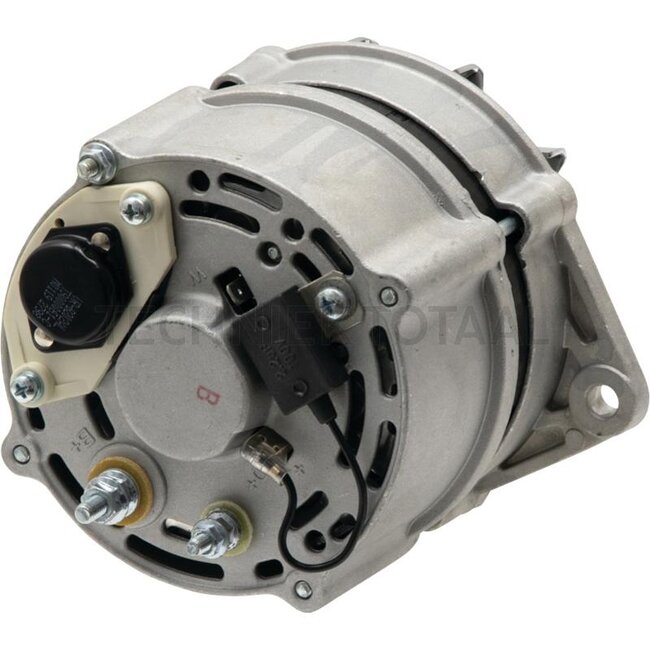

Name: GRANIT Alternator 14 V, 55 A, flange 56 mm, Deutz-Fahr, Fendt | LS12177-000-ZPT, G205900010010
Brand: GRANIT
SKU: 3760010049
Price: 153.72 EUR

GRANIT Alternator 14 V, 55 A, flange 56 mm, Deutz-Fahr, Fendt | LS12177-000-ZPT, G205900010010

GRANIT Alternator 14 V / 55 A

Replaces: LS12177-000-ZPT

Technical data:

Belt width (mm) / type: -
Charging current (A): 55
Nominal values (V / A): 14 / 55
Flange size (mm): 56,0
Installation angle (°): l 60
Pulley spacing (mm): -
Additional information: With W connection, with fan wheel
Pulley Ø (mm): -
Mounting L / d / R (mm): 56,0 / 8,5 / 86,0
Form: B
Direction of rotation: ↻
Belt tension hole Ø / R (mm): 8,5 / 80,0
Mounting hole Ø / R (mm): 8,5 / 86,0
Nominal voltage (V): 14

Suitable for:

Deutz-Fahr: AgroCompact 3.30, AgroCompact 3.50, AgroCompact 3.70, AgroCompact 3.90, AgroPrima 4.31, AgroPrima 4.51, AgroPrima 4.56, AgroPrima 6.06, AgroPrima 6.16, AgroStar 4.61, AgroStar 4.68, AgroStar 4.71, AgroStar 4.78, AgroStar 6.08, AgroStar 6.11, AgroStar 6.21, AgroStar 6.28, AgroStar 6.31, Agrosun 100, Agrosun 120, Agrosun 140, AgroXtra 3.57, AgroXtra 4.07, AgroXtra 4.17, AgroXtra 4.47, AgroXtra 4.57, AgroXtra 6.07, AgroXtra 6.17, DX 3.10, DX 3.30, DX 3.50, DX 3.60, DX 3.65, DX 3.70, DX 3.75, DX 3.90, DX 4.10, DX 4.17, DX 4.30, DX 4.50, DX 4.57, DX 4.70, DX 6.05, DX 6.10, DX 6.30, Farmliner 3370

Fendt: Farmer 240 S (Typ 294), Farmer 250 S (Typ 295), Farmer 250 V (Typ 205), Farmer 260 P (Typ 246), Farmer 260 S (Typ 296), Farmer 260 V (Typ 206), Farmer 270 P (Typ 247), Farmer 270 V (Typ 207), Farmer 275 S (Typ 297), Farmer 275 V (Typ 208), Farmer 280 P (Typ 248), Farmer 280 S (Typ 297), Farmer 280 V (Typ 208)
