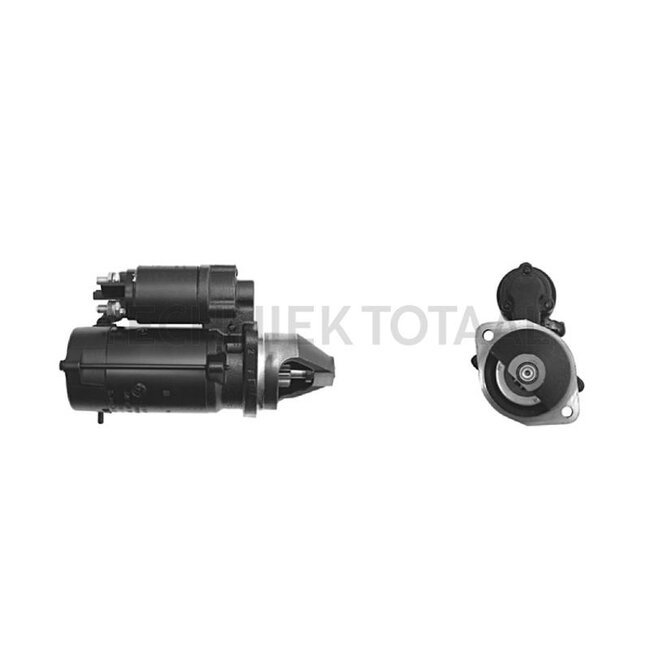

Name: MAHLE Gear reduction starter 12V 3,2 kW, 10 teeth clockwise
Brand: MAHLE
SKU: 379IS1059
Price: 317.51 EUR

MAHLE Starter motor with reduction gear 12V 3.2 kW 10 teeth clockwise

Replaces: MS 430

Technical data:

Nominal voltage (V): 12
Nominal power (kW): 3.2
No. of pinion teeth: 10
Holes / PCD (mm): 2 x 10.5 / 105.0
Spacing flange to flywheel (mm): 38.0
Installation length (mm): 197.6
Fitting Ø (mm): 82.5
Installation angle (°): l 45
Direction of rotation: clockwise

Suitable for:

John Deere: 5303, 5403, 5055E, 5075E, 5080G, 5080GF, 5080GV, 5090G, 5090GF, 5090GH, 5090GV, 5100GF, 5100GV, 5070M, 5075M, 5080M, 5090M, 5100M, 5080R, 5080RN, 5090R, 5090RN, 5100R, 5100RN, 6510L, 6520L, 2510, 5010, 1133, 1144, 1155, 1157, 1158, 1166, 1169, 1174, 1177, 820, 920, 1020, 1120, 1520, 2020, 2120, 3120, 5520N, 2254, 830, 930, 1030, 1130, 1530, 1630, 1630VU, 1830, 2030, 2130, 3030, 3130, 1035 (nur für Spanien), 1635 (nur für Spanien), 3135 (nur für Spanien), 840, 940, 1040, 1140, 1640, 1840, 2040, 2040S, 2140, 3040, 3140, 3340 (nur für Spanien), 3640, 1745F, 1845F, 2345F, 1350, 1550, 1750, 1850, 1950, 2250, 2450, 2650, 2850, 3050, 3150, 3350, 3650, 925, 932, 935, 942, 945, 952, 955, 965, 968, 975, 985, 1032, 1042, 1052, 1055, 1065, 1068H, 1072, 1075, 1085, 2440, 2520, 5300, 5400, 5500, 5310, 5310N, 5410, 5510, 5510N, 5215, 5315, 5415, 5515, 5615, 5320, 5520, 5220, 5420N, 5720, 5820, 6100, 6200, 6300, 6400, SE6100, SE6200, SE6300, SE6400, 6205, 6010, 6110, 6210, 6310, 6410, 6510S, SE6010, SE6110, SE6210, SE6310, SE6410, 6215, 6215 (PC4367), 6020, 6120, 6120 (PC4356), 6220, 6320, 6320 (PC4357), 6420, 6420 (PC4357), 6420S, SE6020, SE6120, SE6220, SE6320, SE6420, 2054
