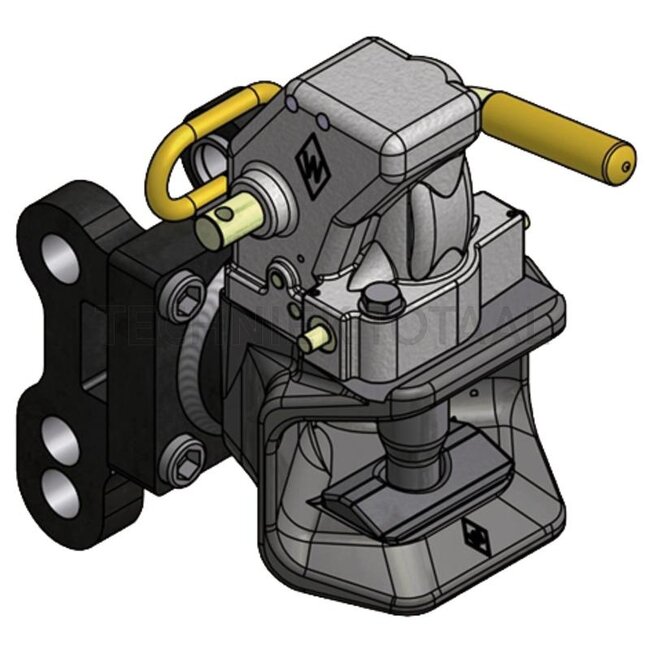

Walterscheid Hitch
Replaces: 8005101
Technical data:
- Colour: Black
- Load capacity (kg): 2000
- Lock: Automatic, spherical hitch bolt
- Included in delivery: Includes 1x coupling 770KU2000/758NB. Locking pins are not included and must be ordered as required.
- Internal width (mm): 68
- Width (mm): 128
- Description: This product is an automatic trailer hitch. The jaw dimensions and area of application comply with DIN 11028, RREG 2009/144/EC, VO (EU) 2015/208, UN ECE R147 and class c40. It is designed with a lever trigger system, i.e. the coupling process is triggered by moving a drawbar eye into the jaw and pressing back the trigger lever. The hitch is normally closed and locked. This version has a spherical hitch bolt (D: 37 mm) and can be pivoted 360°. The torque required for this purpose is 100 to 150 Nm. The lockable trailer hitch is only offered as a height-adjustable inner part and can only be operated in hitch supports with quick height adjustment. The areas of application include use on agricultural or forestry vehicles, self-propelled work machines and trailers. Advantages: made of forged material, hitch bolt can be freely rotated 360 degrees
- Connecting pin (mm): 38
- D-value (kN): 65,6
- Hole spacing (mm): 100/29
- Assembly notes: Suitable for drawbar eyes according to DIN 11026 (ISO 5692-2)/DIN 11043/DIN 74054 (ISO 8755)/DIN 9678 (ISO 5692-1). The coupling is suitable for two different mounting situations. As standard, it is designed for mounts on the vehicle with a spacing of 128 mm. By swapping the right and left bearing plates during assembly, it can also be used for mounts with 138 mm spacing.
- Locking pin Ø (mm): 25
Suitable for:
Deutz-Fahr: D 5006, D 6006, D 6806, D 7006, D 7206, D 8006, D 9006, D 10006, D 13006, D 16006, D 6007, D 6207, D 6507, D 6807, D 7807, AgroCompact 3.90, AgroPrima 4.31, AgroPrima 4.51, AgroPrima 4.56, AgroPrima 6.06, AgroPrima 6.16, AgroStar 4.61, AgroStar 4.68, AgroStar 4.71, AgroStar 4.78, AgroStar 6.08, AgroStar 6.11, AgroStar 6.21, AgroStar 6.28, AgroStar 6.31, AgroStar 6.38, AgroStar 6.61, AgroXtra 3.57, AgroXtra 4.07, AgroXtra 4.17, AgroXtra 4.47, AgroXtra 4.57, AgroXtra 6.07, AgroXtra 6.17, DX 80, DX 85, DX 86, DX 90, DX 92, DX 100, DX 110, DX 120, DX 140, DX 145, DX 160, DX 230, DX 250, DX 3.10, DX 3.30, DX 3.50, DX 3.60, DX 3.65, DX 3.70, DX 3.75, DX 3.80, DX 3.90, DX 4.10, Intrac 6.05, Intrac 6.30, Intrac 6.60, Intrac 2002, Intrac 2003, Intrac 2004, Intrac 2005, Intrac 2006
