Massey Ferguson 7718/S tractor parts & technical data

There are more than 130 matching parts for the Massey Ferguson 7718/S of the 7700/S series on this page, from trailer couplings to lighting and electrics.

137 parts found for Massey Ferguson 7718/S
Show:
Scharmüller Drawbar JSV ball 50 rail 325 mm, pin Ø 25 mm, 250 kg, black
Scharmüller
Rail width: 325 mm. Guide width: 26 mm. Detent pin Ø: 25 mm. Load capacity: 250 kg. D-value: 31 kN. Overhang: 180 mm. Plate height: 133 mm. Hole: M20... More
Rail width: 325 mm. Guide width: 26 mm. Detent pin Ø: 25 mm. Load cap...
€1.076,56 €889,72 €952,10 €786,86
You save 12%
Scharmüller Forced steering double-sided 2 ton, K50 black Claas, Massey Ferguson
Scharmüller
Steering power (t): 2 | Colour: Black | Lock: K50 | Assembly notes: Both ends | Description: Approved for steering forces up to 20 kN (2 t) More
Steering power (t): 2 | Colour: Black | Lock: K50 | Assembly notes: Bo...
€985,70 €814,63

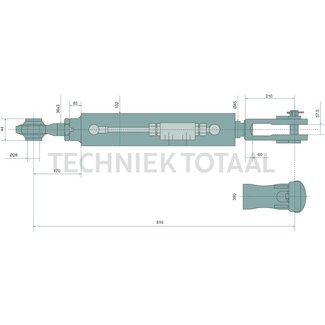

Hydraulische Hubstrebe clevis / ball joint, 810 mm, Ø 102 mm
L (mm): 810 | S (mm): 44 | S1 (mm): 37,5 | C (mm): 45 | To fit: Massey Ferguson, Challenger | Type: Gabelgelenk / Kugelgelenk | D (mm): 102 | A (mm): ... More
L (mm): 810 | S (mm): 44 | S1 (mm): 37,5 | C (mm): 45 | To fit: Massey...
€701,05 €579,38 €665,95 €550,37
You save 5%
Scharmüller Adapter plate 255 mm rail, guide 32 mm, hole pattern 140 x 80 mm
Scharmüller
Colour: Verkehrs Grau | Detent pin Ø (mm): 25 | Pin Ø (mm): 16 | Guide width (mm): 32 | Hole pattern (mm): 140 x 80 | Rail width (mm): 255 | Plate h... More
Colour: Verkehrs Grau | Detent pin Ø (mm): 25 | Pin Ø (mm): 16 | Gui...
€536,25 €443,18
Hydraulic top link cat. 2/25,4 - 3/32, 610 - 795 mm Massey Ferguson
Adjustable: Yes | Type: Tail hook/clevis joint | Top link type: hydraulic | F (mm): 610 / 795 | Cylinder Ø inner E (mm): 80 | Max. power kW (PS): 135... More
Adjustable: Yes | Type: Tail hook/clevis joint | Top link type: hydrau...
€588,02 €485,97 €558,60 €461,65
You save 5%
Scharmüller Automatic hitch adjustable, rail 390 mm, pin 31 mm, 120 kN
Scharmüller
Lock: Automatic | Connecting pin (mm): 31 | D-value (kN): 120,0 | Rail width (mm): 390 | Detent pin Ø (mm): 25 | Load capacity (kg): 2500 | Descripti... More
Lock: Automatic | Connecting pin (mm): 31 | D-value (kN): 120,0 | Rail...
€1.114,70 €921,24
Scharmüller Drawbar frame 10 kN, rail width 200 mm, nose weight 350 kg
Scharmüller
Version: Standard | Category: Bearing supports | Guide width (mm): 25 | Rail width (mm): 200 | D-value (kN): 10 | Colour: Black | Detent pin Ø (mm): ... More
Version: Standard | Category: Bearing supports | Guide width (mm): 25 ...
€643,75 €532,02
Scharmüller Drawbar frame standard Piton fix, 97,1 kN, 3000 kg, rail 390 mm
Scharmüller
Rail width (mm): 390 | Lock: Piton Fix manual | Guide width (mm): 32 | Colour: AGCO grey | D-value (kN): 97,1 | Category: Bearing supports | Version: ... More
Rail width (mm): 390 | Lock: Piton Fix manual | Guide width (mm): 32 |...
€1.504,56 €1.243,44
Scharmüller Drawbar frame standard ball 80, 104 kN, 4000 kg, rail 390 mm
Scharmüller
Detent pin Ø (mm): 25 | Colour: AGCO grey | Lock: Ball 80 manual | Rail width (mm): 390 | Category: Bearing supports | Version: Standard | D-value (k... More
Detent pin Ø (mm): 25 | Colour: AGCO grey | Lock: Ball 80 manual | Ra...
€2.240,25 €1.851,45
Scharmüller Drawbar retrofit kit 80 x 50 mm, 89,3 kN, 2200 kg, cat. 2, AGCO gray
Scharmüller
Mounting position: 2 | Colour: AGCO grey | Width (mm): 80 | Load capacity (kg): 2200 | Version: Retrofit kits | D-value (kN): 89,3 | Height (mm): 50 |... More
Mounting position: 2 | Colour: AGCO grey | Width (mm): 80 | Load capac...
€597,55 €493,84
Connector head M16 x 1,5 yellow, brake line, vehicle
Connection thread: M16 x 1.5 | Version: Yellow, brake line | Menke no.: 55929 More
Connection thread: M16 x 1.5 | Version: Yellow, brake line | Menke no....
€22,55 €18,64
Scharmüller Forced steering ball 80, 2 ton, 140 x 80 mm, lock K50
Scharmüller
Steering power (t): 2 | Colour: Black | Hole pattern (mm): 140 x 80 | Lock: K50 | Assembly notes: Both ends | Description: Approved for steering force... More
Steering power (t): 2 | Colour: Black | Hole pattern (mm): 140 x 80 | ...
€1.104,73 €913,00 €977,00 €807,44
You save 12%
LED work lights spotlight 4400 lm, 56 W, 10 - 30 V, 160 x 100 x 68 mm
Bulb: LED | Light colour (K): 5700 | Depth (mm): 68 | EMC: CISPR 25 class 4 | Width (mm): 160 | Theoretical luminous flux (lm): 5320 | Housing materia... More
Bulb: LED | Light colour (K): 5700 | Depth (mm): 68 | EMC: CISPR 25 cl...
€76,82 €63,49 €72,95 €60,29
You save 5%
MAHLE Starter motor 12 V, 3,0 kW, 10 teeth clockwise, 244 mm, Ø 89 mm
€468,19 €386,93 €292,60 €241,82
You save 38%
Scharmüller Adapter plate rail width 325 mm, hole pattern 140 x 80 mm, M16
Scharmüller
Load capacity: 2000 kg. D-value: 83,9 kN. Rail width: 325 mm. Hole pattern: 140 x 80 mm. Guide width: 26 mm. Plate height: 133 mm. Thread: M16. Colour... More
Load capacity: 2000 kg. D-value: 83,9 kN. Rail width: 325 mm. Hole pat...
€531,07 €438,90 €469,65 €388,14
You save 12%
Scharmüller Ball hitch K80 333 / 25 / 38 mm, 2000 kg, 83,9 kN
Scharmüller
Rail width: 333 mm. Detent pin Ø: 25 mm. Guide width: 38 mm. Load capacity: 2000 kg. D-value: 83,9 kN. Plate height: 160 mm. Colour: Black. Overhang:... More
Rail width: 333 mm. Detent pin Ø: 25 mm. Guide width: 38 mm. Load cap...
€1.322,75 €1.093,18
GRANIT Radiator 470 x 459 mm Massey Ferguson 6613-7726/S
GRANIT
To fit as: Massey Ferguson Series 6600: 6613 Dyna 4, 6613 Dyna 6, 6614 Dyna 6, 6614 Dyna VT, 6615 Dyna 4, 6615 Dyna 6, 6615 Dyna VT, 6616 Dyna 6, 6616... More
To fit as: Massey Ferguson Series 6600: 6613 Dyna 4, 6613 Dyna 6, 6614...
€1.129,20 €933,22
Cover fender
€18,15 €15,00
Hydraulic top link cat. 3, 640 - 876 mm, stroke 236 mm, 11 ton
A cat.: 3 / 32. B cat.: 3 / 32. F: 640 / 876 mm. Piston rod Ø D: 45 mm. Cylinder Ø inner E: 90 mm. Lifting force: 11 t. Tensile force: 8 t. Adjustab... More
A cat.: 3 / 32. B cat.: 3 / 32. F: 640 / 876 mm. Piston rod Ø D: 45 m...
€658,30 €544,05 €625,35 €516,82
You save 5%
Pivot left Massey Ferguson, Challenger
€612,81 €506,45 €554,40 €458,18
You save 10%
GRANIT Pivot fender bracket right Massey Ferguson
€567,36 €468,89 €513,30 €424,21
You save 10%
Spring right fender Fendt, Massey Ferguson
Version: Suitable for Fendt pivoting mudguards. More
Version: Suitable for Fendt pivoting mudguards.
€36,40 €30,08
Scharmüller Drawbar K80 manual, rail 322 mm, pin Ø 22 mm, 3000 kg, black
Scharmüller
Rail width: 322 mm. Detent pin Ø: 22 mm. Guide width: 30 mm. Load capacity: 3000 kg. D-value: 89,3 kN. Plate height: 150 mm. Colour: Black. Overhang:... More
Rail width: 322 mm. Detent pin Ø: 22 mm. Guide width: 30 mm. Load cap...
€1.203,95 €995,00 €1.064,75 €879,96
You save 12%
Showing 49 - 72 of 137

Massey Ferguson 7718/S parts for linkage, hitch and engine

A Massey Ferguson 7718/S usually carries heavy implements on the three point linkage and pulls a trailer from the hitch. That is reflected in the more than 130 parts we list for this model, from Scharmüller, GRANIT, Walterscheid, HELLA and MAHLE.

Hydraulic top link

A hydraulic top link lets you set the pitch of an implement from the cab. When fitting one, make sure the ball category at each end matches both the linkage and the implement, and bleed the cylinder by running it fully in and out a few times before starting work. Worn pins with play in them will shorten the life of the new top link, so check those too.

Drawbar, automatic hitch and forced steering

For coupling up there are drawbars and a drawbar frame, automatic hitches, ball hitches and adapter plates. If you pull a trailer with a steered axle, you need forced steering parts, such as the inner section that connects the tractor's ball to the trailer's steering rod. For air brakes there are air hoses and connector heads. A hissing connector head almost always means a worn rubber seal inside, and it makes sense to renew the red and yellow ones together.

Engine, cab and fenders

Under the bonnet you will find thermostats, temperature sensors and an air conditioning compressor. For any work on the air conditioning, have the refrigerant recovered and recharged by a certified workshop. LED work lamps, fuel tank caps and pivots for the swivelling fender brackets are listed as well. Those pivots wear on tractors that do a lot of road work.

LED work lamps are a sensible replacement on a tractor like the 7718/S. They draw little current, last a long time and spread plenty of light around the machine. Mount them where vibration is low and route the cable so it never rubs on a sharp edge, as that is where insulation wears through first. If you add several lamps, check that the existing switch and fuse can take the extra load, using a separate relay if needed.

Matching the part and other /S models

The type plate gives the model and serial number. Thermostats, sensors and work lamps usually carry a reference number you can check against the product description.

The 7718/S belongs to the 7700/S series. Two of its siblings have their own pages, the Massey Ferguson 7719/S and the Massey Ferguson 7720/S, each showing only what is approved for that model. The 7715/S is part of the same series. For every model from the brand, go to Massey Ferguson parts.
