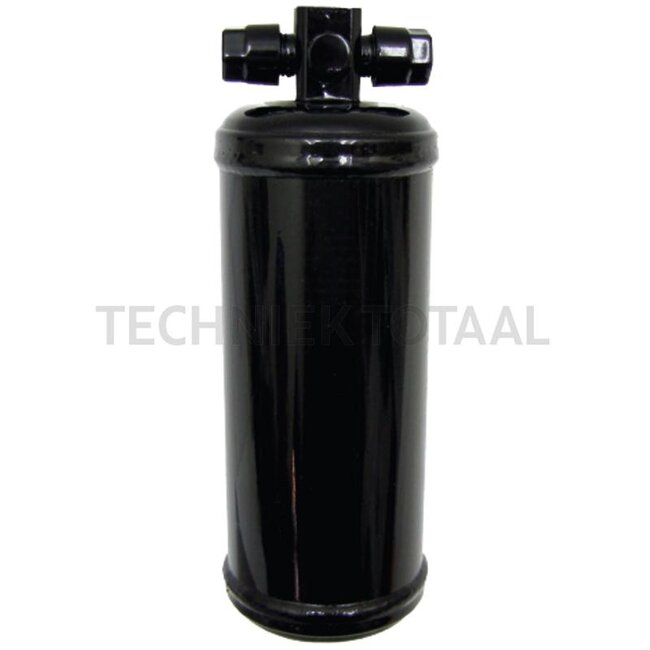

GRANIT Filter dryer

Replaces: 2700-83201, 800055N

Technical data:

• Outer Ø (mm): 76
• Connection: O-ring A = male thread 3/8"" - 18UNF O-ring B = male thread 3/8"" - 18UNF Pressure switch thread: 1 3/8"" - 24 O-ring
• Dimensions (mm): -
• Material: Steel
• Connection thread A: 11
• Connection thread E: 11
• Thread: 6 3/8""
• Reference no.: 800055N
• Length (mm): 228
• Connection thread: M

Suitable for:

Case IH: 525, 527, 2470, 2870, 2090, 2290, 2390, 4490, 4690, 4890, 1294, 1394, 1494, 1594, 1694, 2094, 2294, 2394, 2594, 3294, 3394, 3594, 1896, 2096, Steiger 9170 (12/86-8/88), Steiger 9180 (12/86-8/88), WD1203, WD1903, WD2303, WDX901, WDX1101, WDX1202, WDX1701

JCB: JS 160 ( Izuzu JJ1 92kw T3 ( 1612501-1704999 )), JS 260 ( Isuzu 4HK1 140kw T3 (1504700-2889575 )), JS 290 ( Isuzu Ah-6HK1 161kw T3 (1421599-2672800 )), 8035 (Perkins 403D-15/-17), Fastrac 125, Fastrac 130, Fastrac 135, Fastrac 145, Fastrac 150, Fastrac 155, Fastrac 185, Fastrac 1115, Fastrac 1125, Fastrac 1135, Fastrac 2115, Fastrac 2125, Fastrac 2135, Fastrac 2150

Laverda: AL 519

Massey Ferguson: 354, 372, 375, 382, 383, 384, 390, 393, 396, 398, 399, 365, 3050, 3060, 3065, 3070, 3075, 3080, 3085, 3090, 3095, 3115, 3120, 3125, 3140, 3610, 3630, 3650, 3660, 3670, 3680, 3690, 3635, 3645, 3655

New Holland: 9280, 9480, 9680, 9880, 9184, 9384, 9484, 9684, 9884, 1905, 2205, 2305, 2405, 9282, 9482, 9682, 9882, AL59, TC54, TC56, TF42, TF44, TF46, TG215, TG245, TG305, TR75, TR85, TR86, TR87, TR88, TR89, TR95, TR96, TR97, TR98, TR99, TV140, TX 32, TX 34, TX 36, TX1905, TX2205, TX2305, TX2405

Valtra-Valmet: 600, 700, 800, 900, 6000, 8300, 8800, A65, A72, A75, A82, A85, A92, A95, C90, C100, C110, C120, C130, C150, 8350, 8950, M120, M130, M150, 8000, 8050, 8100, 8150, 8200, 8400, 8450, 8550, 8750, 6100, 6200, 6300, 6400, 6600, 6800, 6900, N91, N101, N111, N121, N141, N82, N92, N122, N142, T121, T131, T151, T161, T171, T191, T132, T152, T162, T172, T182, T202, X100, X110, X120, XM130, XM150
