Planning to restore a Case IH B 275? Here are more than 40 parts that fit this model, oldtimer parts among them, all on one page to save you searching.
Keeping a B 275 working usually comes down to three areas: the engine, the steering and the rear linkage. This page brings together more than 40 parts that fit the Case IH B 275, all new replacement parts from makers such as GRANIT and LUK.

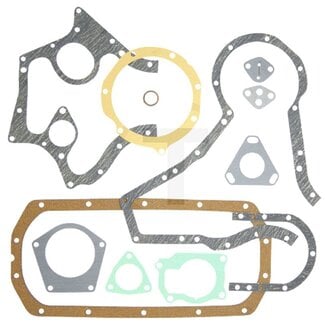

For a top end job there is an upper cylinder head gasket set as well as a single head gasket. The bottom end is covered by a lower gasket set and a separate sump gasket. Add a valve cover gasket, a piston and cylinder set, connecting rod bolts and crankshaft seals and you have the parts a typical rebuild calls for. An oil filter and a glow plug round off a service, while an exhaust manifold gasket and an exhaust flange take care of a joint that has started blowing at the manifold.
A tip on crankshaft seals: once the old seal is out, run a fingernail across the shaft where the lip used to sit. If you can feel a groove, set the new seal at a slightly different depth so the lip runs on clean metal, and wet the lip with engine oil before pressing it home.
Play in the steering wheel on a B 275 often comes from worn drag link ball joints, and several versions are available here. If the front end still wanders after those are renewed, check the stub axles, which are sold individually. At the rear, the lifting spindle lets you adjust the lower links. After years outdoors these tend to seize or bend, and fitting a new spindle is usually quicker than fighting with the old one.
Grease a new lifting spindle well and wind it through its full travel before setting the links. That shows straight away whether the thread runs cleanly, and it keeps the spindle moving after a winter outside. After replacing drag link ends, reset the toe in, since new joints rarely end up at exactly the old length.
Start with the type plate and confirm it reads B 275. If you still have the old part, look for a stamped or cast reference number and compare it with the numbers shown with the item. For gaskets, lay the old one next to the picture and compare the bolt hole pattern. For ball joints, note the thread direction and where in the steering linkage the joint sits, since left and right ends are not always the same.
Got more than one older tractor from this maker in the shed? The Case IH parts overview takes you straight to the other models.
