Case IH 685 tractor parts & technical data

The Case IH 685, also known as the IHC 685, stays in shape with more than 250 matching parts. From vintage parts to lighting, steering and front axle parts.

267 parts found for Case IH 685
Show:
HELLA Starter motor 12 V, 1,1 kW, 9 teeth, Ø 74 mm, clockwise
€334,60 €276,53 €322,25 €266,33
You save 4%
Ball joint 382 mm, M14 x 1,5, 20,5 mm, taper 15,6 - 17,9 mm
A: 382 mm. C: M14 x 1,5 mm. D: 20,5 mm. E: 15,6 mm. F: 17,9 mm. Taper: 15,6 - 17,9 mm. More
A: 382 mm. C: M14 x 1,5 mm. D: 20,5 mm. E: 15,6 mm. F: 17,9 mm. Taper:...
€62,98 €52,05 €57,94 €47,89
You save 8%
VICTOR REINZ Gasket set complete engine D-206 - D-268 Case IH
€420,84 €347,80 €387,17 €319,98
You save 8%
Button thread M5 Case IH 784-884, Series 32-4240, D 440
€35,10 €29,01 €32,29 €26,69
You save 8%
Nozzle cap Case IH
€70,08 €57,92 €64,47 €53,28
You save 8%
Drain valve thread 1/4" BSP
Thread: 1/4" BSP. More
Thread: 1/4" BSP.
€13,18 €10,89
Glow plug 12 V, 15,5 A, thread 7/8 inch - 14 UNF
Version: 12 V, 15.5 A, thread 7/8" - 14 UNF. More
Version: 12 V, 15.5 A, thread 7/8" - 14 UNF.
€33,85 €27,98
Connecting rod bearing standard, width 32 mm Case IH
Dimensions: Width 32 mm. More
Dimensions: Width 32 mm.
€29,81 €24,64
Valve scraper set Ø 13,1 x 9,3 mm, thickness 12 mm Case IH
Outer Ø: 13,1 mm. Inner Ø: 9,3 mm. Material: ACM (polyacrylic rubber). Thickness: 12 mm. More
Outer Ø: 13,1 mm. Inner Ø: 9,3 mm. Material: ACM (polyacrylic rubber...
€7,93 €6,55
Seal
€1,68 €1,38
Gas strut roof window 160 N, 225 mm, stroke 65 mm John Deere, Case IH
suitable for: Dachluke. Newtons: 160. A: 225 mm. B: 125 mm. C: 6 mm. D: 6 mm. d1: 6 mm. d2: 15 mm. Stroke: 65 mm. Connection 1: AUGE metal. Connection... More
suitable for: Dachluke. Newtons: 160. A: 225 mm. B: 125 mm. C: 6 mm. D...
€33,61 €27,78
MAHLE Starter motor 12 V, 3,0 kW, 10 teeth clockwise, Ø 89 mm
€630,00 €520,66 €377,34 €311,85
You save 40%
Bearing wheel hub 95 x 135 x 20 mm Carraro front axle 406519 Case IH
Center bearing drive shaft 32 x 62 x 37 mm Case IH
€91,54 €75,65 €84,22 €69,60
You save 8%
Ball joint 115 mm, taper 23,5 - 26,5 mm, M20 x 1,5 / M30 x 1,5
A: 115 mm. C: M20 x 1,5 mm. D: M30 x 1,5 mm. E: 23,5 mm. F: 26,5 mm. Taper: 23,5 - 26,5 mm. More
A: 115 mm. C: M20 x 1,5 mm. D: M30 x 1,5 mm. E: 23,5 mm. F: 26,5 mm. T...
€61,40 €50,74 €56,49 €46,68
You save 8%
Axial joint 190 mm, M20 x 1,5, M22 x 1,5, Ø 56 mm, Ø 40 mm
A: 190 mm. C: M20 x 1,5 mm. D: M22 x 1,5 mm. Ø B: 56 mm. Ø E: 40 mm. More
A: 190 mm. C: M20 x 1,5 mm. D: M22 x 1,5 mm. Ø B: 56 mm. Ø E: 40 mm.
€76,93 €63,58 €70,78 €58,49
You save 8%
Ball joint 85 mm, M20 x 1,5, M24 x 1,5, taper 23 - 25 mm
A: 85 mm. C: M20 x 1,5 mm. D: M24 x 1,5 mm. E: 23 mm. F: 25 mm. Taper: 23 - 25 mm. More
A: 85 mm. C: M20 x 1,5 mm. D: M24 x 1,5 mm. E: 23 mm. F: 25 mm. Taper:...
€32,82 €27,12 €30,19 €24,95
You save 8%
Reservoir Case IH Maxxum 5120-5250, CX 50-100, MX 80C-135
€83,84 €69,29 €77,13 €63,75
You save 8%
Brake band for hand brake Ø 168 mm Case IH
€175,11 €144,72 €161,10 €133,14
You save 8%
Flywheel 126 teeth Case IH 474-784, Series 32-3230, Hydro 84
€720,32 €595,31 €712,69 €589,00
You save 1%
Connection cable 2,5 m
Length: 2.5 m. Reference no.: 1762625. More
Length: 2.5 m. Reference no.: 1762625.
€83,20 €68,76 €76,54 €63,26
You save 8%
KS Piston ring set 3 rings Ø 98,43 mm, 3,16 mm / 2,39 mm / 4,75 mm Case IH
KS
Dimensions: 3 rings, Ø 98.43 mm, 3.16 mm (trapezoidal ring) / 2.39 mm / 4.75 mm. More
Dimensions: 3 rings, Ø 98.43 mm, 3.16 mm (trapezoidal ring) / 2.39 mm...
€61,30 €50,66 €56,40 €46,61
You save 8%
KS Piston set, complete Ø 100 mm, piston pin Ø 36 mm, depth 24 mm
KS
Dimensions: 3 rings, Ø 100 mm, Gudgeon pin Ø 36 x 82 mm, Combustion chamber Ø 59.5 mm, Combustion chamber depth 24 mm, Ring carrier piston. Descrip... More
Dimensions: 3 rings, Ø 100 mm, Gudgeon pin Ø 36 x 82 mm, Combustion ...
€266,58 €220,31 €245,25 €202,69
You save 8%
VICTOR REINZ Cylinder head gasket Case IH 474-884, Series 32-4240, Hydro 84
€132,60 €109,59 €121,99 €100,82
You save 8%
VICTOR REINZ Cylinder head gasket set Case IH 474-884, Series 32-4240, Hydro 84
€232,02 €191,75 €213,46 €176,41
You save 8%
Main bearing undersize 0,25 mm Case IH
Dimensions: Undersize 0.25 mm. More
Dimensions: Undersize 0.25 mm.
€38,89 €32,14
Radiator hose, top Ø 38 / 50 mm Case IH
Inner Ø: 38 / 50 mm. More
Inner Ø: 38 / 50 mm.
€9,71 €8,03
Radiator Case IH 484, 684, 385-885 XL, 248-268, Hydro 84
€522,93 €432,17 €481,10 €397,60
You save 8%
Water pump with gasket Ø 112 mm, A 107 mm, B 22 mm Case IH
Dimensions: Impeller Ø 112, A: 107, B: 22 mm. More
Dimensions: Impeller Ø 112, A: 107, B: 22 mm.
€102,58 €84,78 €94,37 €77,99
You save 8%
Crankshaft, 4-cylinder standard Including gear wheel Case IH
Notes: Please follow the instructions in the installation guide. Please complete the test instruction report contained therein, and return it to garan... More
Notes: Please follow the instructions in the installation guide. Pleas...
€1.576,17 €1.302,62 €1.500,08 €1.239,74
You save 5%
Stop cable A 1290 mm, B 1060 mm Case IH 743 XL - 844 XL, 248-885 XL
€57,73 €47,71 €53,11 €43,89
You save 8%
Cylinder head gasket 1,59 mm Case IH 474-884, Series 32-4240, Hydro 84
€73,33 €60,60 €67,46 €55,76
You save 8%
Oil pump engine D206, D239, D246, D268 Case IH
€393,56 €325,26 €362,08 €299,24
You save 8%
Piston set complete Ø 100 mm, combustion chamber 57,5 mm Case IH
Dimensions: 3 rings, Ø 100 mm, Ø 36 x 82 mm, combustion chamber Ø 57.5 mm, combustion chamber depth 22.3 mm. Description: Supplied without O-ring. More
Dimensions: 3 rings, Ø 100 mm, Ø 36 x 82 mm, combustion chamber Ø 5...
€131,98 €109,07 €121,42 €100,35
You save 8%
Injection nozzle Case IH 684-995, 743-844 S, 4210-4240
Type formula: DLLA150S815, 0433271849. Bosch no.: 2580433271849. Menke no.: 54106. More
Type formula: DLLA150S815, 0433271849. Bosch no.: 2580433271849. Menke...
€44,42 €36,71 €40,87 €33,77
You save 8%
Filter glass outer-Ø 93 mm, bore Ø 25 mm, height 52,5 mm
Dimensions: Outer Ø: 93, hole Ø: 25, height: 52.5 mm. More
Dimensions: Outer Ø: 93, hole Ø: 25, height: 52.5 mm.
€7,74 €6,39
Hinge for roof hatch Case IH Series 32-4240
€79,55 €65,74 €73,19 €60,48
You save 8%
Showing 97 - 144 of 267

Case IH 685 parts for engine, clutch and steering

On plenty of farms the 685 has been working for decades, and the owner keeps it going in his own workshop. You may also know it as the IHC 685. This page carries more than 250 Case IH 685 parts, from a single O-ring to a complete piston and liner set, from makers such as GRANIT, HELLA, ZF, LUK and KS.

When the engine needs an overhaul

Blue smoke, oil consumption or poor compression usually means the engine is coming apart. For that job there are piston and liner sets, piston ring sets, crankshaft seals, gaskets and sealing rings, including the small O-rings for the lift pump. On the cooling side you will find a water pump repair kit, thermostats with their gasket and radiator hoses such as the by-pass hose.

A workshop tip: always renew the crankshaft seals while the engine is open, even if they still look dry. After all these years the rubber has gone hard, and a leaking rear seal later means splitting the tractor all over again. Wipe a thin film of engine oil on the lip of a new seal so it does not run dry on the first start.

Clutch, linkage and steering

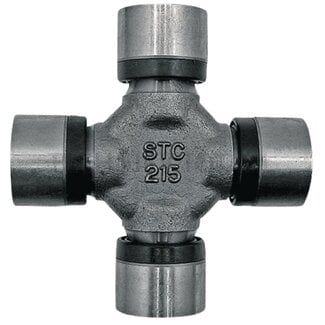

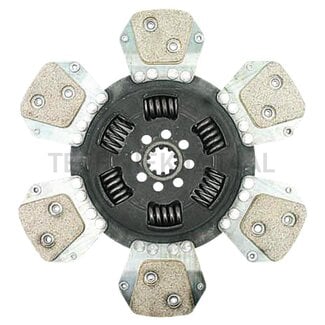

Behind the engine sit the clutch plate, the universal joints in the driveline and the lifting spindles of the rear linkage. When you replace the clutch plate, check the flywheel and release bearing at the same time. A flywheel with blue spots or deep scoring will ruin a new plate in no time.

Play in the steering often comes from worn ball joints. They exist in several versions, so take the old joint along to compare. For the cab there are gas struts for the door, and a HELLA flasher unit for indicators that blink unevenly.

Which 685 do you have

The 85 range covers several similar models, and the 685 XL is a separate model from the 685. Check the type plate for model and serial number before you order. Old gaskets, thermostats and water pump parts often still carry a stamped or printed reference number, and that number is the surest way to match the description on this page.

If you also work on another model from the range, it has a page of its own:

Other Case IH and IHC tractors, older and newer, are collected under Case IH parts.
