Case IH 824 tractor parts & technical data

Whether you call it the IHC 824 or the Case IH 824, this classic has more than 350 matching parts here, including vintage parts and lighting.

377 parts found for Case IH 824
Show:
Valve guide McCORMICK, IHC 353-1455
To fit as: McCORMICK / IHC 353, 383, 423, 433, 453, 523, 533, 553, 554, 624, 633, 644, 654, 724, 733, 744, 824, 833, 844, 844S, 946, 955, 1046, 1055, ... More
To fit as: McCORMICK / IHC 353, 383, 423, 433, 453, 523, 533, 553, 554...
€12,39 €10,24
Drive shaft 1210 mm Case IH 553 - 824
Length (mm): 1210 More
Length (mm): 1210
€1.139,53 €941,76 €1.048,37 €866,42
You save 8%
Clutch plate 295 MCC lining, 23,4 x 28,9 mm, 10 splines Case IH
Dimensions (mm): 23.4 x 28.9 10 grooves | Material specifications: MCC clutch lining | Additional information: Made in Germany More
Dimensions (mm): 23.4 x 28.9 10 grooves | Material specifications: MCC...
€785,11 €648,85 €722,30 €596,94
You save 8%
Connecting rod bearing 32 mm wide, undersize 0,5 mm IHC 353 - 1046
Version: 32 mm wide, undersize 0.5 mm More
Version: 32 mm wide, undersize 0.5 mm
€11,53 €9,52
LUK Thrust bearing 65 x 102 x 26 mm Case IH 523 - 1455 XL
LUK
Dimensions (mm): 65 x 102 x 26 More
Dimensions (mm): 65 x 102 x 26
€100,44 €83,01 €92,40 €76,37
You save 8%
LUK Double clutch 280/300TGU6 41 x 45 mm, 22 splines, sintered Case IH
LUK
Material specifications: Sintered clutch lining | Dimensions (mm): 41 x 45 22 grooves More
Material specifications: Sintered clutch lining | Dimensions (mm): 41 ...
€945,40 €781,32 €869,77 €718,82
You save 8%
HELLA Indicator right rectangular 70 x 50 x 114 mm, 12 / 24 V
HELLA
Type: Bulb | Bulbs included: No | Additional information: - Number of light functions: 1 | Form: Rectangular | Test mark: ECE, E1 32621, E-type tested... More
Type: Bulb | Bulbs included: No | Additional information: - Number of ...
€35,10 €29,01 €33,81 €27,94
You save 4%

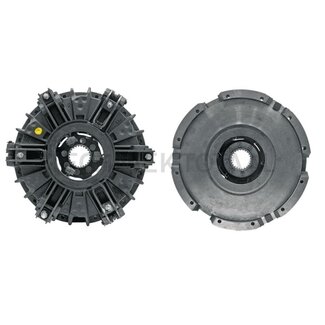

Double clutch DuT 295 45 x 50 mm, 24 splines
Additional information: Made in Germany | Dimensions (mm): 45 x 50, 24 grooves | Flywheel dimension (mm): 2 (erhöht) | web (mm): 49 More
Additional information: Made in Germany | Dimensions (mm): 45 x 50, 24...
€1.022,57 €845,10 €990,76 €818,81
You save 3%
Thrust bearing 45 x 85 x 114,5 mm, pin Ø 14 mm straight
Spring: 4591805042000 | Shaft Ø (mm): 14 | Dimensions (mm): 45 x 85 x 114.5 Pin: Ø 14, straight | LuK no.: 459500011520 | Sachs no.: 4591859600003 More
Spring: 4591805042000 | Shaft Ø (mm): 14 | Dimensions (mm): 45 x 85 x...
€125,75 €103,93 €115,69 €95,61
You save 8%
Elring Gasket set lower Case IH engine D-155, D-179
Elring
Additional information: Without cylinder liner gasket set More
Additional information: Without cylinder liner gasket set
€241,71 €199,76 €222,37 €183,78
You save 8%
Sticker set plastic front grille Case IH 824
€164,27 €135,76 €151,13 €124,90
You save 8%
Gear reduction starter 12 V, 3,2 kW, 9 teeth, Ø 89,0 mm, clockwise
€342,87 €283,36 €315,44 €260,69
You save 8%
HELLA Starter motor 12 V, 3,1 kW, 9 teeth, flange 89 mm, clockwise
€594,37 €491,21 €457,95 €378,47
You save 23%
Ball joint taper 14,4 - 16,2 mm, M12 x 1,25, M18 x 1,5, 92 mm
A: 92 mm. C: M12 x 1,25 mm. D: M18 x 1,5 mm. E: 14,4 mm. F: 16,2 mm. Taper: 14,4 - 16,2 mm. More
A: 92 mm. C: M12 x 1,25 mm. D: M18 x 1,5 mm. E: 14,4 mm. F: 16,2 mm. T...
€39,71 €32,82 €36,53 €30,19
You save 8%
GRAMMER Seat Compacto Basic M MSG83/521, mechanical, fabric, 450 mm
GRAMMER
Suspension: Mechanical. Upholstery type: Fabric. Seat contact switch: Optional. Track gauge: 225 mm. Seat width: 450 mm. Fore/aft isolator: Optional. ... More
Suspension: Mechanical. Upholstery type: Fabric. Seat contact switch: ...
€1.125,64 €930,28 €1.035,59 €855,86
You save 8%
Indicator/position light left black, orange, without bulbs
To fit as: Eicher, Deutz, Fahr, Fendt, Guldner, Hanomag, Kramer, MAN, Massey Ferguson, McCormick, IHC, Porsche Diesel, Schlüter More
To fit as: Eicher, Deutz, Fahr, Fendt, Guldner, Hanomag, Kramer, MAN, ...
€66,04 €54,58 €60,76 €50,21
You save 8%
Tractormeter 26 km/u McCORMICK, IHC 523, 553, 624, 654, 724, 824
To fit as: McCORMICK / IHC 523, 553, 624, 654, 724, 824 More
To fit as: McCORMICK / IHC 523, 553, 624, 654, 724, 824
€169,82 €140,35 €156,23 €129,12
You save 8%
Spring gear change rod ratchet spring McCORMICK, IHC D 320 - D 440, 323-833
To fit as: McCORMICK / IHC D 320, D 322, D 324, D 326, D 430, D 432, D 436, D 439, D 440, 323, 353, 423, 453, 523, 553, 624, 654, 724, 824, 433, 533, ... More
To fit as: McCORMICK / IHC D 320, D 322, D 324, D 326, D 430, D 432, D...
€7,21 €5,96
Radiator cap McCORMICK, IHC 353-1455
To fit as: McCORMICK / IHC 353, 383, 423, 433, 453, 523, 533, 553, 554, 633, 644, 724, 733, 743, 744, 745, 824, 844, 844 S, 856, 946, 955, 956, 1046, ... More
To fit as: McCORMICK / IHC 353, 383, 423, 433, 453, 523, 533, 553, 554...
€13,26 €10,96
Stop cable 1090 / 1190 mm McCORMICK / IHC 523-824
To fit as: McCORMICK / IHC 523, 553, 624, 654, 724, 824 More
To fit as: McCORMICK / IHC 523, 553, 624, 654, 724, 824
€105,81 €87,45 €97,35 €80,45
You save 8%
Injection nozzle McCormick, IHC, International, Case IH 724-1246
To fit as: McCORMICK / IHC 724, 744, 824, 844, 844S, 1046, 1246 More
To fit as: McCORMICK / IHC 724, 744, 824, 844, 844S, 1046, 1246
€50,13 €41,43 €46,12 €38,12
You save 8%
MANN-FILTER Fuel filter McCormick, IHC 323-1246
MANN-FILTER
To fit as: McCORMICK / IHC 323, 353, 383, 423, 433, 453, 533, 633, 644, 724, 733, 744, 824, 833, 844, 844S, 946, 955, 1046, 1055, 1246 More
To fit as: McCORMICK / IHC 323, 353, 383, 423, 433, 453, 533, 633, 644...
€5,59 €4,62
Silencer upper inlet Ø 58 mm, exhaust Ø 38 mm, length 870 mm
To fit as: McCORMICK / IHC 323, 353, 383, 423, 453, 523, 553, 624, 654, 724, 824 More
To fit as: McCORMICK / IHC 323, 353, 383, 423, 453, 523, 553, 624, 654...
€199,75 €165,08 €183,77 €151,88
You save 8%
Cylinder head bolt 9/16 x 123 mm McCormick, IHC 353-1455
To fit as: McCORMICK / IHC 353, 383, 423, 433, 453, 523, 533, 553, 554, 624, 633, 644, 654, 724, 733, 743, 745, 824, 833, 844, 844S, 856, 946, 955, 95... More
To fit as: McCORMICK / IHC 353, 383, 423, 433, 453, 523, 533, 553, 554...
€34,34 €28,38 €31,59 €26,11
You save 8%
ZF Internal plate 4WD clutch Ø 160 x 117 mm, 2 mm Case IH, Claas, Fendt
ZF
Reference no.: 2049.346.087 | Außen-Ø (mm): 160 Stärke: 2 Innen-Ø: 117 More
Reference no.: 2049.346.087 | Außen-Ø (mm): 160 Stärke: 2 Innen-Ø:
€76,01 €62,82 €69,93 €57,79
You save 8%
Clutch plate 280 GSCE 23,4 x 28,9 mm, 10 splines sintered Case IH
Material specifications: Sintered clutch lining | Additional information: Made in Germany | Dimensions (mm): 23.4 x 28.9 10 grooves More
Material specifications: Sintered clutch lining | Additional informati...
€562,00 €464,46 €517,04 €427,31
You save 8%
Clutch plate 280 23,4 x 28,9 mm, 10 splines Case IH 523 - 844 S
Dimensions (mm): 23.4 x 28.9 10 grooves | Additional information: Made in Germany More
Dimensions (mm): 23.4 x 28.9 10 grooves | Additional information: Made...
€357,96 €295,83 €329,32 €272,17
You save 8%
Double clutch DuT 295 45 x 50 mm, 24 splines
Additional information: Made in Germany | Dimensions (mm): 45 x 50, 24 grooves | web (mm): 50 | Flywheel dimension (mm): 2 (erhöht) More
Additional information: Made in Germany | Dimensions (mm): 45 x 50, 24...
€1.077,03 €890,11 €1.040,87 €860,22
You save 3%
Elring Cylinder head gasket set with valve stem seal engine D-206, D-239, D-268
Elring
Additional information: With valve stem seal More
Additional information: With valve stem seal
€202,15 €167,07 €185,98 €153,70
You save 8%
Crankshaft seal rear engine D-155, D-179 IHC 353 - 1246
€47,22 €39,02 €43,44 €35,90
You save 8%
Ball joint 145 mm, taper 27 - 30 mm, M24 x 1,5, M36 x 1,5
A: 145 mm. C: M24 x 1,5 mm. D: M36 x 1,5 mm. E: 27 mm. F: 30 mm. Taper: 27 - 30 mm. More
A: 145 mm. C: M24 x 1,5 mm. D: M36 x 1,5 mm. E: 27 mm. F: 30 mm. Taper...
€113,52 €93,82 €104,44 €86,31
You save 8%
Universal joint 35 x 97 mm, centralised lubrication
A: 35 mm. B: 97 mm. Universal joint size: . Lubrication system: Centralised lubrication. More
A: 35 mm. B: 97 mm. Universal joint size: . Lubrication system: Centra...
€126,01 €104,14 €115,93 €95,81
You save 8%
Ball joint 92 mm, Ø 13,85 mm, M18 x 1,5, taper 10 - 14 mm
A: 92 mm. C: Ø13,85 mm. D: M18 x 1,5 mm. E: 10 mm. F: 14 mm. Taper: 10 - 14 mm. More
A: 92 mm. C: Ø13,85 mm. D: M18 x 1,5 mm. E: 10 mm. F: 14 mm. Taper: 1...
€36,64 €30,28
Connection cable MS with LED light, 2,5 m
Length: 2.5 m. Version: The connection cable with LED light makes it much easier to connect the cable to the vehicle in the dark. The LED lights up wh... More
Length: 2.5 m. Version: The connection cable with LED light makes it m...
€100,09 €82,72 €92,08 €76,10
You save 8%
VICTOR REINZ Cylinder head gasket set Case IH 484, Series 32-3220, E 353-824
€149,09 €123,21 €137,16 €113,36
You save 8%
Air receiver gasket Case IH
Crankshaft, 3-cylinder standard engine D-179 Case IH 385-3220
Notes: Please follow the instructions in the installation guide. Please complete the test instruction report contained therein, and return it to garan... More
Notes: Please follow the instructions in the installation guide. Pleas...
€1.521,45 €1.257,40 €1.399,73 €1.156,81
You save 8%
Bush for nozzle holder brass, injection nozzle Ø 10 mm Case IH
€48,95 €40,45 €45,03 €37,22
You save 8%
Bosch/Rexroth Hydraulic pump 8 cm³/rpm., taper 1:5, Ø 17 x 17 mm, anticlockwise
Bosch/Rexroth
Output volume: 8 cc/rev. Drive shaft: Taper 1:5, Ø 17 x 17. Direction of rotation: Anticlockwise. Line connection suction side: Ø 40mm, 4-Loch, M6. ... More
Output volume: 8 cc/rev. Drive shaft: Taper 1:5, Ø 17 x 17. Direction...
€313,17 €258,82 €288,12 €238,11
You save 8%
Pull switch on / off 12 / 24 V, Ø 8,5 mm, screw connection
Version: 12/24 V, small knob (black). Connection: Screw contacts. Power rating max. 12 V: 10. Power rating max. 24 V: 2.5. Mounting Ø: 8,5 mm. Switch... More
Version: 12/24 V, small knob (black). Connection: Screw contacts. Powe...
€10,81 €8,94
HELLA Beacon KL 700 H1 orange 12 V, Ø 165 mm, attachment
HELLA
Nominal voltage: 12 V. Bulb: H1. Light function: Rotating. Diameter: 165 mm. Total height: 210 mm. Connection: Blade terminal. Protection class: IP 5K... More
Nominal voltage: 12 V. Bulb: H1. Light function: Rotating. Diameter: 1...
€118,69 €98,09 €114,31 €94,47
You save 4%
Flasher unit 12 V, 5 connections, 2 + 1 + 1 x 21 W, round
Version: Round, power rating: 12 V / 2 + 1 +1 x 21 W, Including mounting bracket for earth connection. Connection: 5 x 6.3 mm blade terminal | Earth (... More
Version: Round, power rating: 12 V / 2 + 1 +1 x 21 W, Including mounti...
€64,17 €53,03 €59,04 €48,79
You save 8%
Flasher unit 12 V, 2+1+1 x 21 W, with holder and indicator instruments
To fit as: Case IH 238, 248, 258, 268, 278, 288, 323, 354, 374, 384, 444, 474, 475, 484, 584, 674, 684, 784, 884 385, 485, 485XL, 585, 585XL, 685, 685... More
To fit as: Case IH 238, 248, 258, 268, 278, 288, 323, 354, 374, 384, 4...
€48,67 €40,22 €44,78 €37,01
You save 8%
HELLA Steering column switch horn, shift linkage 108 mm Case IH, Deutz, IHC
HELLA
To fit as: Case IH 323, 353, E 353, 383, 423, E 423, 453, 533, 633, 733, 833 523, 553, 554, 624, 644, 654, 724, 743, 743XL, 744, 745S, 745XL, 824, 844... More
To fit as: Case IH 323, 353, E 353, 383, 423, E 423, 453, 533, 633, 73...
€88,13 €72,83 €73,56 €60,80
You save 17%
Thermostat Ø 54 mm, 82 °C Case IH 268-2500, E 353-1455 XL
To fit as: Case IH 353, 383, 423, 453, 523, 624, 724, 824, 654, 433, 533, 553, 633, 733, 833, 840, 940, 644, 743, 744, 745, 845, 844, 844S, 946, 1046,... More
To fit as: Case IH 353, 383, 423, 453, 523, 624, 724, 824, 654, 433, 5...
€27,28 €22,54
Sealing ring lowering restrictor McCORMICK / IHC
To fit as: McCORMICK / IHC D 322, D 326, D 432, D 439, 323, 353, 383, 423, 453, 433, 533, 633, 733, 833, 523, 553, 624, 654, 724, 824 More
To fit as: McCORMICK / IHC D 322, D 326, D 432, D 439, 323, 353, 383, ...
€6,13 €5,06
Angle drive thread M18 x 1,5, clockwise rotation - left
To fit as: McCORMICK / IHC 353, 383, 423, 453, 433, 533, 633, 733, 833, 523, 553, 624, 654, 724, 824, 554, 644, 743, 744, 745, 844, 856, 946, 1046, 12... More
To fit as: McCORMICK / IHC 353, 383, 423, 453, 433, 533, 633, 733, 833...
€194,32 €160,60 €178,77 €147,75
You save 8%
Showing 97 - 144 of 377

Case IH 824 parts for the IHC 824

Many of these tractors still wear IHC badges on the bonnet, and the IHC 824 is listed here as the Case IH 824. It is the same machine. If yours is still working for a living or sitting in the shed halfway through a restoration, this page shows more than 350 parts that fit it.

Engine overhaul parts

For a rebuild there is a cylinder head gasket set, gaskets including one for the camshaft, fuel pump seals, a rear crankshaft seal, a water pump and radiator hoses. Fuel system O-rings and fuel filters are here too, so the engine starts its second life on clean diesel. While the water pump is off, renew the radiator hoses too. Old hoses go soft or crack from the inside long before they look bad.

When you refit the head, tighten the bolts in the order the workshop manual gives, working in stages rather than taking each bolt to full torque at once. Many older diesels also want the bolts checked again once the engine has been run warm, so keep the torque wrench handy.

Clutch and brakes

A clutch that slips or no longer frees properly needs a new clutch plate, and nearly always a new thrust bearing too. Both are listed, with LUK among the brands. Change the bearing even if the old one still sounds quiet, because the tractor is already split and a bearing that starts whining a year later means doing the whole job again. For the brakes there are sealing rings for the brake housing, which keep oil away from the linings.

Steering and lights

Play in the steering on an older tractor often comes from worn ball joints, and those are here as well. Headlights, indicator and position lamps and a flasher unit, partly from HELLA, make the 824 road safe again.

Making sure it fits

On a tractor of this age, something has often been swapped along the way. Check the plate, but also look at the old part itself. If it carries a reference number, compare that with the description of the new one. With gaskets and seals it pays to measure the old item before ordering.

The 824 has relatives that often turn up in the same yard, and each one has its own page: Case IH 553, Case IH 624, Case IH 654, Case IH 845 and Case IH 845 XL. Every other type from the brand is listed under Case IH parts.
