Case IH CVX 170 tractor parts & technical data

Looking for steering and front axle parts, lighting or a trailer coupling? The Case IH CVX 170 page lists more than 300 matching parts from the CVX series.

347 parts found for Case IH CVX 170
Show:
Pressure switch air conditioning with female thread, 2 blade connections
Version: With female thread, 2 blade terminals. More
Version: With female thread, 2 blade terminals.
€251,02 €207,45 €230,94 €190,86
You save 8%
Cobo Work lamp H3, 55 / 70 W, 12 / 24 V, 158 x 96 x 85 mm
Cobo
Bulb: H3. Form: Rectangular. Dimensions W x H x D: 158 x 96 x 85 mm. Installation location: Right. Nominal voltage: 12 / 24 V. Power consumption: 55 /... More
Bulb: H3. Form: Rectangular. Dimensions W x H x D: 158 x 96 x 85 mm. I...
€110,99 €91,73 €102,11 €84,39
You save 8%
PTO shaft end piece 136 mm, 1 3/8 inch 6 grooves, 8 bores
To fit as: Case IH CS 100, 110, 120, 130, 150, CVX 120, 130, 140, 150, 160, 170, 175, 195, 1135, 1145, 1155, 1170, 1190, 1195 More
To fit as: Case IH CS 100, 110, 120, 130, 150, CVX 120, 130, 140, 150,...
€149,03 €123,17 €137,11 €113,31
You save 8%
Pin lower arm Carraro front axle 145706 Case IH, Renault, Steyr
€559,15 €462,11 €514,42 €425,14
You save 8%
Pin upper arm Carraro front axle 145706
€94,45 €78,06 €86,89 €71,81
You save 8%
Pin upper arm Carraro front axle 145706
€136,36 €112,69 €125,45 €103,68
You save 8%

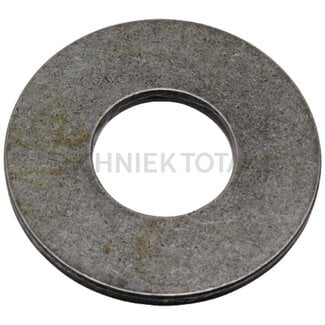

Thrust washer Case IH, Renault, Steyr
€69,70 €57,60 €64,12 €53,00
You save 8%
Bush rotary housing and steering cylinder Case IH, Renault, Steyr
Bush axle housing 105 x 115 x 44 mm Case IH
€57,89 €47,84 €53,26 €44,02
You save 8%
Universal joint 30,2 x 83 / 88 mm, maintenance-free
€173,86 €143,69 €159,95 €132,19
You save 8%
Nut steering cylinder and housing CARRARO front axle 642489
€33,52 €27,70 €30,84 €25,49
You save 8%
Seal kit hydraulic steering Case IH, Steyr, New Holland
€125,47 €103,69 €115,43 €95,40
You save 8%
Ball joint 430 mm, M22 x 1,5, taper 23 - 25 mm
A: 430 mm. C: M22 x 1,5 mm. D: M22 x 1,5 mm. E: 23 mm. F: 25 mm. Taper: 23 - 25 mm. More
A: 430 mm. C: M22 x 1,5 mm. D: M22 x 1,5 mm. E: 23 mm. F: 25 mm. Taper...
€173,62 €143,49 €159,73 €132,01
You save 8%
Wheel brake cylinder Sirmac brakes, mineral oil Case IH, Steyr
€845,65 €698,88 €778,00 €642,97
You save 8%
GRAMMER Seat Maximo Dynamic DDS MSG95AL/741, 550 mm
GRAMMER
To fit: Case CVX, Steyr, New Holland. Suspension: Air suspension. Upholstery type: Fabric. Seat contact switch: Yes. Track gauge: 260 mm. Seat width: ... More
To fit: Case CVX, Steyr, New Holland. Suspension: Air suspension. Upho...
€3.131,13 €2.587,71
Gasket exhaust turbocharger New Holland, Steyr, Case IH
€79,60 €65,79 €73,23 €60,52
You save 8%
Gasket cooling channel, thermostat housing CS 68, 75, engine Sisu 320D
Gasket assembly cover CS 68-150, CVX 120-1190
€36,49 €30,16 €33,57 €27,74
You save 8%
Exhaust manifold Case IH, Steyr
Radiator cap Ø 58 mm, height 25 mm, 0,7 bar
Neck Ø: 58 mm. Height: 25 mm. Opening pressure: 0,7 bar. More
Neck Ø: 58 mm. Height: 25 mm. Opening pressure: 0,7 bar.
€9,88 €8,16
Thermostat Ø 54 mm, 79 °C
Ø: 54 mm. Temperature: 79 °C. More
Ø: 54 mm. Temperature: 79 °C.
€19,81 €16,37
Thermostat Ø 67 mm, 83 °C
Ø: 67 mm. Temperature: 83 °C. More
Ø: 67 mm. Temperature: 83 °C.
€39,55 €32,69 €36,39 €30,07
You save 8%
Tension spring engine brake Case IH, Steyr
Description: For engine brake. More
Description: For engine brake.
€8,36 €6,91
Optibelt V-belt John Deere, New Holland, Case IH
Feed pump 5 hole, hole spacing 25/37 and 45 mm, flange 52 mm
Version: 5 holes, Vertical hole spacing: 25/37 mm, Horizontal hole spacing: 45 mm, Flange to lever end: 52 mm. Menke no.: 209000. More
Version: 5 holes, Vertical hole spacing: 25/37 mm, Horizontal hole spa...
€44,86 €37,07 €41,27 €34,11
You save 8%
O-clamp set 115 x 3,5 mm Steyr, Massey Ferguson - 3 pieces
Dimensions: All rings 115 x 3.5 mm. More
Dimensions: All rings 115 x 3.5 mm.
€35,00 €28,93 €32,20 €26,61
You save 8%
Hydraulic pump 30 / 35 cm³/rpm. Case IH, Steyr
Output volume: 30/ 35 cc/rev. More
Output volume: 30/ 35 cc/rev.
€5.431,77 €4.489,06
Gas strut hood 1900 N, 435 mm, stroke 150 mm
€84,12 €69,52 €77,39 €63,96
You save 8%
Bush for lower link shaft 66 x 70 x 45 mm Case IH, Steyr
Dimensions: 66 x 70 x 45 mm. More
Dimensions: 66 x 70 x 45 mm.
€120,46 €99,55 €110,82 €91,59
You save 8%
Sealing ring 82 x 6 mm Case IH, Steyr
Dimensions: 82 x 6 mm. More
Dimensions: 82 x 6 mm.
€11,13 €9,19
Windshield frame shock absorber 150 N, 585 mm
Newtons: 150. A: 585 mm. B: 290 mm. C: 10 mm. D: 10 mm. To fit: windscreen. Form: 2. More
Newtons: 150. A: 585 mm. B: 290 mm. C: 10 mm. D: 10 mm. To fit: windsc...
€37,75 €31,20 €34,73 €28,70
You save 8%
Gas strut door 500 N, 205 mm Case IH, Steyr, New Holland
suitable for: Tür. Newtons: 500. A: 205 mm. B: 105 mm. C: 8 mm. D: 8 mm. Form: 6. To fit: door. More
suitable for: Tür. Newtons: 500. A: 205 mm. B: 105 mm. C: 8 mm. D: 8 ...
€35,93 €29,69 €33,06 €27,32
You save 8%
Scharmüller Ball 80® ball inserts gray cast iron, rail width 335 mm, 4000 kg
Scharmüller
Rail width: 335 mm. Detent pin Ø: 22 mm. Guide width: 30 mm. Load capacity: 4000 kg. D-value: 89,3 kN. Plate height: 160 mm. Colour: AGCO grey. Overh... More
Rail width: 335 mm. Detent pin Ø: 22 mm. Guide width: 30 mm. Load cap...
€1.116,48 €922,71
ROCKINGER Drawbar K80 rail width 336 mm, locking pin Ø 22 mm
ROCKINGER
Rail width: 336 mm. Detent pin Ø: 22 mm. Guide width: 30 mm. Load capacity: 4000 kg. D-value: 105 kN. Description: Manual ball hitch with height-adju... More
Rail width: 336 mm. Detent pin Ø: 22 mm. Guide width: 30 mm. Load cap...
€1.405,31 €1.161,41 €1.082,77 €894,85
You save 23%
Position sensor linkage for lower link shaft
Version: Function: position sensor for lifting arm shaft. More
Version: Function: position sensor for lifting arm shaft.
€482,97 €399,15 €444,33 €367,22
You save 8%
Showing 193 - 240 of 347

Case IH CVX 170 parts, from the engine bay to the hitch

A squealing belt, a bonnet that drops on your head, play in the lower link shaft. The Case IH CVX 170 has more than 300 parts on this page for exactly those repairs, from brands such as GRANIT, HELLA, GRAMMER, MAHLE and Scharmüller.

Engine bay

Around the engine there is a water pump gasket, O-rings for the feed pump, sealing rings and a seal for a lubrication line. The alternator and V-belts cover the auxiliary drive, and gas struts are available for the bonnet.

Linkage and hitching

At the rear you will find bushes for the lower link shaft, drawbars on a rail, an automatic hitch, top drawbars and adapter plates. That covers both the wear items in the linkage and the complete coupling point for trailers.

Cab and work lights

For the operator there are tractor seats and dashboard rocker switches, such as the one for the front work lights. The work lights themselves are here too, as an H3 spotlight and as a flush-mounted unit.

Gas strut tip

When the bonnet will no longer stay up, replace both gas struts together. A new strut next to a tired one ends up carrying the full load and fades faster. Fit them with the piston rod pointing down so the seal stays in oil, and prop the bonnet securely while you swap them.

Linkage bushes wear quietly. Lift an implement slightly and push it sideways, and if you feel play at the lower link shaft it is time. Replace bushes in pairs on the shaft and grease them after fitting, or a new bush on a dry shaft wears out as quickly as the old one.

Picking the right version

The type plate on the tractor gives the model and serial number, which is what you need to pick the correct part within the CVX range. The reference number on the old part is the next check. On a V-belt the length and profile are often printed on the back, and an alternator carries its own small rating plate.

Other models in the CVX range each have a page with the parts recorded for them:

The CVX 1155 and CVX 1170 also belong to this range. The whole make is under Case IH parts.
