John Deere 4520 tractor parts & technical data

Maintaining a John Deere 4520? Pick from more than 40 parts on this page, with lighting, electrics and steering and front axle components in one place.

41 parts found for John Deere 4520
Show:
MANN-FILTER Secondary filter main insert C14101, C14202/1, C14210/2
MANN-FILTER
Height: 318 mm. Outer Ø: 79 / 82 mm. Inner Ø: 77 mm. A: 79 mm. B: 77 mm. D: 82 mm. MANN no.: CF850/2. H: 318 mm. Fleetguard no.: AF25484. Menke no.:... More
Height: 318 mm. Outer Ø: 79 / 82 mm. Inner Ø: 77 mm. A: 79 mm. B: 77...
€33,70 €27,85
Solenoid switch starter motor 12 V, 80 A, 3 schraubkontakt
Version: 12 V / 80 A, 3 screw connections. Additional information: Spulenwiderstand: 3.95-4.15 Temporärer Strom: 800 Amp. More
Version: 12 V / 80 A, 3 screw connections. Additional information: Spu...
€50,38 €41,64 €46,35 €38,31
You save 8%
Pilot bearing 17 x 40 x 12 mm
Dimensions (mm): 17 x 40 x 12 More
Dimensions (mm): 17 x 40 x 12
€6,69 €5,53
LED work lights spotlight 36 W, 3250 lm, Ø 111,6 mm, 12 / 24 V, round
Operating temperature (°C): -45 / +60 | Test mark: ECE R10 | Mounting type: Flush mounting | Material: Housing: aluminium, lens: plastic | Form: Roun... More
Operating temperature (°C): -45 / +60 | Test mark: ECE R10 | Mounting...
€45,45 €37,56 €41,81 €34,56
You save 8%
Plate Hi-Lo powershift 3,3 mm, Ø 263 - 323 mm, 104 teeth John Deere
Version: thickness = 3,3 mm inner = 263 mm outer = 323 mm 104 teeth | Menke no.: 221681 More
Version: thickness = 3,3 mm inner = 263 mm outer = 323 mm 104 teeth | ...
€71,84 €59,37 €66,09 €54,62
You save 8%
MAHLE Starter motor 12 V, 4,0 kW, 10 teeth, clockwise, mounting Ø 89,0 mm
€655,98 €542,13 €392,89 €324,70
You save 40%
AKS-Dasis Thermal fuse airco John Deere 40 and 50 series
AKS-Dasis
Weight (g): 37 | Weight (kg): 0.037 More
Weight (g): 37 | Weight (kg): 0.037
€11,13 €9,19
AKS-Dasis Aircon compressor 12 V, pulley-Ø 139 mm, 1 groove, 295 ccm
€613,43 €506,97 €564,36 €466,41
You save 8%
FEBI Thermostat Ø 54 mm, 82 °C John Deere, Sabre
FEBI
To fit as: John Deere, Sabre. Tractor types: 4520, 4620, 3030, 3130 (from 235170), 4430, 4630, 3040, 3140, 3640, 4040S, 4240, 4240S, 4440, 4640, 4840,... More
To fit as: John Deere, Sabre. Tractor types: 4520, 4620, 3030, 3130 (f...
€24,08 €19,90 €11,17 €9,23
You save 54%
Repair kit hydraulic pump John Deere 4020 - 8640
€212,50 €175,62 €195,50 €161,57
You save 8%
Starter switch with keys without nut, 12 V, blade terminal
Version: 12 V, with blade terminal, Function:, P: parking light, 0: off, 1: consumer, 2: start, Nut, 640R44342. More
Version: 12 V, with blade terminal, Function:, P: parking light, 0: of...
€75,38 €62,30 €69,35 €57,31
You save 8%
Tank cap with ventilation lockable, tank collar Ø 59 mm
To fit as: John Deere 830, 930, 1030, 1130, 1530, 1630, 1830, 2030, 2130, 3030, 3130, 4030, 4230, 4430, 4630, 940, 1040, 1140, 1640, 2040, 2140, 3040,... More
To fit as: John Deere 830, 930, 1030, 1130, 1530, 1630, 1830, 2030, 21...
€87,80 €72,56
HELLA Interior lights 12 V with switch John Deere 3320 - 8360RT
HELLA
Switches: Yes | Type: Bulb | Mounting type: Flush mounting | Bulb: K (10W) | Interior lighting: Innenleuchte | Cable length (mm): 150 | Bulbs included... More
Switches: Yes | Type: Bulb | Mounting type: Flush mounting | Bulb: K (...
€40,40 €33,39 €38,91 €32,16
You save 4%
Brake light switch oil pressure 1/8" NPT, 2,8 - 6,3 bar, neutral position off
Version: Thread 1/8" NPT, 2.8 - 6.3 bar, normally off, make contact. More
Version: Thread 1/8" NPT, 2.8 - 6.3 bar, normally off, make contact.
€22,98 €18,99
Ball joint 100 mm, taper 19,4 - 22,3 mm, M24 x 1,5
A: 100 mm. D: M24 x 1,5 mm. E: 19,4 mm. F: 22,3 mm. Taper: 19,4 - 22,3 mm. More
A: 100 mm. D: M24 x 1,5 mm. E: 19,4 mm. F: 22,3 mm. Taper: 19,4 - 22,3...
€134,07 €110,80 €123,34 €101,94
You save 8%
Connecting rod bolt 63 mm John Deere
Dimensions: 63 mm long. More
Dimensions: 63 mm long.
€16,04 €13,25
Connecting rod bearing standard John Deere
Description: To fit 4000, 4020, 4320, 4520, 4620, 7020, 4230, 4430, 8430, 4040USA, 4240USA, 4240, 4050. More
Description: To fit 4000, 4020, 4320, 4520, 4620, 7020, 4230, 4430, 84...
€35,76 €29,56
Thrust bearing standard without thrust washer John Deere
€32,65 €26,98
Hinge door, left and right John Deere Series 20-5525N
€60,10 €49,67 €55,29 €45,70
You save 8%
Thermostat Ø 54 mm, 82 °C John Deere, Sabre
To fit as: John Deere, Sabre. Tractor types: 4520, 4620, 3030, 3130 (from 235170), 4430, 4630, 3040, 3140, 3640, 4040S, 4240, 4240S, 4440, 4640, 4840,... More
To fit as: John Deere, Sabre. Tractor types: 4520, 4620, 3030, 3130 (f...
€27,09 €22,39
Stabilus Gas strut 350 N, 190 mm, stroke 54 mm John Deere 3033R - 4720
Stabilus
D (mm): 8 | A (mm): 190 | Stroke (mm): 54 | Newtons: 350 | d1 (mm): 8 | C (mm): 8 | B (mm): 94 | d2 (mm): 18 | Form: 6 More
D (mm): 8 | A (mm): 190 | Stroke (mm): 54 | Newtons: 350 | d1 (mm): 8 ...
€41,11 €33,98 €37,82 €31,26
You save 8%
Crankshaft seal rear Ø 117,8 x 146,25 x 13,8 mm John Deere, Renault
Tank cap with ventilation metal tank, tank collar Ø 59 mm
Filler neck Ø: 59 mm. More
Filler neck Ø: 59 mm.
€12,63 €10,43
Hydraulic pump 65 cm³/rpm. John Deere 4020-8640
Output volume: 65 cc/rev. More
Output volume: 65 cc/rev.
€2.291,68 €1.893,95 €2.108,35 €1.742,43
You save 8%
BOSCH Brake light switch oil pressure 1/8" NPTF, 3 - 6 bar, neutral position off
BOSCH
Version: Thread 1/8", tapered, 3.0 - 6.0 bar, normally off, make contact. Switching pressure range over-pressure: 3 - 6 bar. Connection 2-pin: Blade t... More
Version: Thread 1/8", tapered, 3.0 - 6.0 bar, normally off, make conta...
€36,14 €29,87
Bush for crankshaft John Deere
€39,51 €32,65 €36,35 €30,04
You save 8%
Tank cap with ventilation Lockable, tank collar Ø 59 mm
Filler neck Ø: 59 mm. More
Filler neck Ø: 59 mm.
€87,80 €72,56
HELLA Number plate light C5W, black
HELLA
Bulb: 12V5WS / C5W. Version: Light functions: 1 - with number plate light, Test mark: K 12824/1, Colour: black. Menke no.: 54179. More
Bulb: 12V5WS / C5W. Version: Light functions: 1 - with number plate li...
€15,39 €12,72
Thermostat Ø 54 mm, 82 °C John Deere
Ø: 54 mm. Temperature: 82 °C. More
Ø: 54 mm. Temperature: 82 °C.
€27,09 €22,39
Valve hydraulic pump John Deere 830-8650
€37,37 €30,88 €34,38 €28,41
You save 8%
Thermostat for radiator / air conditioning
Version: For heat exchanger/air conditioning (anti-icing protection). Reference no.: AL175777. More
Version: For heat exchanger/air conditioning (anti-icing protection). ...
€147,35 €121,78 €135,56 €112,03
You save 8%

John Deere 4520 parts for the engine, electrics and cab

John Deere 4520 parts on this page cover more than 40 items, from a MANN-FILTER fuel filter to the hinge on the cab door. Further tractor parts for the 4520 come from GRANIT, HELLA, AKS-Dasis and BOSCH.

What is available for the 4520

  • Cooling: thermostats and their gaskets
  • Fuel: a fuel filter and tank caps, including a lockable one

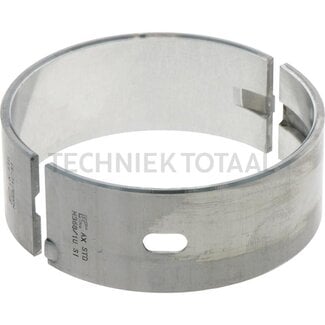

  • Engine: a crankshaft seal and a main bearing
  • Electrics: a solenoid switch, a starter switch, oil pressure operated brake light switches and number plate lighting
  • Hydraulics: a hydraulic pump and a hydraulic valve
  • Cab door: a bracket, a seal and a hinge

Two fuel system pointers

After changing the fuel filter, bleed the system. Work the hand primer until the diesel coming out at the bleed point shows no more air bubbles. Skip that and the engine will crank for ages or not fire at all.

The tank caps on this page are vented, and that vent needs to stay clear. If it blocks, a vacuum builds up in the tank and the engine dies after a while even though there is plenty of fuel left.

Engine and hydraulics

Oil seeping between the engine and the clutch housing usually points at the rear crankshaft seal. Since the tractor has to be split to reach it, it makes sense to inspect the clutch while you are there. Press the new seal in squarely with a proper seal driver, never with a few taps around the edge, or it will leak again straight away.

The brake light switches here are oil pressure operated: they switch the brake light on as soon as pressure builds in the brake circuit. If the light stays off while the bulbs are fine, the switch is the obvious first check. When fitting a new hydraulic pump, change the oil and filter too, so dirt from the old pump does not end up in the new one.

Finding the right John Deere 4520 tractor parts

Start by checking the data plate to make sure you are working on a 4520. Thermostats, gaskets and seals often carry a number on the old part or its packaging, so compare that with the new one. With a crankshaft seal, position matters too, as the rear seal is a different part from the front one.

From the same series

The John Deere 3120 has its own page with the parts that fit it, which helps if both tractors are on the farm. For every other model, visit John Deere parts.
