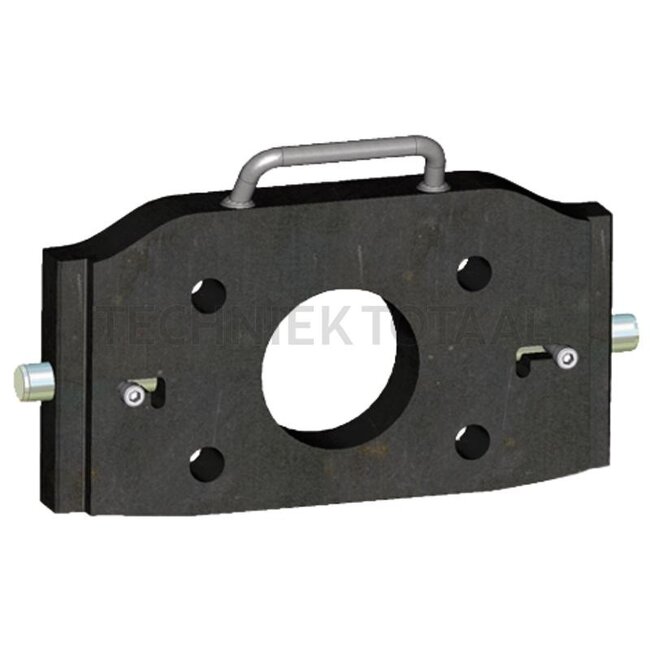

Walterscheid Adapter plate

Replaces: 8004528

Technical data:

• Guide width (mm): 32
• Description: The coupling plate is a height-adjustable sliding plate that can only be operated in hitch supports with locking rails. It is prepared for attaching flange couplings or other connecting devices with a flange. The areas of application include use on agricultural or forestry vehicles, self-propelled work machines and trailers. Advantages: height-adjustable, forged material, suitable for a wide range of couplings that can be flange-mounted
• Rail width (mm): 330
• D-value (kN): 89,3
• Colour: Black
• Load capacity (kg): 2800
• Central hole (mm): 95
• Hole (mm): M21
• Assembly notes: The vehicle part support distance (from the centre of the coupling plate to the centre of the coupling point) may be up to 222 mm.
• Hole pattern (mm): 160 x 100
• Detent pin Ø (mm): 25

Suitable for:

Case IH: C 42, C 48, C 55, C 64, C 70, Farmall 85C (3/14-), Farmall 85C (12/12-), Farmall 95C (3/14-), Farmall 95C (12/12-), JX 60 Tier 3 (12/08-12/13), JX 70, JX 80, JX 90, JX 95 Tier 3 (1/07-12/14), JX 1060 C (12/03-6/08), JX 1070 C (12/03-), JX 1075 C (12/03-), JX 1085C, JX 1095C (10/05-), JX 70U, JX 80U, JX 90U, JX 100U, JXU 75, JXU 85, JXU 95, JXU 105, JXU 115, Luxxum 100, Luxxum 110, Luxxum 120, Magnum 225 (1/06-), Magnum 250 (1/06-), Magnum 280 (1/06-), Magnum 310 (1/06-), Magnum 335, Magnum 235 Tier 4a, Magnum 235 Tier 4a CVT, Magnum 260 Tier 4a, Magnum 260 Tier 4a CVT, Magnum 290 Tier 4a, Magnum 290 Tier 4a CVT, Magnum 315 Tier 4a, Magnum 315 Tier 4a CVT, Magnum 340 Tier 4a, Magnum 340 Tier 4a CVT/CVX, Magnum 340 Tier 4b CVT/CVX (4/14-), MX 180 Magnum, MX 200 Magnum, MX 210 Magnum, MX 220 Magnum, MX 230 Magnum, MX 240 Magnum, MX 255 Magnum, MX 270 Magnum, MX 285 Magnum, Quantum 85C, Quantum 95C

Claas: Arion 410, Arion 420, Arion 430, Arion 440, Arion 450, Arion 460, Xerion 2500, Xerion 3000, Xerion 3300, Xerion 3800

Deutz-Fahr: 5100, 5110, 5120, 5130, 5100 G, 5105.4 G, 5115.4 G, 5100 TTV, 5110 TTV, 5120 TTV, 5130 TTV, 6150 Agrotron, 6150.4 Agrotron, 6160 Agrotron, 6160.4 Agrotron, 6180 Agrotron, 6190 Agrotron, 6120.4 TTV Agrotron, 6130.4 TTV Agrotron, 6140 TTV Agrotron, 6140.4 TTV Agrotron, 6150.4 TTV Agrotron, 6160 TTV Agrotron, 6160.4 TTV Agrotron, 6180 TTV Agrotron, 6190 TTV Agrotron, 6115 C, 6125 C, 6135 C, 7210 TTV Agrotron, Agrotron 120, Agrotron 150, Agrotron K 90, Agrotron K 100, Agrotron K 110, Agrotron K 120, Agrotron K 410, Agrotron K 420, Agrotron K 430, Agrotron M 410, Agrotron M 420, Agrotron M 600, Agrotron M 610, Agrotron M 615, Agrotron M 620, Agrotron M 625, Agrotron M 640, Agrotron M 650, Agrotron New 130, Agrotron New 150.7, Agrotron New 165.7, Agrotron New 180, Agrotron New 180.7, Agrotron TTV 610, Agrotron TTV 620, Agrotron TTV 630, Agrotron TTV 1130, Agrotron TTV 1145, Agrotron TTV 1160, Agrotron X710, Agrotron X720

Fendt: Favorit 816 (Typ 816), Favorit 818 (Typ 818), Favorit 822 (Typ 822), Favorit 824 (Typ 824), Favorit 916 (Typ 916), Favorit 920 (Typ 920), Favorit 924 (Typ 924), Favorit 926 (Typ 926)

Fiat: 50-66 S, 55-66, 60-66 S, 65-66 S, 70-66 S, 580, 680, 780, 880, 980, 980 DT, 1180, 1280, 1380, 1580, 1880, 65-88, 70-88, 80-88, 55-90, 60-90, 65-90, 70-90, 80-90, 85-90, 90-90, 100-90, 110-90, 115-90, 130-90, 140-90, 160-90, 180-90, 60-93, 65-93, 72-93, 82-93, 88-93, 60-94, 65-94, 72-94, 82-94, 88-94, G 170, G 190, G 210, G 240, F 100, F 110, F 115, F 120, F 130, F 140

Ford: 8670 (9/93-12/00), 8770 (9/93-12/00), 8870 (9/93-12/00), 8970 (9/93-12/00)

JCB: Fastrac 135, Fastrac 145, Fastrac 150, Fastrac 155, Fastrac 185, Fastrac 1115, Fastrac 1125, Fastrac 1135, Fastrac 2115, Fastrac 2125, Fastrac 2135, Fastrac 2140, Fastrac 2150, Fastrac 2155, Fastrac 2170, Fastrac 3155, Fastrac 3170, Fastrac 3185, Fastrac 3190, Fastrac 3200, Fastrac 3220, Fastrac 3230, Fastrac 7170, Fastrac 7200, Fastrac 7230, Fastrac 7270, Fastrac 8280, Fastrac 8310

John Deere: 5055E, 5058E, 5067E, 5075E, 5093E Limited, 5101EN, 5070M, 5075M, 5080M, 5085M, 5090M, 5095M, 5100M, 5115M, 5080R, 5090R, 5100R, 5115R, 5125R, 6100D, 6115D, 6130D, 6110M, 6115M, 6120M, 6125M, 6130M, 6135M, 6140M, 6145M, 6150M, 6155M, 6170M, 6175M, 6195M, 6090MC, 6105R, 6110R, 6115R, 6120R, 6125R, 6130R, 6135R, 6140R, 6145R, 6150R, 6155R, 6170R, 6190R, 6210R, 8245R, 8260R, 8270R, 8285R, 8295R, 8295RT, 8310RT, 8320R, 8320RT, 8335R, 8335RT, 8345R, 8345RT, 8360R, 8360RT, 2030, 2040, 2140, 3040, 3140, 3340 (nur für Spanien), 3640, 1350, 1550, 1750, 1850, 1950, 2250, 2450, 2650, 2850, 3050, 3350, 3650, 5720, 5820, 5620, 6100, 6010, 6020, 6120, 6220, 6320, 6420, 6420S, 6520, 6620, 6820, 6920, 6920S, 6130, 6230, 6230 PR, 6330, 6330 PR, 6430, 6430 PR, 6530, 6530 PR, 6534 PR, 6630, 6630 PR, 6830, 6830 PR, 6930, 6930 PR, 6115, 6140, 7720, 7820, 7920, 7230, 7430 PR, 7530 PR, 7630, 7730, 7830, 7930, 7210, 8110, 8210, 8310, 8410, 8120, 8220, 8320, 8420, 8520, 8130, 8230, 8330, 8430, 8530

Kubota: M 100, M 105, M 108 S, M 110, M 125, M 128, M 5091, M 5111, M 6040, M 6060, M 7040, M 7060, M 8540, M 8560, M 9540, M 9960

Lamborghini: R6.135, R6.140, R6.150, R6.150.7, R6.165.7, R6.170, R6.185, R8.215, R8.230, R8.265, R8.270, Strike 100, Strike 110, Traction 265, Victory 230, Victory 260

Landini: 6830, 7830

Lindner: Geotrac 50, Geotrac 60, Geotrac 63, Geotrac 64, Geotrac 65, Geotrac 70, Geotrac 73, Geotrac 74, Geotrac 75, Geotrac 80, Geotrac 83, Geotrac 84, Geotrac 85, Geotrac 90, Geotrac 93, Geotrac 94, Geotrac 100, Geotrac 103

Massey Ferguson: 4435, 4445, 4455, 5410 Tier 3, 5420 Tier 3, 5430 Tier 3, 5440 Tier 3, 5450 Tier 3, 5608, 5609, 5610, 5611 Dyna 6, 5612 Dyna 4, 5612 Dyna 6, 5613 Dyna 4, 5613 Dyna 6, 5710, 5711, 5710 S/SL, 5711 S/SL, 5712 S/SL, 5713 S/SL, 8450 Tier 3, 8450 Tier2, 8460 Tier 3, 8460 Tier2, 8470 Tier 3, 8470 Tier2, 8480 Tier 3, 8480 Tier2, 8650 Tier 4, 8660 Tier 4, 8670 Tier 4, 8680 Tier 4, 8690 Tier 4

McCormick: CX 110, XTX 145, XTX 165

Mercedes Benz: MB-Trac 1300, MB-Trac 1400, MB-Trac 1500, MB-Trac 1600, Unimog U 300, Unimog U 400, Unimog U 500, Unimog U 1700, Unimog U 1800, Unimog U 2100, Unimog U 2150, Unimog U 2400

New Holland: T5.115 Electro Command Tier 4 (2/13-), T8.275 Tier 4a, T8.275 Tier 4a CVT, T8.300 Tier 4a, T8.300 Tier 4a CVT, T8.330 Tier 4a, T8.330 Tier 4a CVT, T8.360 Tier 4a, T8.360 Tier 4a CVT, T8.390 Tier 4a, T8.390 Tier 4a CVT, T8.420 Tier 4a CVT, T8.420 Tier 4a CVT (2/13-), T4020, T4030, T4040, T4050, T5030, T5040, T5050, T5060, T5070, T8020, T8030, T8040, T8050, TD5.65, TD5.75, TD5.85, TD5.95, TD5.105, TD5.115, TD4020F, TD4030F, TD4040F, TD5010, TD5020, TD5030, TD5040, TD5050, TG210, TG215, TG230, TG245, TG255, TG285, TG305, TN55, TN60, TN65, TN70, TN75, TN85, TN95

Same: Diamond 215, Diamond 230, Diamond 260, Diamond 265, Diamond 270, Explorer 110, Explorer 120, Explorer³ 110, Iron 150, Iron 150.7, Iron 165.7, Iron 170, Iron 190

Steyr: 8055, 8060, 8065, 8070, 8075, 8080, 8085, 8095, 8110, 8130, 942, 948, 955, 964, 970, 9078, 9086, 9094, 9085 MT, 360 Kompakt, 370 Kompakt, 375 Kompakt, 485 Kompakt, 495 Kompakt, 4055 S Kompakt (9/11-), 4065 Kompakt (4/08-), 4065 S Kompakt (9/11-), 4065 S Kompakt Tier 4a (5/14-), 4075 Kompakt (4/08-), 4075 Kompakt HI-LO Tier 4a (3/14-), 4075 Kompakt Tier 4a (3/14-), 4085 Kompakt (1/07-), 4085 Kompakt HI-LO Tier 4a (3/14-), 4085 Kompakt HI-LO Tier 4a (12/12-), 4085 Kompakt Tier 4a (3/14-), 4085 Kompakt Tier 4a (12/12-), 4095 Kompakt (1/07-), 4095 Kompakt HI-LO Tier 4a (3/14-), 4095 Kompakt HI-LO Tier 4a (12/12-), 4095 Kompakt Tier 4a (3/14-), 4095 Kompakt Tier 4a (12/12-), 4105 Kompakt HI-LO Tier 4a (3/14-), 4105 Kompakt HI-LO Tier 4a (12/12-), 4105 Kompakt Tier 4a (3/14-), 4105 Kompakt Tier 4a (12/12-), M 948 (1/97-12/01), M 958 (2/97-1/01), M 968 (3/99-3/04), M 968 (6/97-3/99), M 975 (3/99-3/04), M 975 (6/97-3/99), M 9078 (1/99-1/04), M 9078 (3/96-1/99), M 9083 (9/94-1/99), M 9086 (1/99-1/04), M 9086 (3/96-1/99), M9094 (1/99-1/04), M9094 (3/96-1/99), Multi 4095 FM Tier 4 (5/13-), Multi 4095 Tier 4 (5/13-), Multi 4100, Multi 4105, Multi 4110, Multi 4115 FM Tier 4 (5/13-), Multi 4115 Tier 4 (5/13-), Multi 4120

Ursus: 1234, 1634

Valtra-Valmet: 600, 700, 800, 900, 6000, 8300, 8600, 8800, 8850, A65, A72, A75, A82, A83, A85, A92, A93, A95, C90, C100, C120, C130, C150, 6350, 6550, 6850, 8350, 8950, M120, M130, M150, 8000, 8050, 8100, 8150, 8200, 8400, 8450, 8550, 8750, 6200, 6300, 6400, 6600, N91, N101, N111, N121, N141, N82, N92, N122, N142, N93, N103, N113, N123, N143, N163, N104, N114, N124, N134, N154, N174, S230, S240, S260, S280, S232, S262, S292, S322, S352, S233, S263, S293, S323, S353, T120, T130, T140, T160, T170, T180, T190, T121, T131, T151, T161, T171, T191, T132, T152, T162, T172, T182, T202, T133, T153, T163, T173, T183, T193, T203, T213, XM130, XM150

Zetor: 6320, 7520, 8520
