Case IH CX 90 tractor parts & technical data

Keep your Case IH CX 90 from the CX series running with more than 250 matching parts on this page, among them electrics, trailer couplings and lighting.

261 parts found for Case IH CX 90
Show:
Gas strut door 350 N, 250 mm Case IH CX 50, MX 90C
Newtons: 350. A: 250 mm. B: 125 mm. C: 13 mm. D: 13 mm. To fit: door. Form: 6. More
Newtons: 350. A: 250 mm. B: 125 mm. C: 13 mm. D: 13 mm. To fit: door. ...
€45,69 €37,76 €42,03 €34,74
You save 8%
ROCKINGER Drawbar KS80 rail 330 mm, pin Ø 25 mm, 4000 kg, black
ROCKINGER
Rail width: 330 mm. Detent pin Ø: 25 mm. Guide width: 32 mm. Load capacity: 4000 kg. D-value: 100 kN. Colour: Black. Description: Ball hitch with com... More
Rail width: 330 mm. Detent pin Ø: 25 mm. Guide width: 32 mm. Load cap...
€1.489,09 €1.230,65 €1.197,32 €989,52
You save 20%
HD-telescopic mirror bracket right Ø 19 mm, 400 - 660 mm Case IH
Ø: 19 mm. Length: 400 mm. Length max.: 660 mm. Installation location: Right. More
Ø: 19 mm. Length: 400 mm. Length max.: 660 mm. Installation location:...
€143,36 €118,48 €131,89 €109,00
You save 8%
Oil pressure switch engine M10 x 1, blade connection
Version: Thread: M10 x 1, Blade terminal. More
Version: Thread: M10 x 1, Blade terminal.
€35,44 €29,29
Potentiometer rotary function linkage position and werkelijke value
Version: For power lift for position and actual value, Connection cable with plug connection. More
Version: For power lift for position and actual value, Connection cabl...
€239,17 €197,66 €220,04 €181,85
You save 8%
HELLA Lens with indicator light, brake light, reflector, rear light left / right
HELLA
Installation location: Right, left. Test mark: E12 3024, E12 6081, E12 7111, ECE. Light function: With indicator light, with brake light, with reflect... More
Installation location: Right, left. Test mark: E12 3024, E12 6081, E12...
€25,10 €20,74
Cobo Indicator/position light 120 x 80 x 56 mm, P21W, R5W right
Cobo
Bulb: 12V21WK / P21W, 12V5WK / R5W. Colour: Yellow, white. Attachment: Side. Width: 120 mm. Form: Rectangular. Height: 80 mm. Dimensions W x H x D: 12... More
Bulb: 12V21WK / P21W, 12V5WK / R5W. Colour: Yellow, white. Attachment:...
€46,69 €38,59 €42,95 €35,50
You save 8%
HELLA Relays relays make contact 12 V / 50 A, 4-pin, with holder
HELLA
Version: • With resistor for suppressing inductive interference voltage peaks. Colour: Black. Power rating max. 12 V: 50. Protection class: 54. Swit... More
Version: • With resistor for suppressing inductive interference volt...
€20,91 €17,28
Start safety relay 12 V, 70 A, 4-pin, blade terminal 6,3 mm
Version: 12 V / 70 A, With bracket, 4-pin, blade terminal 6.3 mm. More
Version: 12 V / 70 A, With bracket, 4-pin, blade terminal 6.3 mm.
€22,49 €18,58
Radiator cap Ø 58 mm, height 25,5 mm Ford, Case IH, New Holland
To fit as: Ford 2000, 5000, 2100, 5100, 7100, 2300, 2600, 3600, 4600, 5600, 7600, 5610, 6410, 6610, 6710, 6810, 7410, 7610, 7710, 7810, 7910, 8010, 82... More
To fit as: Ford 2000, 5000, 2100, 5100, 7100, 2300, 2600, 3600, 4600, ...
€16,00 €13,22
Pin upper arm Carraro front axle 145706
€94,45 €78,06 €86,89 €71,81
You save 8%
Pin upper arm Carraro front axle 145706
€136,36 €112,69 €125,45 €103,68
You save 8%
King pin upper Carraro front axle 145281
€42,30 €34,96 €38,92 €32,16
You save 8%
King pin lower Carraro front axle 145281
€43,52 €35,97 €40,04 €33,09
You save 8%
Bush axle housing 105 x 115 x 44 mm Case IH
€57,89 €47,84 €53,26 €44,02
You save 8%
Seal kit steering cylinder, piston rod Ø 36 mm
€102,17 €84,44 €94,00 €77,68
You save 8%
Track rod 499 mm, 7/8" x 16, taper 16 - 18 mm, 7/8" x 16
A: 499 mm. B: 7/8" x 16 mm. C: 16 - 18 mm. G: . D: 7/8" x 16 mm. E: 28 mm. F: 20,75 mm. More
A: 499 mm. B: 7/8" x 16 mm. C: 16 - 18 mm. G: . D: 7/8" x 16 mm. E: 28...
€125,43 €103,66 €115,40 €95,37
You save 8%
Ball joint 80 mm, 1/2" x 20 mm, 11/16" x 18 mm
A: 80 mm. C: 1/2" x 20 mm. D: 11/16" x 18 mm. E: 15,5 mm. F: 18 mm. More
A: 80 mm. C: 1/2" x 20 mm. D: 11/16" x 18 mm. E: 15,5 mm. F: 18 mm.
€33,19 €27,43 €30,53 €25,24
You save 8%

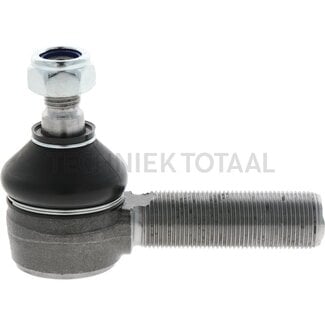

Ball joint 95 mm, M14 x 1,5, 7/8" x 16, taper 15,4 - 18,2 mm
A: 95 mm. C: M14 x 1,5 mm. D: 7/8" x 16 mm. E: 15,4 mm. F: 18,2 mm. Taper: 15,4 - 18,2 mm. More
A: 95 mm. C: M14 x 1,5 mm. D: 7/8" x 16 mm. E: 15,4 mm. F: 18,2 mm. Ta...
€136,07 €112,45 €125,18 €103,46
You save 8%
Repair set brake cylinder Massey Ferguson, Case IH
€37,99 €31,40 €34,95 €28,89
You save 8%
Starter ring gear Ø 371/341 mm, 115 teeth Case IH, Massey Ferguson
Version: Ø 371/341 mm, 115 teeth. More
Version: Ø 371/341 mm, 115 teeth.
€46,53 €38,45 €42,81 €35,38
You save 8%
Perkins Sealing ring crankshaft rear Ø 130 x 159 x 11 mm
€87,70 €72,48 €78,79 €65,11
You save 10%
Radiator hose, top inner-Ø 54 / 42 mm Case IH
Inner Ø: 54 / 42 mm. More
Inner Ø: 54 / 42 mm.
€38,50 €31,82
V-belt set without idler pulley Case IH CX 70-100, MX 80C-90C
Version: Without idler pulley. More
Version: Without idler pulley.
€37,19 €30,73
Hydraulic pump Case IH
€730,16 €603,44 €671,75 €555,16
You save 8%
GRAMMER Tractor seat Maximo Comfort Plus MSG95A/731
GRAMMER
To fit: Case, New Holland, Steyr. Suspension: Air suspension. Upholstery type: Fabric. Seat contact switch: Yes. Track gauge: 260 mm. Seat width: 530 ... More
To fit: Case, New Holland, Steyr. Suspension: Air suspension. Upholste...
€2.241,08 €1.852,13
Gas strut side-, for- or rear window 200 N, 490 mm, stroke 200 mm
suitable for: Seiten-, Front- oder Heckscheibe. Newtons: 200. A: 490 mm. B: 245 mm. C: 10 mm. D: 10 mm. Form: 6. d1: 8 mm. d2: 18 mm. Stroke: 200 mm. ... More
suitable for: Seiten-, Front- oder Heckscheibe. Newtons: 200. A: 490 m...
€40,63 €33,58 €37,38 €30,89
You save 8%
Hinge cab door bottom left Case IH CX 50, SPX3320
€160,19 €132,39 €147,37 €121,80
You save 8%
Hinge for cab door, right lower Case IH CX 50, MX 90C
€83,85 €69,30 €77,14 €63,75
You save 8%
Door lock, left Case IH CX 50, MX 90C, Deutz-Fahr D 4507C, DX 7.10
Lift rod 630 - 750 mm Case IH C 50-90, CX 50-100
Dimensions: Length: 630 - 750 mm. More
Dimensions: Length: 630 - 750 mm.
€405,98 €335,52 €373,50 €308,68
You save 8%
Gas strut side-, for- or rear window 200 N, 490 mm
Newtons: 200. A: 490 mm. B: 245 mm. C: 10 mm. D: 10 mm. To fit: Side window, windscreen or rear screen. Form: 6. More
Newtons: 200. A: 490 mm. B: 245 mm. C: 10 mm. D: 10 mm. To fit: Side w...
€36,10 €29,83 €33,21 €27,45
You save 8%
Electric cooling fan Case IH C 80-90, CX 80-100
€260,04 €214,91 €239,24 €197,72
You save 8%
Fork shaft double joint Carraro front axle 145281 Case IH, Renault
€258,97 €214,02 €238,25 €196,90
You save 8%
Showing 145 - 192 of 261

Case IH CX 90 parts

On a Case IH CX 90 that spends its days on loader work, the steering joints take a beating. That is a good place to start, but this page goes further, with more than 250 parts that fit this tractor from GRANIT, HELLA, ROCKINGER, MAHLE and GRAMMER.

Steering and front axle

Ball joints and axial joints cover the steering. A potentiometer receiver for the four wheel drive axle is listed as well. Before you remove a ball joint, measure the track rod or count the turns as you unscrew it. Fitting the new joint at the same position keeps the toe close to correct until you can have it aligned. Always use a new lock nut or split pin.

Cab, switches and mirrors

The cab side is well covered. There are rocker switches, for example for the front PTO, rotary switches, relays and hazard symbols for switch faces. Cab door hinges are available, and gas struts hold the side, front or rear window open. Heavy duty telescopic mirror arms complete the list.

Before you pull the plug off a rocker switch, disconnect the battery and take a photo of the back. Every wire then goes back on the right terminal.

Engine and rear linkage

For the engine there is a starter motor, O-rings and sealing rings, such as the front crankshaft seal. Oil the lip of a new crankshaft seal lightly and drive it in squarely with a suitable drift. A seal that sits crooked leaks almost at once, and a dry lip can tear on the first start. Check the shaft for a worn groove where the old lip ran. At the rear you will find drawbars and pins for the three point linkage.

Matching parts to your CX 90

Check the type plate first. The Case IH CX series includes several models that look almost identical from the outside. After that, the reference number on the old part is the best guide. On a ball joint it is often on the housing, and on a hinge it may be stamped into the metal. Use that number to confirm the details given for the part.

The other models in the CX series each have a page with the parts that fit them: Case IH CX 70, Case IH CX 80 and Case IH CX 100. That saves time if you run more than one CX. All remaining models from the brand are listed under Case IH parts.
