John Deere 1850 tractor parts & technical data

With more than 500 matching parts, the John Deere 1850 is well covered here. The range includes lighting, electrics and trailer couplings, among others.

545 parts found for John Deere 1850
Show:
Wabco Pressure relief valve 20 bar, inschakeldruk 16 bar, M16 x 1,5
Wabco
Operating pressure max. (bar): 20 | Fixing: Hole Ø 8.2 x 57 mm | Opening pressure (bar): p2 + 2,5 | Output pressure (bar): 7,4 + 0,2 | Inlet connecti... More
Operating pressure max. (bar): 20 | Fixing: Hole Ø 8.2 x 57 mm | Open...
€257,83 €213,08 €237,20 €196,04
You save 8%
External plate thickness 1,35 mm, inner 99 mm, outer 155 mm
Version: thickness = 1,35 mm inner = 99 mm outer = 155 mm More
Version: thickness = 1,35 mm inner = 99 mm outer = 155 mm
€47,02 €38,86 €43,26 €35,75
You save 8%
Internal plate Hi-Lo 2,3 mm, inner 152,3 mm, outer 191,9 mm, 6 teeth
Version: thickness = 2,3 mm inner = 152,3 mm outer = 191,9 mm 6 teeth More
Version: thickness = 2,3 mm inner = 152,3 mm outer = 191,9 mm 6 teeth
€49,74 €41,11 €45,76 €37,82
You save 8%
Internal plate PTO clutch 2,5 mm, inner 92,8 mm, outer 133,2 mm
Version: Thickness: 2.5 mm Inner: 92.8 mm Outer: 133.2 mm 45 splines More
Version: Thickness: 2.5 mm Inner: 92.8 mm Outer: 133.2 mm 45 splines
€34,33 €28,37
Internal plate PTO clutch 1,6 mm, inner 92,8 mm, outer 133,2 mm
Version: thickness = 1,6 mm inner = 92,8 mm outer = 133,2 mm, 45 teeth More
Version: thickness = 1,6 mm inner = 92,8 mm outer = 133,2 mm, 45 teeth
€26,15 €21,61
LUK Clutch plate 295TZFA 22,3 x 25,8 mm, 15 splines, John Deere
LUK
Dimensions (mm): 22.3 x 25.8 15 grooves | Material specifications: Organic clutch lining More
Dimensions (mm): 22.3 x 25.8 15 grooves | Material specifications: Org...
€421,95 €348,72 €388,19 €320,82
You save 8%
LUK Single clutch 320DGVM 35 x 38 mm, 23 splines John Deere
LUK
Dimensions (mm): 35 x 38 23 grooves | Flywheel dimension (mm): 21,6 More
Dimensions (mm): 35 x 38 23 grooves | Flywheel dimension (mm): 21,6
€970,75 €802,27 €893,09 €738,09
You save 8%
Clutch plate 280 GTPZ 22,3 x 25,8 mm, 15 splines, torsion damper
Additional information: Made in Germany | Dimensions (mm): 22.3 x 25.8, 15 grooves More
Additional information: Made in Germany | Dimensions (mm): 22.3 x 25.8...
€285,23 €235,73 €262,41 €216,87
You save 8%
Clutch plate 280 GSPZ 22,3 x 25,8 mm, 15 splines, torsion damper
Dimensions (mm): 22.3 x 25.8, 15 grooves | Additional information: Made in Germany More
Dimensions (mm): 22.3 x 25.8, 15 grooves | Additional information: Mad...
€303,39 €250,74 €279,12 €230,68
You save 8%
Release bearing complete with sleeve Ø 49 mm John Deere 820 - 1850
€109,34 €90,36 €100,59 €83,13
You save 8%
Alternator 14 V / 65 A, flange 52,8 mm, pulley Ø 63 mm
Belt width (mm) / type: PV x 8 | Form: B | Mounting L / d / R (mm): 52,8 / 8,5 / 88,25 | Nominal values (V / A): 14 / 65 | Charging current (A): 65 | ... More
Belt width (mm) / type: PV x 8 | Form: B | Mounting L / d / R (mm): 52...
€171,06 €141,37 €157,38 €130,06
You save 8%
MAHLE Gear reduction starter 12V 3,2 kW, 10 teeth clockwise
€501,81 €414,72 €300,55 €248,39
You save 40%
MAHLE Starter motor 12 V, 2,7 kW, 10 teeth, clockwise, mounting Ø 82,5 mm
€473,84 €391,60 €283,81 €234,55
You save 40%
Starter motor 12 V, 3,0 kW, 10 teeth clockwise, 259 mm
€315,70 €260,91 €290,44 €240,04
You save 8%
HELLA Starter motor 12 V, 3,1 kW, 10 teeth, Ø 83 mm, clockwise
€678,75 €560,95 €522,97 €432,20
You save 23%
Axial joint with stop 176 mm, M20 x 1,5, M18 x 1,5, Ø 52 mm, Ø 35 mm
A: 176 mm. C: M20 x 1,5 mm. D: M18 x 1,5 mm. F: 25 °. Ø B: 52 mm. Ø E: 35 mm. More
A: 176 mm. C: M20 x 1,5 mm. D: M18 x 1,5 mm. F: 25 °. Ø B: 52 mm. Ø...
€74,26 €61,37 €68,32 €56,46
You save 8%
Ball joint 95 mm, M18 x 1,5, M24 x 1,5, taper 20 - 22,2 mm
A: 95 mm. C: M18 x 1,5 mm. D: M24 x 1,5 mm. E: 20 mm. F: 22,2 mm. Taper: 20 - 22,2 mm. More
A: 95 mm. C: M18 x 1,5 mm. D: M24 x 1,5 mm. E: 20 mm. F: 22,2 mm. Tape...
€53,78 €44,45 €49,48 €40,89
You save 8%
Push rod 230 mm John Deere Series 5E-6600, SE6200-SE6300
Dimensions: Length 230 mm. More
Dimensions: Length 230 mm.
€27,54 €22,76
Water pump with pulley and gasket John Deere
€169,34 €139,95 €155,79 €128,75
You save 8%

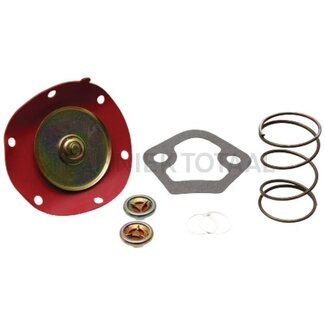

Set of parts feed pump John Deere engine 3164-6359
€52,55 €43,43 €48,35 €39,96
You save 8%
Injection line cylinder 1 John Deere 820-1630
€81,57 €67,41 €75,04 €62,02
You save 8%
GRAMMER Seat Compacto Basic M MSG83/521, mechanical, fabric, 450 mm
GRAMMER
Suspension: Mechanical. Upholstery type: Fabric. Seat contact switch: Optional. Track gauge: 225 mm. Seat width: 450 mm. Fore/aft isolator: Optional. ... More
Suspension: Mechanical. Upholstery type: Fabric. Seat contact switch: ...
€1.125,64 €930,28 €1.035,59 €855,86
You save 8%
GRAMMER Tractor seat Compacto Basic W MSG83/721 mechanical suspension, PVC
GRAMMER
Suspension: Mechanical. Upholstery type: PVC. Seat contact switch: Optional. Track gauge: 225 mm. Seat width: 480 mm. Fore/aft isolator: Optional. Res... More
Suspension: Mechanical. Upholstery type: PVC. Seat contact switch: Opt...
€927,77 €766,75 €853,55 €705,41
You save 8%
Bush for lower link shaft 21 x 49,4 x 25,4 mm John Deere 830-1850
Dimensions: 21 x 49.4 x 25.4 mm. More
Dimensions: 21 x 49.4 x 25.4 mm.
€59,17 €48,90 €54,44 €44,99
You save 8%
Lifting strut complete left 560 - 760 mm, eye-Ø 19,5 mm John Deere
Dimensions: Length = 560 - 760, Eye Ø = 19.5 mm. More
Dimensions: Length = 560 - 760, Eye Ø = 19.5 mm.
€424,25 €350,62 €390,31 €322,57
You save 8%
Walterscheid Drawbar ball 80 rail 330 mm, pin Ø 25 mm, 4000 kg, black
Walterscheid
Rail width: 330 mm. Detent pin Ø: 25 mm. Guide width: 32 mm. Load capacity: 4000 kg. D-value: 102 kN. Colour: Black. Description: This product is a b... More
Rail width: 330 mm. Detent pin Ø: 25 mm. Guide width: 32 mm. Load cap...
€2.152,79 €1.779,17 €1.702,02 €1.406,63
You save 21%
Headlight left 12 V, H4, dipped beam, main beam, attachment
Bulb: 12V/60/55W/H4. Installation location: Left. Nominal voltage: 12 V. Light function: Dipped beam, full beam. Mounting type: Mounting. More
Bulb: 12V/60/55W/H4. Installation location: Left. Nominal voltage: 12 ...
€176,25 €145,66
Start safety switch 9/16 inch UNF, standard open
Version: Make contact (contact function), Thread: 9/16" UNF, With screw connection. More
Version: Make contact (contact function), Thread: 9/16" UNF, With scre...
€40,67 €33,61 €37,42 €30,92
You save 8%
HELLA Bulb R10W 12 V, 10 W, BA15s - 10 pieces
HELLA
Type: R10W | Voltage (V): 12 | Socket: BA15s | Bulb: Konventionell | Power (watts): 10 More
Type: R10W | Voltage (V): 12 | Socket: BA15s | Bulb: Konventionell | P...
€18,94 €15,65
HELLA Lens indicator/position light P21W/C5W, with screws - 2 pieces
HELLA
Version: With bolts | Light function: with position light, with turn signal light | Test mark: E1 42712, ECE | Bulb: P21W, C5W | Installation location... More
Version: With bolts | Light function: with position light, with turn s...
€33,15 €27,40
Valve hydraulic pump John Deere 1550 - 4960
€99,75 €82,44 €91,77 €75,84
You save 8%
MAHLE Alternator 14 V / 55 A, flange 56 mm, pulley-Ø 87 mm, form B
MAHLE
Flange size (mm): 56,0 | Additional information: Dust-tight | Installation angle (°): 0 | Belt width (mm) / type: 15,2 | Nominal values (V / A): 14 /... More
Flange size (mm): 56,0 | Additional information: Dust-tight | Installa...
€234,03 €193,41 €140,16 €115,84
You save 40%
Internal plate 4wd 1,5 mm, inner 79,5 mm, outer 141 mm
Version: thickness = 1,5 mm inner = 79,5 mm outer = 141 mm More
Version: thickness = 1,5 mm inner = 79,5 mm outer = 141 mm
€44,34 €36,64 €40,79 €33,71
You save 8%
External plate thickness 2,3 mm, inner 168 mm, outer 195 mm, 6 teeth
Version: thickness = 2,3 mm inner = 168 mm outer = 195 mm 6 teeth More
Version: thickness = 2,3 mm inner = 168 mm outer = 195 mm 6 teeth
€34,41 €28,44 €31,66 €26,16
You save 8%
External plate 1,5 mm, inner 99 mm, outer 152 mm, 6 teeth John Deere
Version: thickness = 1,5 mm inner = 99 mm outer = 152 mm 6 teeth More
Version: thickness = 1,5 mm inner = 99 mm outer = 152 mm 6 teeth
€40,51 €33,48 €37,27 €30,80
You save 8%
Internal plate Hi-Lo 1,6 mm, inner 92,8 mm, outer 133,2 mm, 45 teeth
Version: thickness = 1,6 mm inner = 92,8 mm outer = 133,2 mm 45 teeth More
Version: thickness = 1,6 mm inner = 92,8 mm outer = 133,2 mm 45 teeth
€41,72 €34,48 €38,38 €31,72
You save 8%
LUK Thrust bearing with housing 49,5 x 93,5 mm John Deere 820 - 3350
LUK
Dimensions (mm): 49.5 x 93.5 More
Dimensions (mm): 49.5 x 93.5
€162,26 €134,10 €149,28 €123,37
You save 8%
LUK Clutch plate 280TZFN 22,3 x 25,8 mm, 15 splines John Deere
LUK
Dimensions (mm): 22.3 x 25.8 15 grooves | Material specifications: Organic clutch lining More
Dimensions (mm): 22.3 x 25.8 15 grooves | Material specifications: Org...
€386,62 €319,52 €355,69 €293,96
You save 8%
LUK Single clutch 330DGVM 35 x 38 mm, 23 splines John Deere 840 - 2650
LUK
Dimensions (mm): 35 x 38 23 grooves | Flywheel dimension (mm): 21 More
Dimensions (mm): 35 x 38 23 grooves | Flywheel dimension (mm): 21
€758,34 €626,73 €697,67 €576,59
You save 8%
Single clutch XN 280 35 x 38 mm, 23 splines John Deere 830 - 2250
Additional information: Made in Germany | Dimensions (mm): 35 x 38 23 grooves | Flywheel dimension (mm): 56 More
Additional information: Made in Germany | Dimensions (mm): 35 x 38 23 ...
€675,08 €557,92 €621,07 €513,28
You save 8%
Release bearing complete with sleeve Ø 57 mm John Deere 820 - 2250
€178,54 €147,55 €164,26 €135,75
You save 8%
Alternator 12 V / 95 A, pulley Ø 87 mm, Case IH, John Deere
Mounting L / d / R (mm): 82,0 / 8,2 / 86,0 | Nominal voltage (V): 12 | Pulley spacing (mm): 27,0 | Belt width (mm) / type: 15,2 | Form: B | Charging c... More
Mounting L / d / R (mm): 82,0 / 8,2 / 86,0 | Nominal voltage (V): 12 |...
€177,91 €147,03 €163,68 €135,27
You save 8%
Alternator 14 V / 55 A, pulley-Ø 87 mm, flange 56 mm John Deere
Installation angle (°): 0 | Belt tension hole Ø / R (mm): M8 / 84,5 | Pulley spacing (mm): 27,0 | Form: B | Nominal values (V / A): 14 / 55 | Belt w... More
Installation angle (°): 0 | Belt tension hole Ø / R (mm): M8 / 84,5 ...
€188,23 €155,56 €173,17 €143,12
You save 8%
HELLA Alternator 14 V / 65 A, pulley Ø 82 mm, 1 groove, Fendt, John Deere
HELLA
Nominal values (V / A): 14 / 65 | No. of grooves: 1 | Charging current (A): 65 | Nominal voltage (V): 14 | Additional information: With pulley | Pulle... More
Nominal values (V / A): 14 / 65 | No. of grooves: 1 | Charging current...
€384,41 €317,69 €296,18 €244,78
You save 23%
HELLA Alternator 14 V, 33 A, pulley Ø 92 mm, 1 groove
HELLA
Nominal values (V / A): 14 / 33 | No. of grooves: 1 | Charging current (A): 33 | Nominal voltage (V): 14 | Additional information: With pulley | Pulle... More
Nominal values (V / A): 14 / 33 | No. of grooves: 1 | Charging current...
€359,31 €296,95 €276,84 €228,79
You save 23%
FEBI Feed pump 2 hole, 45 mm, flange 30 mm, thread 10x1 John Deere
FEBI
To fit as: John Deere 820, 920, 1020, 1120, 2020, 2120, 3020, 3120, 830, 930, 1030, 1130, 1630, 1830, 2030, 2130, 3030, 3130, 840, 940, 1040, 1140, 18... More
To fit as: John Deere 820, 920, 1020, 1120, 2020, 2120, 3020, 3120, 83...
€55,76 €46,08 €48,48 €40,07
You save 13%
BOSCH Starter motor 12 V, 3,0 kW, 10 teeth, Ø 82,5 mm, clockwise
€446,52 €369,02 €430,04 €355,41
You save 4%
Showing 97 - 144 of 545

John Deere 1850 parts, from clutch to track rod

The John Deere 1850 is the kind of tractor you can still do a lot on yourself. Changing a clutch, swapping an alternator or resetting the toe-in can all happen in your own workshop. For those jobs this page holds more than 500 John Deere 1850 parts from GRANIT, HELLA, LuK, Wabco and MAHLE.

Splitting for a clutch

For the clutch there are single clutch pressure plates and clutch plates, among them parts from LuK. Once the tractor is split, replace the pressure plate and clutch plate together and take a good look at the release bearing and flywheel. If the flywheel shows blue heat marks or scoring, have it skimmed before the new plate goes on. A new plate against a damaged flywheel will judder and wear quickly. Check too that the plate slides freely on the input shaft splines. A smear of copper grease helps, but too much ends up on the friction lining.

Steering and front axle

Track rods and ball joints keep the front wheels pointing the right way. The track rods come in several lengths, so measure the old rod centre to centre before ordering. Bushes, including bushes for the lower link strut, and washers complete the chassis side of things.

Engine, cooling and charging

Alternators and starter motors keep the 1850 starting and the battery charged. For cooling there are water pumps and V-belts. Then there is the small stuff every repair needs: gaskets, for instance for the lift housing, seals for the feed pump, O-rings for the master brake cylinder, sealing rings and hose sold by the metre.

A tip on the alternator V-belt. Too tight and it wears the bearings in the alternator and water pump, too slack and it slips and squeals. Press on the belt with your thumb midway between two pulleys and it should give by roughly a centimetre. Check the tension again after the first day's work, because a new belt stretches a little at first.

Type plate and part numbers

The type plate on the 1850 gives the model and serial number. John Deere uses its own part numbers for many components, which you will often find on the old part or in the workshop manual. With both pieces of information there is no guesswork in picking the right part.

More from the 50 series

The 1850 belongs to the John Deere 50 series. Two other models from that range have their own page with their own parts: the John Deere 1550 and the John Deere 4050. If one of them shares the shed with your 1850, you will find what is listed for that model there. Every other model from the brand is under John Deere parts.
